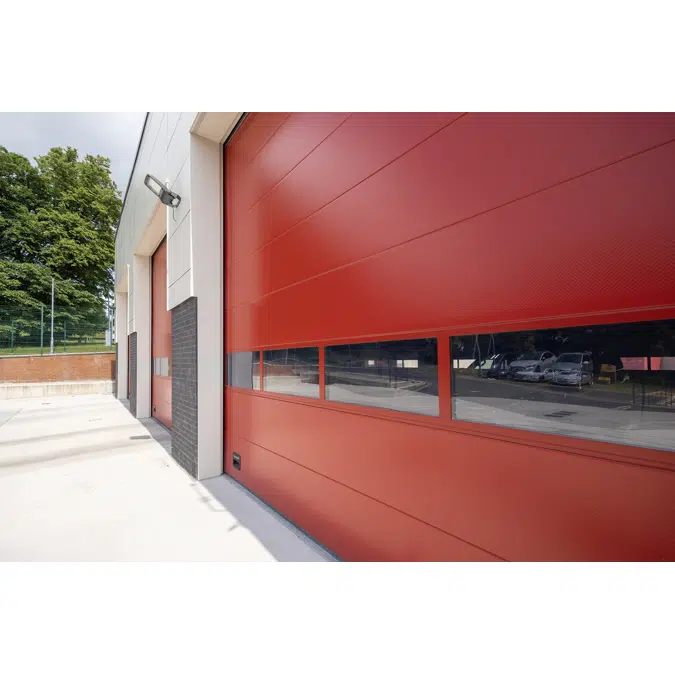

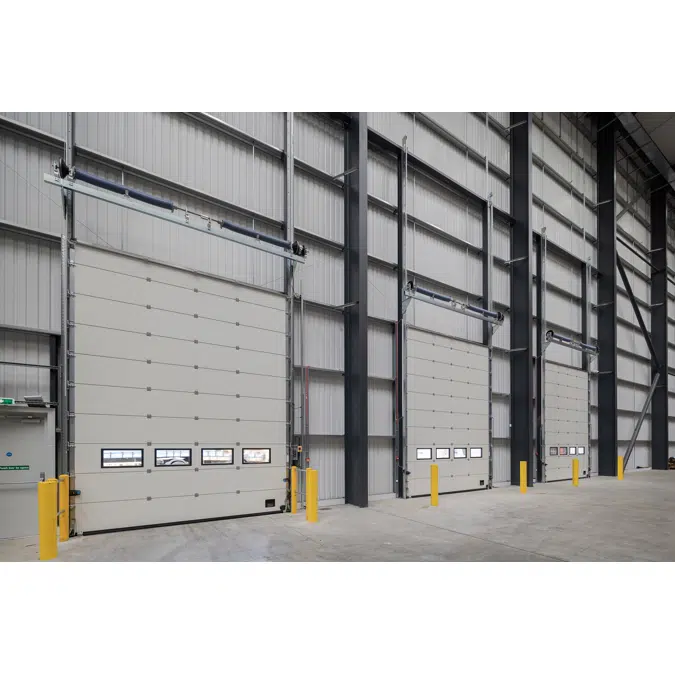

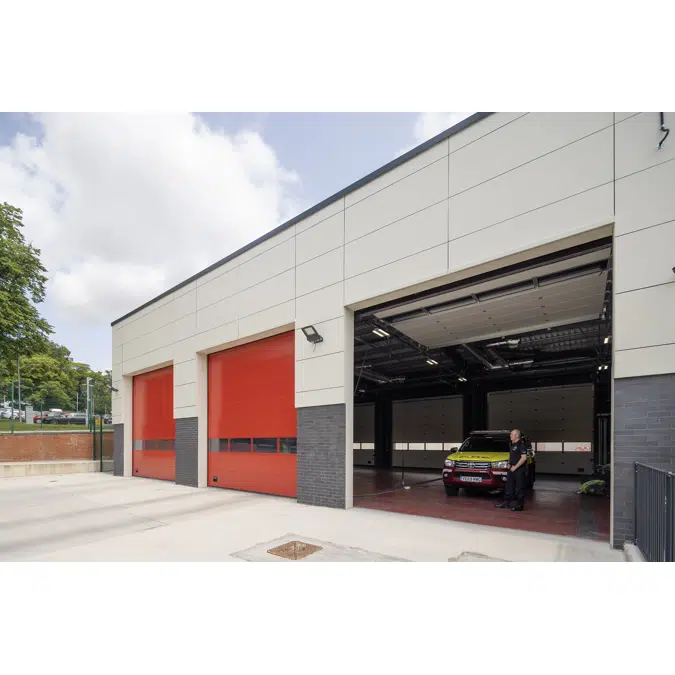

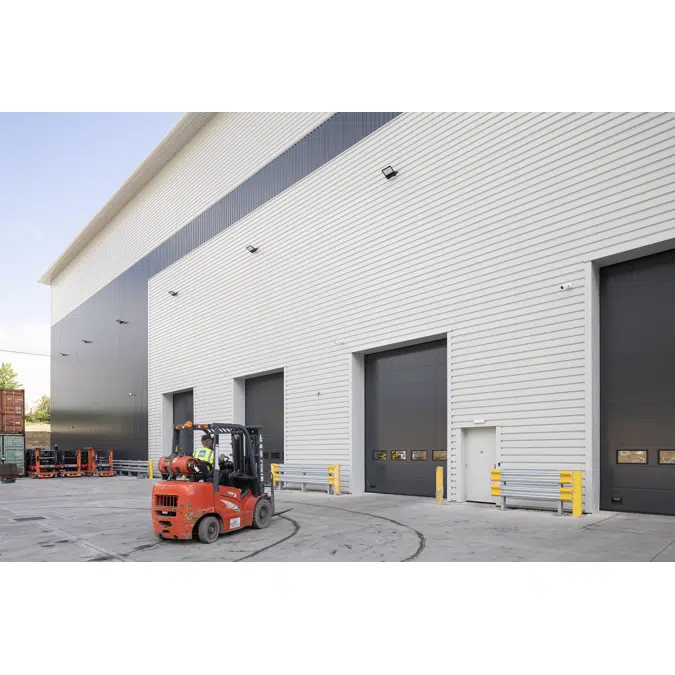

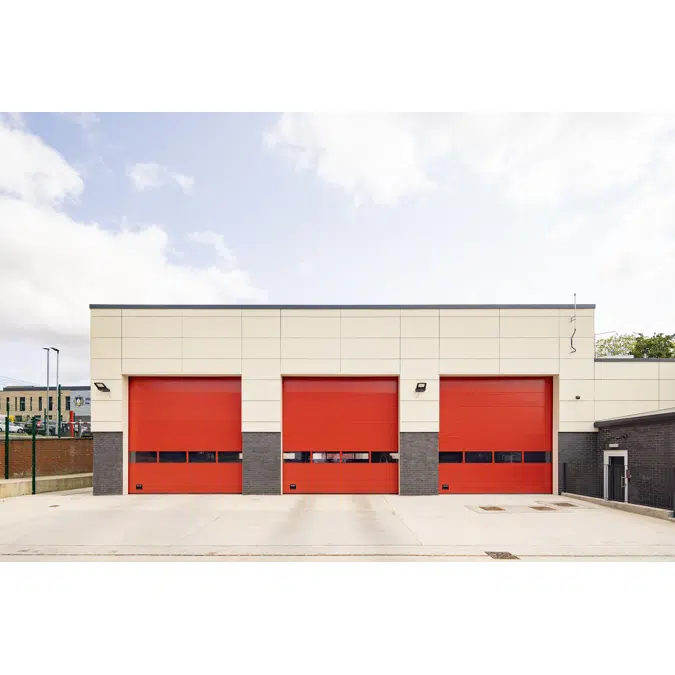

Crawford OH1042S Speed Door

Features

• Max size: (W x H): 5000 x 5000 mm
• Panel thickness: 42 mm
• Panel material: Diamond grid
• Filling: CFC-free polyurethane, flame retardant DIN 4102-B2
• Weight: Steel: 13 kg/m2
• Color outside: 13 standard RAL colors
• Color inside: RAL 9002
• Track types:
  • Standard: SL
  • Optional: HL, VL

• Windows: Optional: DARP, TARP, DAOP, ALRB, ALBS, Framed section
• Passdoor: Not possible
• Electrical operation: Optional: Automated operation, Access control, Safety functions

Performance

• Opening/closing speed: Opening ≈1,0 m/s, Closing 0,7 m/s
• Life time expectations: Door: 200.000 door cycles or 10 years, if service/replacement program is performed. Springs: 20.000 door cycles, optional max.100.000 depending door configuration
• Resistance to wind load, EN12424:
  • o Insulated panel sections: Class 3 (DLW ≤ 4250), Class 2 (4250 < DLW), (Higher classes on request)
  • o Framed sections nr. 2 and 3: Class 3 (DLW ≤ 3650), Class 2 (3650 < DLW ≤ 4550)
• Thermal transmittance, EN12428:
  • 1,0 W/(m²·K) full panel
  • (Door size 5000 x 5000 mm)
  • Thermal calculations on exact door sizes and configurations are available on request
• Resistance to water penetration, EN12425: Class 3
• Air permeability, EN12426: Class 3
• Acoustic insulation, EN ISO 10140-2: R - 25 dB
