Itaca KR

ITACA KR

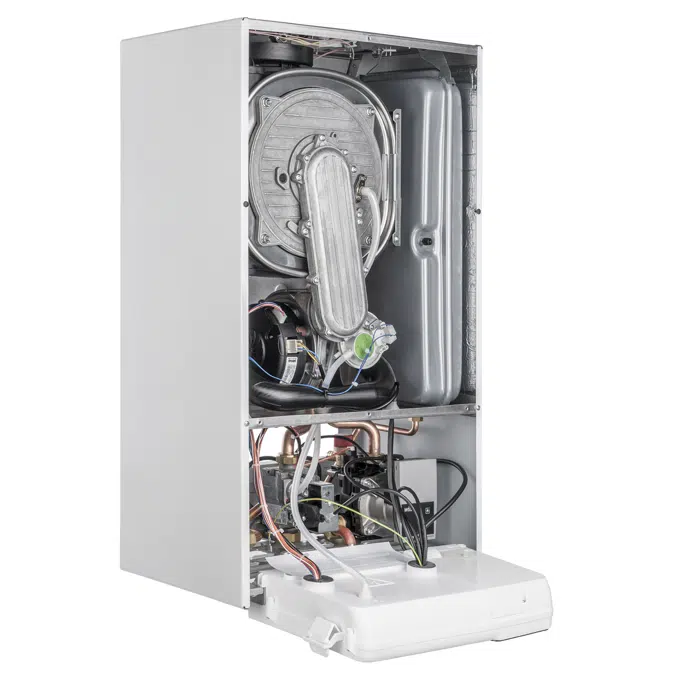

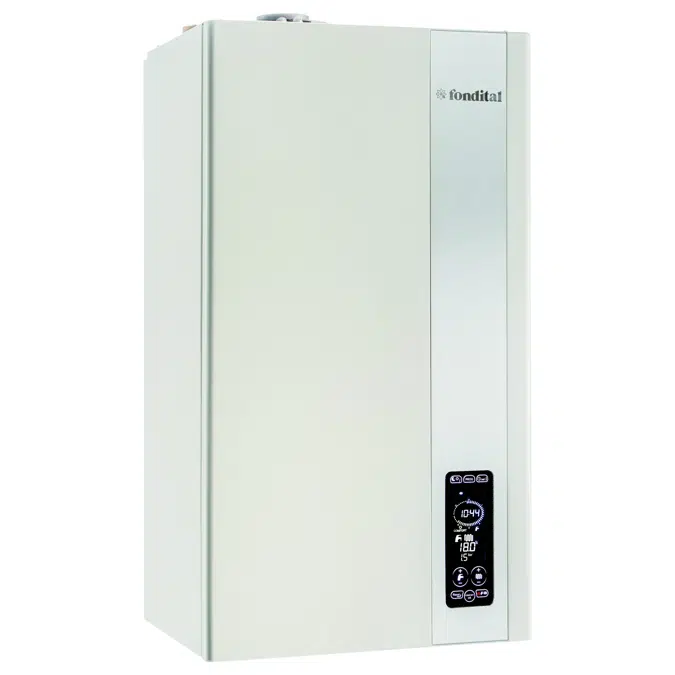

The Itaca KR is a wall-hung condensing boiler for heating only, electronically arranged for connection to an external water heater. The boiler uses condensing technology, which allows it to lower consumptions, boost performance, and reduce emissions of pollutants.

PLUS
- Modulation ratio 1:9
- Touch screen user interface
- Controls to manage 2 different types of solar thermal systems fitted as standard
- Room temperature can be set from the boiler if an external probe is installed
- 26-plate DHW heat exchanger

Specifikace

FEATURES
- Thermopolymer-covered stainless steel heat exchanger
- Fully pre-mixed burner
- Modulating gas valve with constant air-to-gas ratio
- Variable-speed combustion fan
- Modulating pump with air-purging device
- 10-litre heating expansion vessel
- Ready for connection to a GSM modem for remote switching on and off and malfunction alarm (optional equipment)
- Multifunctional relay for connection to systems with zone valves or to solar systems or to remote boiler shutdown alarms
- Installation flexibility thanks to IPX5D electrical protection degree
- Efficiency rating according to 92/42/EEC: ★★★★
- NOx emission class (EN 297):5
- Boiler hydraulic replacement kit available as optional equipment
- Wide modulation range 1:9
- Electronic ignition, flame detection via ionization
- By-pass
PREPARED FOR CONNECTION TO
- External probe
- Open Therm Remote Control
- Zone management board for high and low temperature heating
- 2 ambient probes
- GSM modem for remote switching on and off and malfunction alarm (optional equipment)
- External water heater for domestic hot water production
- Solar board

FEATURES
- CH water flow rate electronic control
- Thermopolymer-covered stainless steel heat exchanger
- Fully pre-mixed burner
- 10-litre heating expansion vessel
- Thermoregulation with external probe (optional)
- Modulating pump with air-purging device
- DHW “Comfort” function: ★★★
- Automatic by-pass
- Double circuit filling system: automatic or manual

Technická specifikace

Jedinečná ref. hodnotaitaca_kr
Skupina výrobkůBoilers
Skupina produktůWall-hung and floor-standing boilers
TypObjekt
Datum zveřejnění2019-09-17
Číslo vydání1
Výška (mm)750
Šířka (mm)420
Hloubka (mm)315

Odkazy

URL produktuhttps://www.fondital.com/ww/en/itaca_kr_high_efficiency
Pokyny k instalacihttps://www.fondital.com/media/files/attachments/260_IST_ITACA_CONDENSING_ERP_GAR_PARA_AEE_EN_compressed.pdf
Technický popishttps://www.fondital.com/media/files/attachments/260_IST_ITACA_CONDENSING_ERP_GAR_PARA_AEE_EN_compressed.pdf

Související

Hlavní materiálHliník
Navrženo vItálie
Vyrobeno vItálie

Klasifikace

Kategorie objektu BIMHVAC - Bojlery
Klasifikace IFCBojler
Kód ETIMEC000392
Název ETIMInstantaneous water heater
Název UNSPSCBoilers
Kód UNSPSC401020
Kód Uniclass 2015Pr_60_60_08
Popis Uniclass 2015Boilers
Kód CSI MasterFormat 201423 52 16
Název CSI MasterFormat 2014Condensing Boilers
Číslo OmniClass23-33 11 13
Název OmniClassCondensing Boilers
Kód CSI UniFormat IID3020
Název CSI UniFormat IIHeat Generating Systems
