Kardex Lektriever File Drawer Vertical Carousel

Vertical Electric Carousel Filing Cabinet

This vertical carousel is ideal for office and warehouse storage solutions. Simply select your desired width and number of carriages to set the size of the unit. Additional options such as overhead lights and shelf types can be adjusted as well.

Standard sizes
Widths: 83 55/64", 103 69/128", 116 5/256", 128 179/256"
Depths: 47 41/128"
Heights: 79 187/256", 84 83/128", 90 143/256", 95 123/256", 101 97/256", 107 37/128", 113 49/256", 118 31/256", 124 5/256", 128 215/256", 134 109/128", 140 3/4", 145 43/64", 151 37/64", 156 1/2", 162 105/256", 168 79/256", 173 59/256"

Lektriever Vertical Carousel Filing solution ideal for business, office, and manufacturing.
Powder Coated Steel construction
Narrow, Standard, Wide, and Extra-Wide widths
11-28 carriers per unit

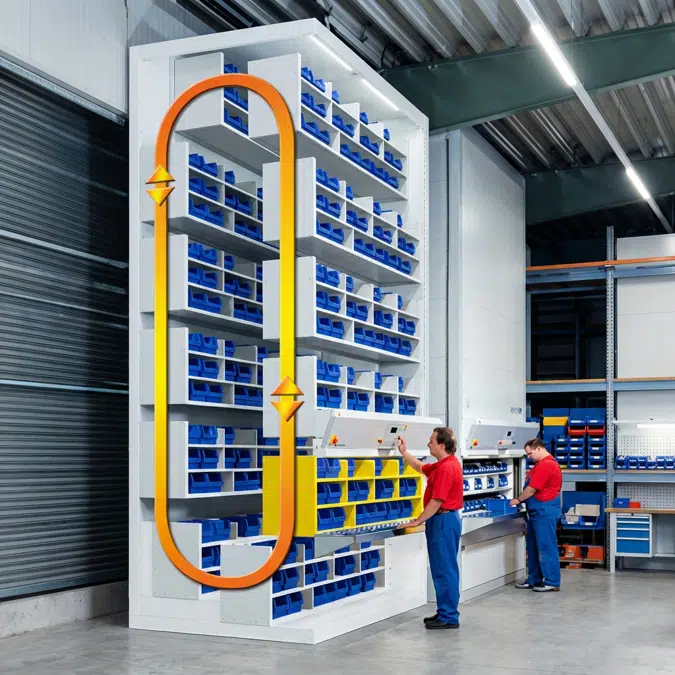

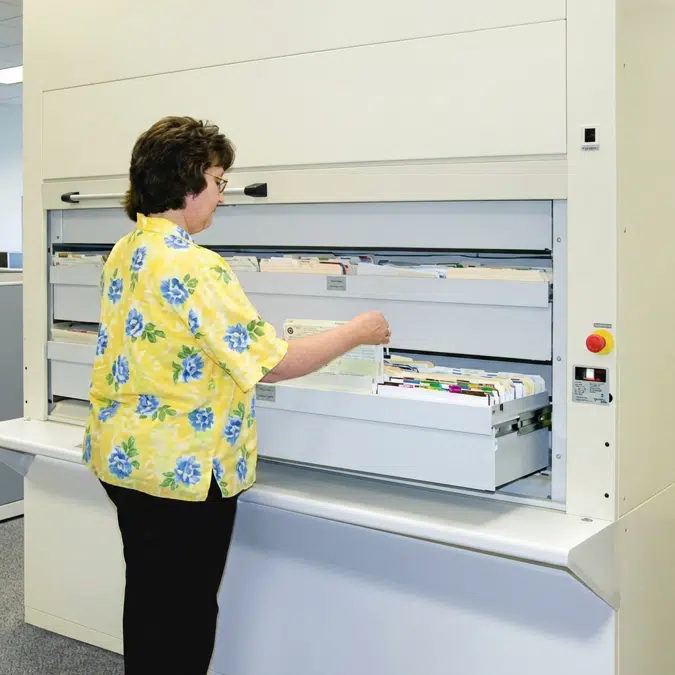

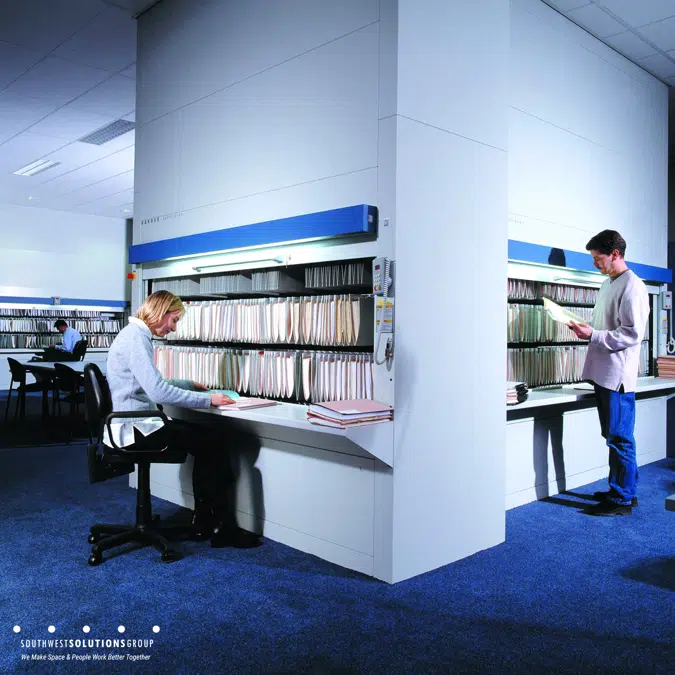

The vertical carousel filing system is a specialty high-density storage solution with a rotating carousel of file drawers. Ideal for offices and manufacturing, the individual carriers can be customized with drawers, or multi-media trays. To use this model, simply select a from the available widths (narrow, standard, wide, and extra-wide), and the number of carriers desired (11-28). Please note that the listed weight is an estimation on a fully-loaded unit of that size.

Specifikace

Carousel Info
- Access Opening: ~20" clear height
- Worktop Height: ~39 1/2"
- Cycle Speed: 7.0 inches/second
- Avg. Access Time: 11 seconds (1/4 rotation)
- Noise Level: < 60 db(A)
Electrical LoadsIncluded power connector includes:
- Voltage: 110 v
- Apparent Load: 150 KVA
- AMP Draw: 16 AMPs
- Avg. Power Consumption: 2.0 KVA
- Breaker cannot be wired to GFI circuitry
Structural Loads
- Weight Capacity: 4070kg (8973 lbs)
- Max Imbalance Load: 300 kg (660 lbs)
- Please note that the listed "ACTUAL_Weight" is an estimation based on a fully-loaded unit of that size.

Technická specifikace

Jedinečná ref. hodnotaSSG_Carousel_Vertical_File_PCS
Skupina výrobkůEducation
Skupina produktůFlex Space, Classroom, Lockers, Casework
TypObjekt
Datum zveřejnění2021-05-22
Číslo vydání1

Odkazy

URL produktuhttps://fetchbim.com/product/641/ssg-carousel-vertical-file-pcs
Technický popishttps://app.fetchbim.com/Family/54018488-5a8b-4cc6-9f5b-785342ce70c7/File/PDF-SpecManual

Související

Hlavní materiálOcel lakovaná

Klasifikace

Kategorie objektu BIMNábytek - Police & Skladování
Klasifikace IFCNábytek
Kód CSI MasterFormat 201441 51 13
Název CSI MasterFormat 2014Automatic Storage/Automatic Retrieval Systems
Číslo OmniClass23-23 17 00
Název OmniClassMaterials Handling
Kód CSI UniFormat IIE10
Název CSI UniFormat IIEQUIPMENT
