    ViewSonic

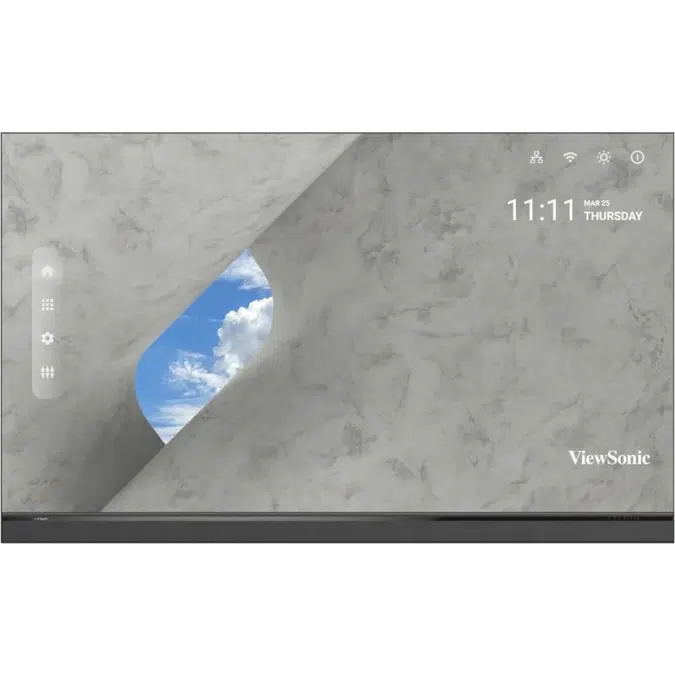

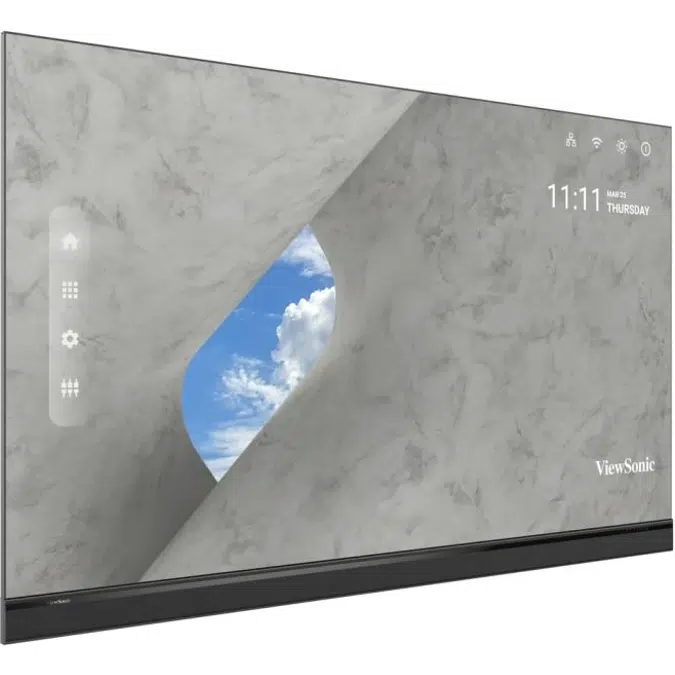

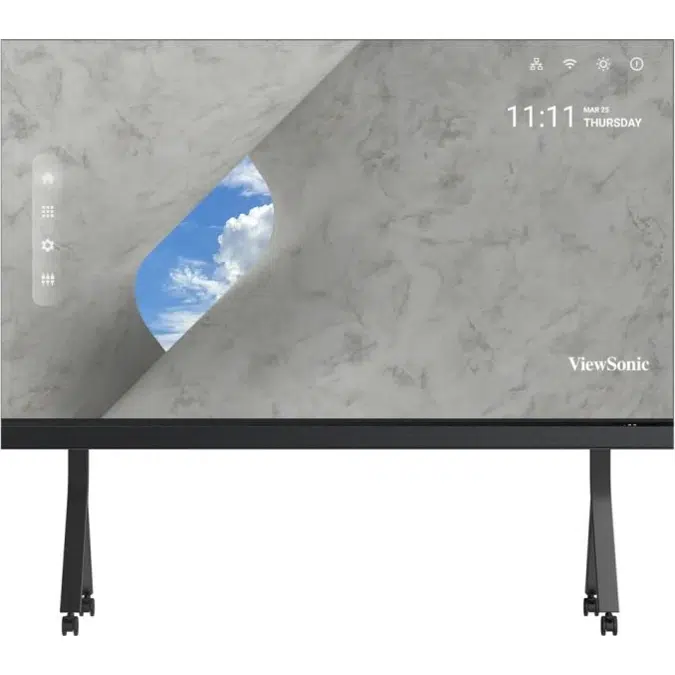

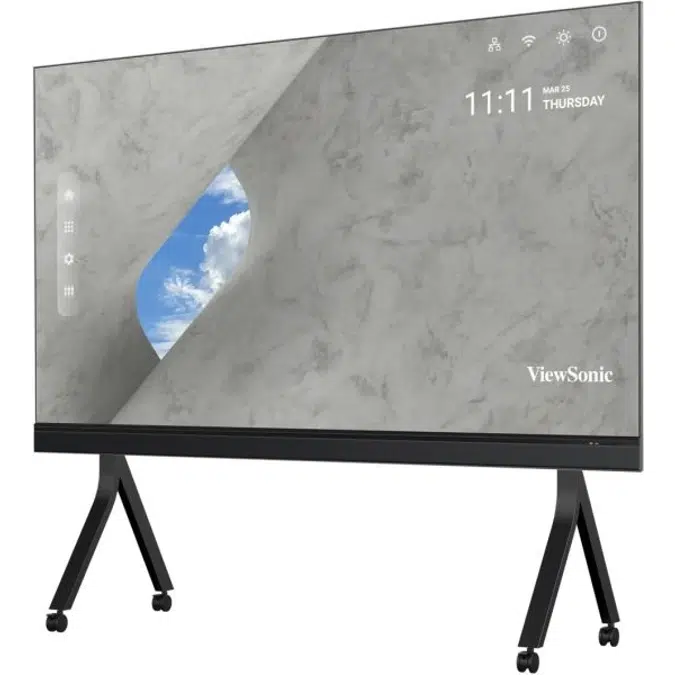

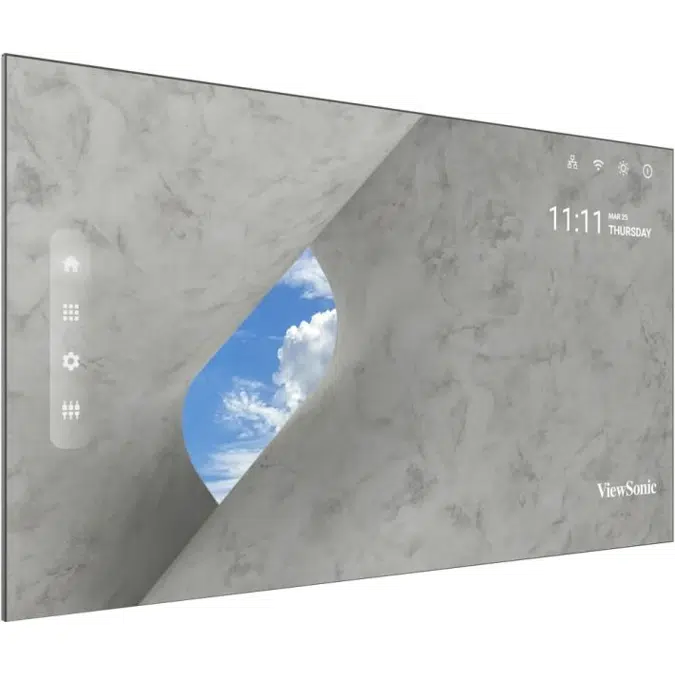

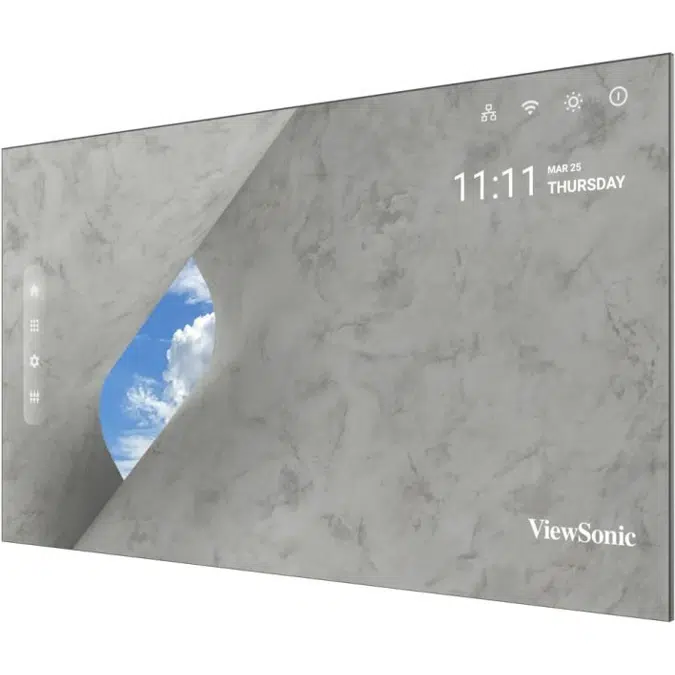

    LDM136-151 136” All-in-One Direct View LED Display

    OVERVIEW

    The ViewSonic LDM136-151 is a cutting-edge 136” All-in-One LED display designed to elevate visual and auditory experiences in high-end corporate and educational environments. Boasting an impressive 600-nit brightness, a high 6,500:1 contrast ratio, and a 3,840Hz refresh rate, complemented by dual 30W speakers, it ensures exceptional clarity and immersive audio for every video, presentation, or lecture. The All-in-One display features a user-friendly design for a simplified installation experience. It also utilizes the Glue-on-Board (GOB) surface treatment technology, achieving an IP54 rating for enhanced protection from collisions, dust, and moisture. Featuring a 31mm ultra-slim design and 6mm thin bezels, the display offers a premium aesthetic and ensures an engaging viewing experience. Additionally, the detachable control box enables it to achieve a nearly 99% screen-to-body ratio, seamlessly integrating into any space while providing easy accessibility. Moreover, it supports PIP/PBP display and wireless casting capabilities, offering more flexibility for collaboration. Adding to its convenience, compatibility with AV control systems enables IT staff to remotely configure the display.

    • 136" seamless large screen with high brightness and powerful speakers
    • All-in-One integration for effortless installation
    • Anti-collision, dustproof, and moisture-proof with GOB surface treatment
    • Detachable system control box for a minimalist appearance and easy access
    • Premium aesthetics with an ultra-slim and bezel-free design
    • Capable of PIP/PBP display, wireless casting, and LAN control
    Specifikace
    • Screen Size: 136"
      Display Area (mm): 3000 (H) x 1687.5(V)
      Native Resolution: 1920x1080
      Panel Technology: Direct view LED
      LED Package Type: SMD 3 in 1 (GOB)
      Bonding Wire: Copper
      Pixel Pitch (mm): 1.56
      Brightness (max.): 600 nits (100 levels adjustable)
      Contrast Ratio (typ.): 6500:1
      Orientation: Landscape
      Viewing Angles (typ.): H = 170, V = 170
      LED Lifetime (typ.): 100,000 Hours
      Local Storage: Total 32GB
      (26GB available storage)
      Embedded OS: Android 9.0
      Resolution Support: VGA(640 x 480) to 4K(3840 x 2160@60hz)
      HDTV Compatibility: 480p, 576p, 720p, 1080p, 2160p
      Horizontal Frequency: 31K-94kHz
      Vertical Scan Rate: 56-85Hz

    Technická specifikace
    • Jedinečná ref. hodnotaviewsonic-ldm136-151-all-in-one-direct-view-led-display
    • Skupina výrobkůDisplays
    • Skupina produktůDirect View LED Displays
    • TypObjekt
    • Datum zveřejnění2025-09-26
    • Číslo vydání1
    Související
    • Navrženo vTchaj-wan
    • Vyrobeno vČína
    Klasifikace
    • Kategorie objektu BIMElektronika - Vizuální technika – televizory
    • Klasifikace IFCObjekt
    • Kód Uniclass 2015Pr_75_75_15_24
    • Popis Uniclass 2015Display screen monitors
    • Kód CSI MasterFormat 201427 41 13
    • Název CSI MasterFormat 2014Architecturally Integrated Audio-Video Equipment
    • Číslo OmniClass23-37 19 13
    • Název OmniClassLiquid Crystal Display (LCD) Video Monitors
