Z1805-12B 12" Round Industrial High-Capacity Sanitary Floor Drain

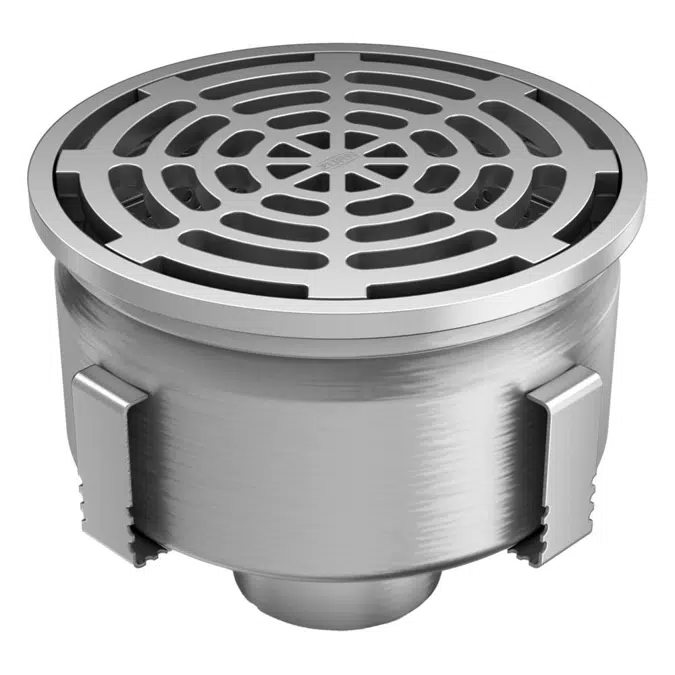

ZURN Z1805-12B 12 [305] Diameter X 6 [152] Deep, 12 gauge, type 304 stainless steel, industrial high-capacity sanitary floor drain features seamless drain body construction and sloped sump bottom, loose set extra heavy-duty slotted grate (1/2 [13] thick plate with 1/2 [13] anti tilt lugs) with finger holes, 1-1/16 [27] top frame, perforated removable sediment basket with lift handle, pre-pour stabilizing concrete anchor tabs, and bead blasted finish.

Features:

• Optimized open surface area of extra heavy-duty grate and high-capacity drain body and sediment basket for free-flowing performance
• Sloped bottom design minimizes risk of standing water and promotes sanitary drainage
• 12 ga. seamless drain body construction reduces potential bacteria-harboring points
• Load rated for heavy equipment traffic per ASME A112.6.3 - 7,500 to 10,000 lb.
• Available in 304 or 316 stainless steel
• Choose between extra heavy-duty slotted or perimeter gap grate, medium-duty perforated grate, 3/4 or 1/2 grate
• Available with 2", 3", 4" or 6" No-Hub (Schedule 10) or Butt-Weld (Schedule 40) outlets
• Comes standard with perforated removable sediment basket with lift-handle for ease of use
• Configure with EZ Magnetic Lock Secondary Strainer for added drain line protection
• Meets USDA guidelines
