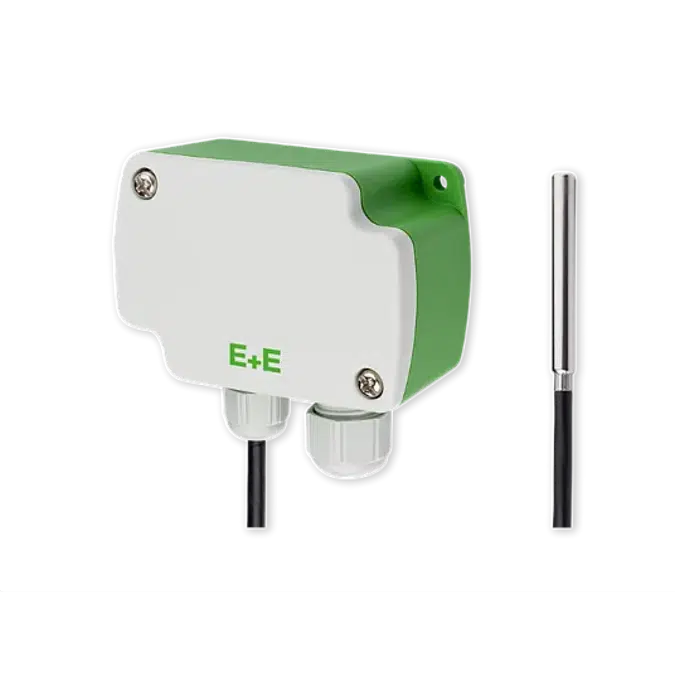

E+E EE471 - Remote Temperature Probe (Flexible Cable Sensor)

The EE471 temperature sensor with remote probe reliably measures the temperature (T) in applications with space restrictions and is optimized for building automation, HVAC and process control.

The measured data is available on the voltage or current output, as well as on the RS485 interface with Modbus RTU. Alternatively, the EE471 features a passive output with a wide choice of temperature sensing elements.

The design with remote probe is appropriate for installations where electronic shall be protected against high temperature or strong vibrations. The innovative immersion well is dedicated for measurement in liquids.

An optional adapter and the free EE-PCS Product Configuration Software facilitate the setup and adjustment of the EE471.

Enclosure

• IP65 / NEMA 4X
• External mounting holes
• Bayonet screws Probe
• Product specific information printed on the cable
• IP67 cable outlet (star pressing of the sensor sleeve)
