Burglary resistance Hinged door RC4 - Single and double

Burglary resistance EN 1627-1630: class RC4 (mortared frame or bolted frame).

BIM content: the Revit file includes ready-to-use single and double leaf RC4 types, with fire resistance configurations from EI0 to EI2 120.

Possible combinations:

• Fire resistance
• Burglary resistance
• Acoustic
• Bullet-proof
• Blast-proof
• Electromagnetic
• Anti-panic
• Smoke tightness
• Thermal insulation
• Air tightness
• Water tightness
• Wind resistance.

Basic performance features:

• Burglary resistance (EN 1627-1630): RC2 subject to conditions
• Frequency of use: Up to 1,000,000 open/close cycles (max. level) + durability of automatic closure: 200.000 cycles (C5)
• Mechanical resistance:
  • M4 (maximum normative level)
  • Up to M+7 (maximum level beyond the standards)
• Service life of the door: 15-year warranty on the door set

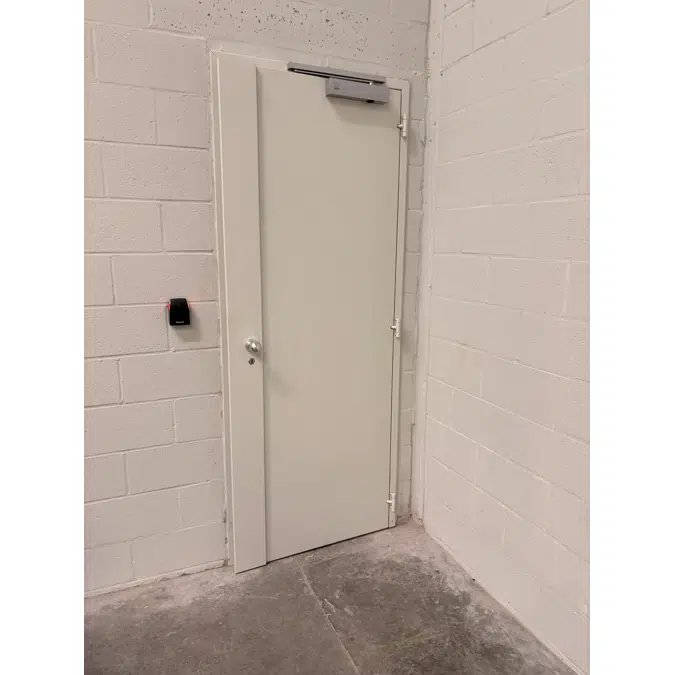

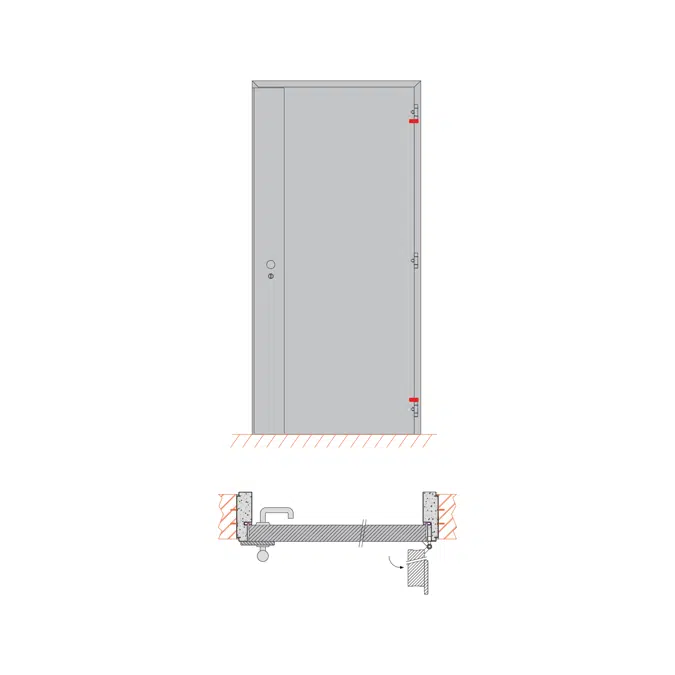

Dimension Single door:

• Max leaf: 1450 x 3035 (WxH). Min leaf: 730 x 600
• Max opening: 1560 x 3113 (WxH). Min opening: 840 x 678

From a leaf width of 1450 (opening of 1560) the maximum height of the leaf is limited to 4900 (opening of 4978)

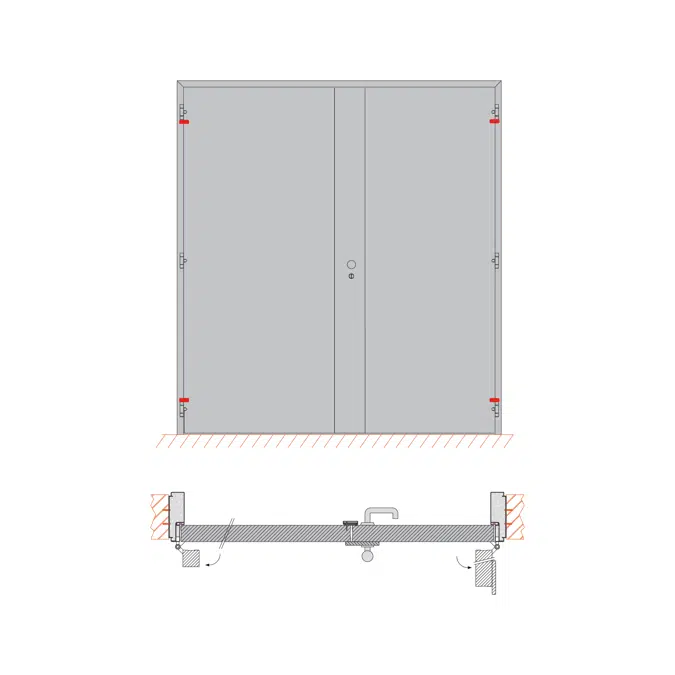

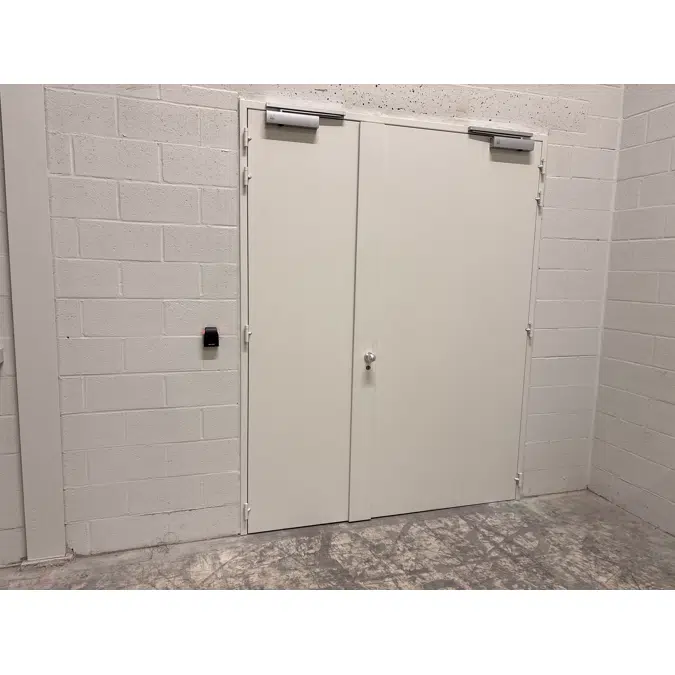

Dimension Double door:

• Max leaf: 1450 x 3035 (WxH). Min leaf: 400 x 900
• Max opening: 3020 x 3113 (WxH). Min opening: 920x978

From a leaf width of 1450 (opening of 1560) the maximum height of the leaf is limited to 4900 (opening of 4978)
