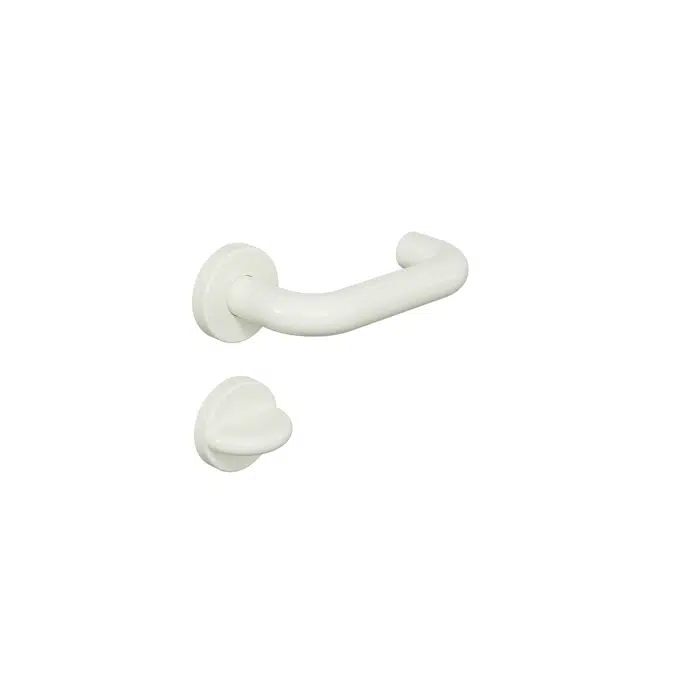

HEWI Vacant/engaged fitting

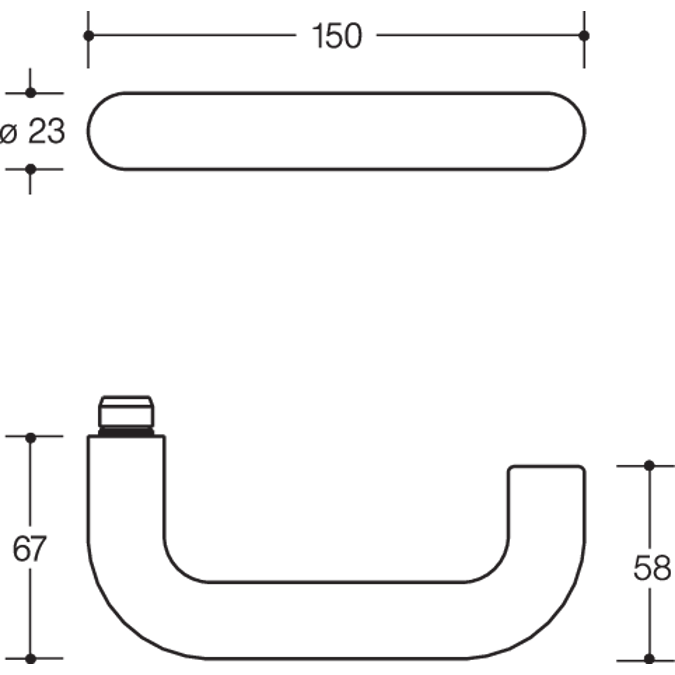

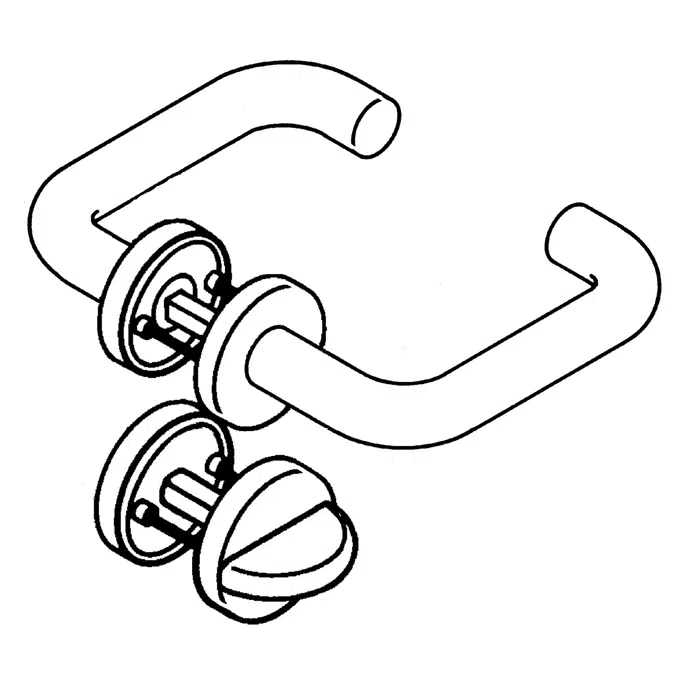

Vacant/Engaged fitting in R-technology with roses according to DIN 18255 and EN 1906 made of polyamide, high-polished surface, consisting of: Lever handle model 111.23R U-shaped made of high-quality polyamide with corrosion resistant steel insert, solid colour, diameter 23 mm, with stepped shoulder guide and groove, easily installed by latching the lever handle into the base parts pre-mounted on the door. The latching can be released using the dismantling tool. The lever handle meets the standards of EN 179 and DIN 18040. Roses: model 305.23... and 306.23NR roses substructure made of synthetic material-stainless steel composite, can be used for left and right-hand opening doors. Fixed rotating bearing of the lever handle with automatically latching all-round locking and 5 mm journal as maintenance-free plain bearing with elastic compensating area and second journal in the neck of the lever handle. Concealed, non-loosening screwed joint with M4 screw and sleeve combination as well as the pivot disappearing into the door leaf. WC version with emergency opening by means of square spindle or coin and occupancy disc (red/white indicator) on the outside. Rose cap, round, made of high-quality polyamide, solid colour, diameter 55 mm, 10.5 mm high, flat, 1.5 mm wall thickness. Designed and tested for the projects segment, user category to EN 1906 - Class 4 fitting with spindle 8 - 8.5 mm user category: Class 4 Durability: Class 7 Door weight: No classification specified Fire resistance: Class 0 Safety: Class 1 Corrosion resistance: Class 5 Burglary protection: Class 0 Design-type: U Sustainability: EPD Environmental Product Declaration

Teknisk specifikation

Unik ref.111R02-230
ProduktfamilieHardware
ProduktgruppeDoor fittings
TypeObjekt (enkelt objekt)
Udgivelsesdato2017-12-19
Udgavenummer1

Links

COBie-produktdatabladhttps://catalog.hewi.com/storage/downloads/HEWI_111R02_230_en.pdf
Produkt-URLhttps://catalog.hewi.com/en/p/111R02230
Monteringsvejledninghttps://catalog.hewi.com/storage/downloads/M3305-03.pdf
Licitationsoplysningerhttps://ausschreiben.de/integration/v2/catalog/hewi_baubeschlag/anr/111R02.230?integrationKey=1e2f1188-22c3-40dc-a0cc-7de947716377

Relateret

Materiale primærtPolyamid
Materiale sekundærtStål
Designet iTyskland
Fremstillet iTyskland

Klassifikation

BIMobject-kategoriDøre - Hardware
IFC-klassifikationDør
UNSPSC-navnDoors
UNSPSC-kode301715
Uniclass 2015-kodePr_30_36_59_25
Uniclass 2015-beskrivelseDoor lever handle sets
CSI MasterFormat 2014-kode08 06 71
CSI MasterFormat 2014-titelDoor Hardware Schedule
OmniClass-nummer23-17 11 11 25
OmniClass-betegnelseDoor Accessories
CSI UniFormat II-kodeC1020
CSI UniFormat II-titelInterior Doors
