LinkFix Stopend Panel

LinkFix Stopend Panel

LinkFix Stopend Panel

LinkFix Stopend Panel

LinkFix Stopend Panel

LinkFix stopend panels for construction joints – compliant with Eurocode 2 for toothed construction joints.
LinkFix controlled crack elements for creating controlled cracks in construction joints.

available in Revit 2023-2027 and as IFC

Specifikation

material:
bright steel (type S, V, VV) or galvanized Steel (type SRE)
area of application:
LinkFix stopend panels are used as lost formwork for construction joints.

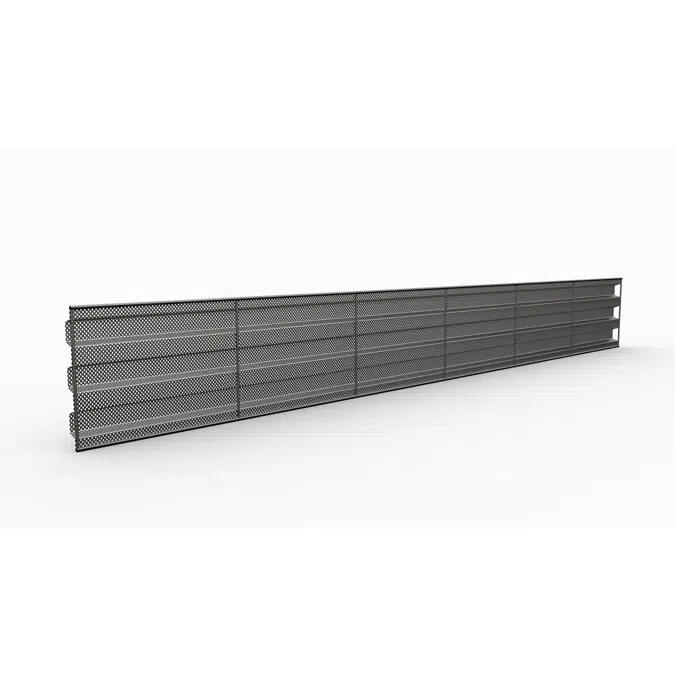

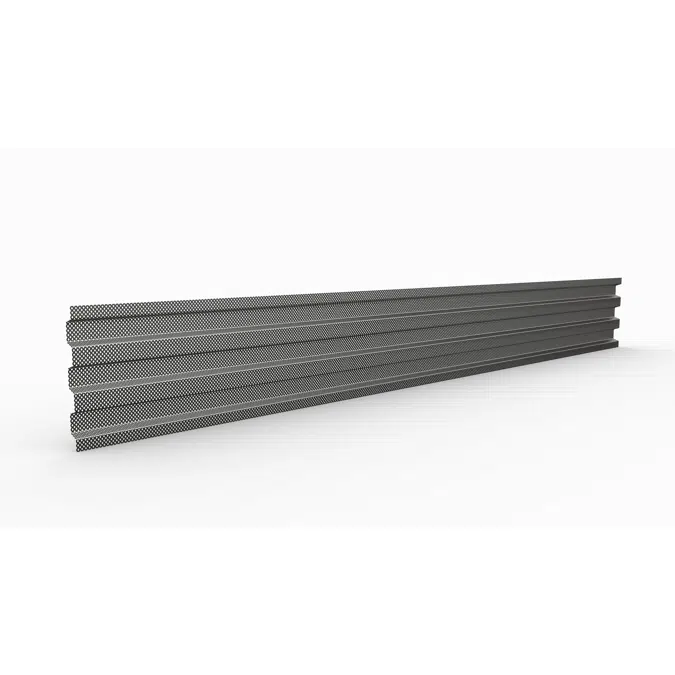

versions: LinkFix stopend panel (type S) formwork strip
- Art.-No. 070556: installation dimension 130mm
- Art.-No. 070558: installation dimension 160mm
- Art.-No. 070560: installation dimension 200mm
- Art.-No. 070562: installation dimension 250mm
- Art.-No. 070564: installation dimension 300mm
- Art.-No. 070566: installation dimension 400mm
- Art.-No. 070568: installation dimension 500mm
- Art.-No. 070470: installation dimension 600mm
- Art.-No. 070572: installation dimension 700mm

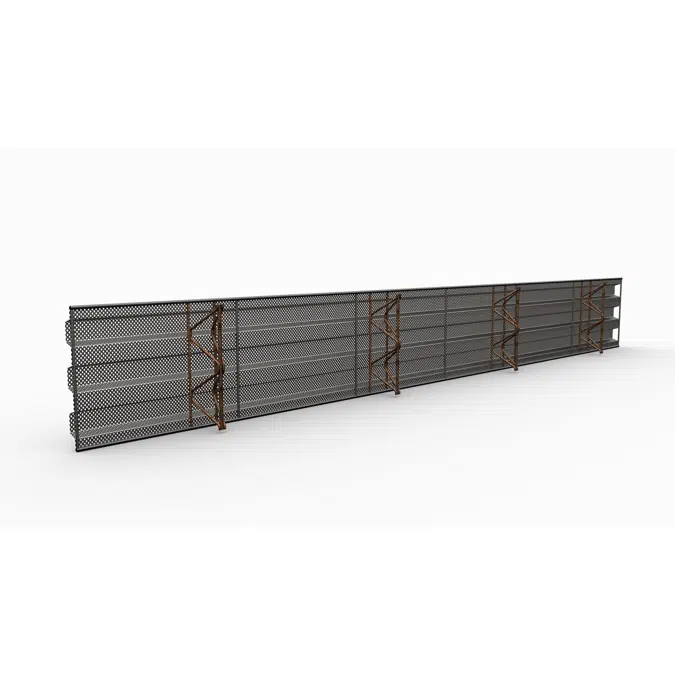

versions: LinkFix stopend panel (type V) braced
- Art.-No. 070576: installation dimension 130mm
- Art.-No. 070578: installation dimension 160mm
- Art.-No. 070580: installation dimension 200mm
- Art.-No. 070582: installation dimension 250mm
- Art.-No. 070584: installation dimension 300mm
- Art.-No. 070586: installation dimension 400mm
- Art.-No. 070588: installation dimension 500mm
- Art.-No. 070590: installation dimension 600mm
- Art.-No. 070592: installation dimension 700mm
- Art.-No. 070594: installation dimension 800mm

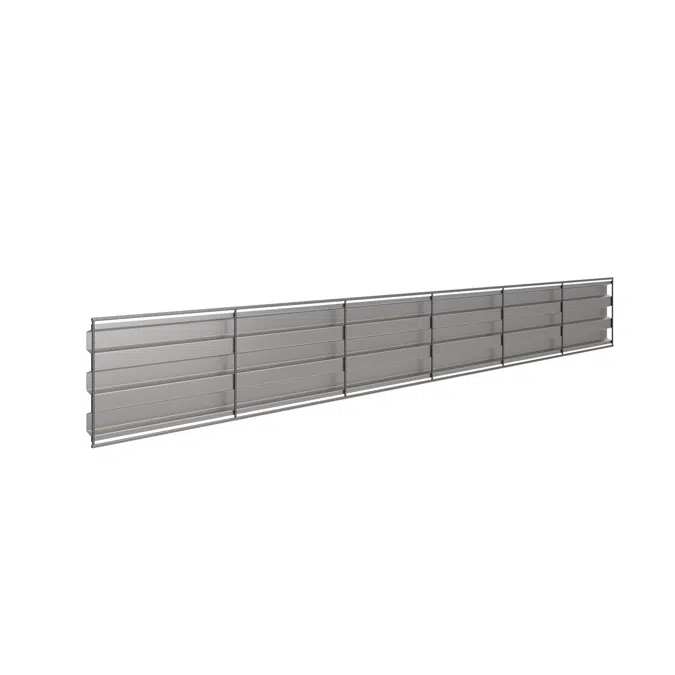

versions: LinkFix stopend panel (type VV) braced and reinforced
- Art.-No. 070576V: installation dimension 130mm
- Art.-No. 070578V: installation dimension 160mm
- Art.-No. 070580V: installation dimension 200mm
- Art.-No. 070582V: installation dimension 250mm
- Art.-No. 070584V: installation dimension 300mm
- Art.-No. 070586V: installation dimension 400mm
- Art.-No. 070588V: installation dimension 500mm
- Art.-No. 070590V: installation dimension 600mm
- Art.-No. 070592V: installation dimension 700mm
- Art.-No. 070594V: installation dimension 800mm
versions: LinkFix stopend panel (type SRE) crack-inducing element
- Art.-No. 070576S: installation dimension 130mm
- Art.-No. 070578S: installation dimension 160mm
- Art.-No. 070580S: installation dimension 200mm
- Art.-No. 070582S: installation dimension 250mm
- Art.-No. 070584S: installation dimension 300mm
- Art.-No. 070586S: installation dimension 400mm
- Art.-No. 070588S: installation dimension 500mm
- Art.-No. 070590S: installation dimension 600mm
- Art.-No. 070592S: installation dimension 700mm
- Art.-No. 070594S: installation dimension 800mm

Teknisk specifikation

Unik ref.linkfix-verzahnt
Udgivelsesdato2026-09-23
Udgavenummer1
