Record

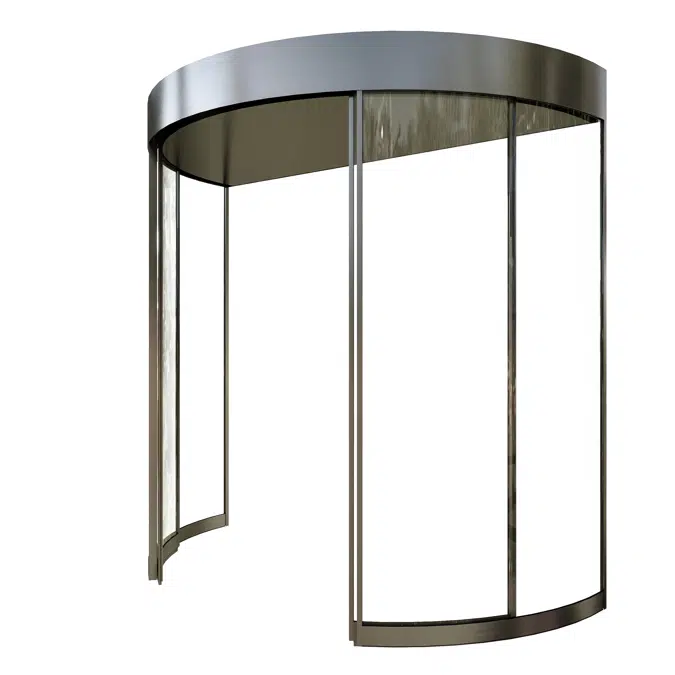

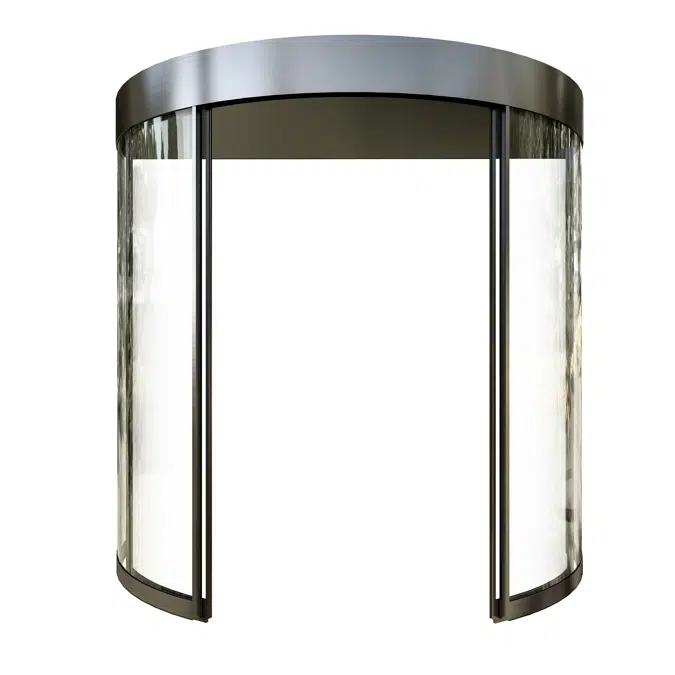

Sliding Door CURVED

Wall Hosted Revit Family

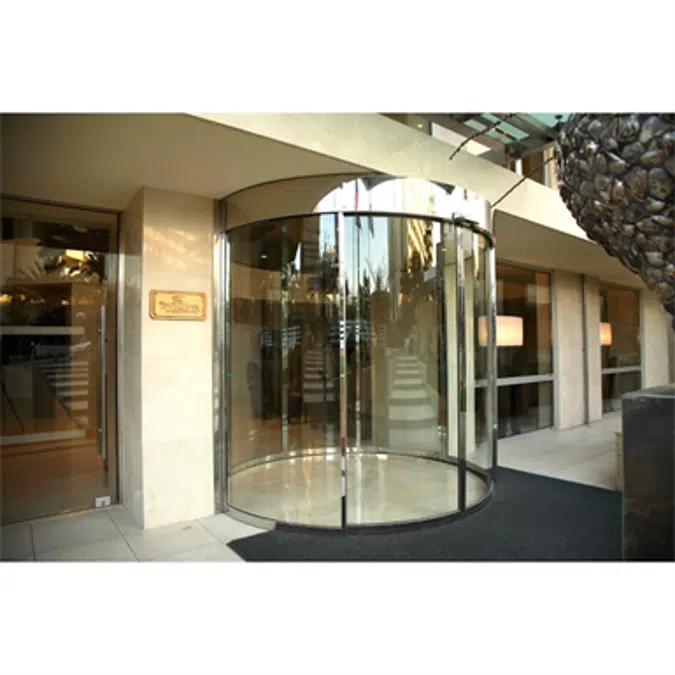

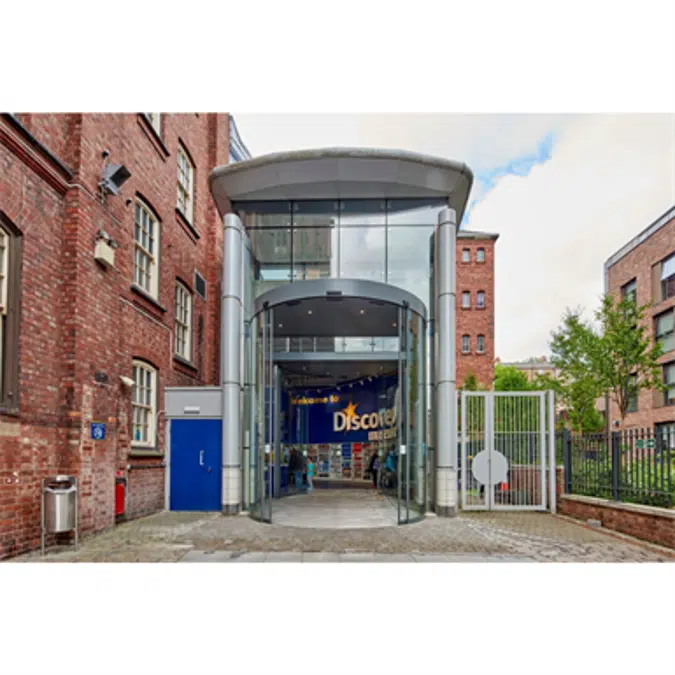

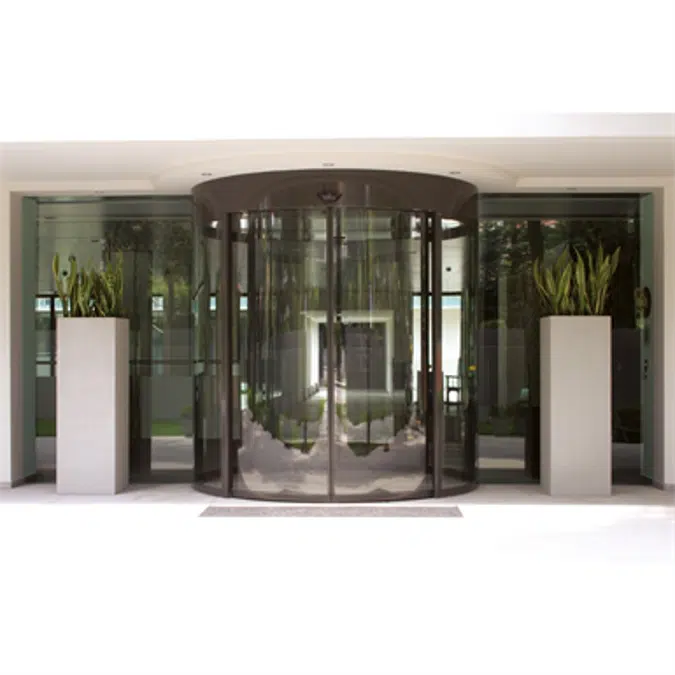

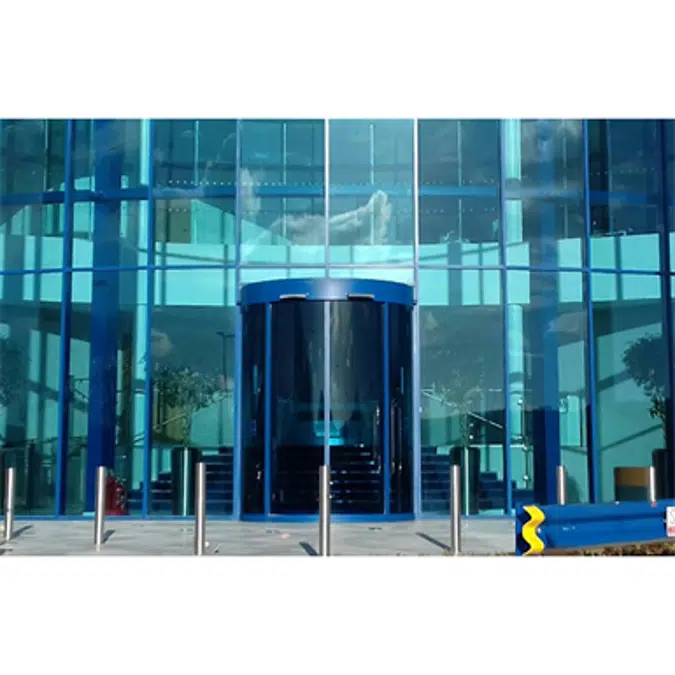

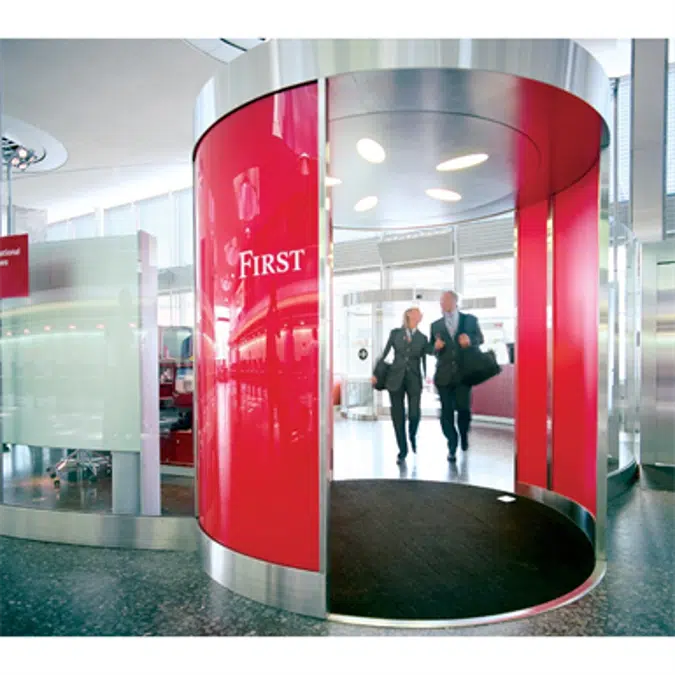

Curved sliding doors are ideally suited to give any façade a real touch of style. They provide the unsurpassed elegance of a revolving door, but are less complex and far more flexible. This type of door can be integrated into virtually any curved space, and be curved inwards or outwards to create an inviting and spacious entrance.

Specifikation

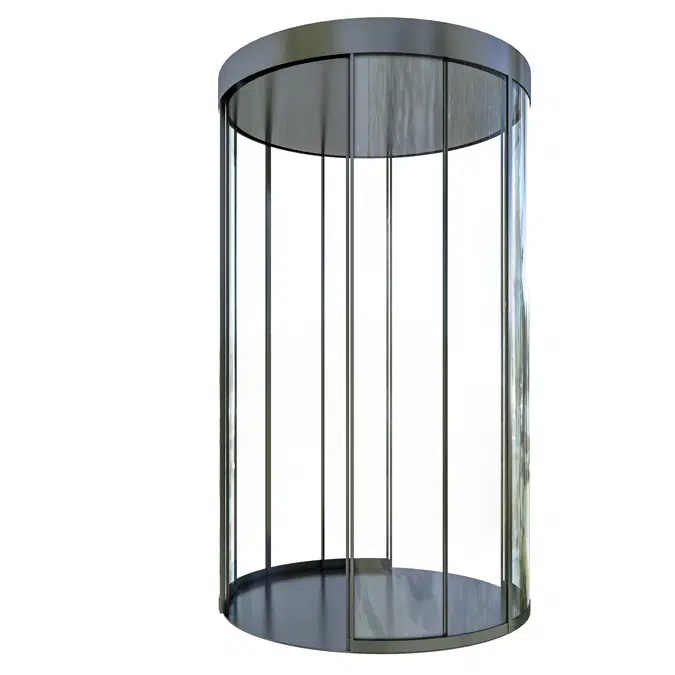

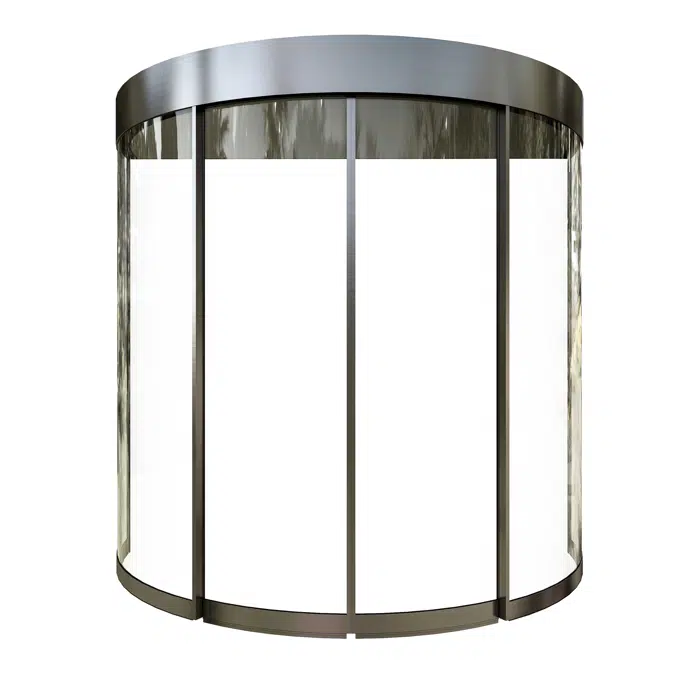

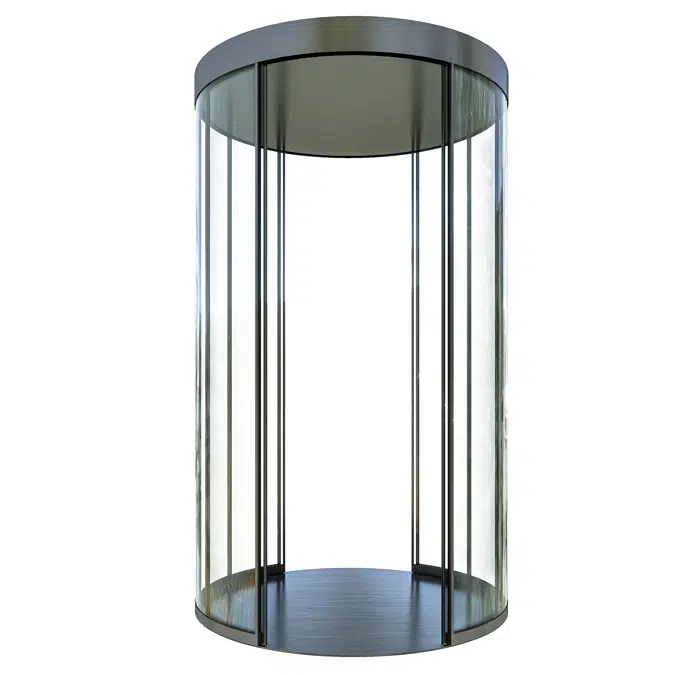

Designed using record system 20 components, CURVED sliding doors are exceptionally quiet in operation, can be adapted to suit the widest range of conditions and its flexible, modular system helps shorten installation times and reduce servicing and maintenance costs. Whether semi-circular or round, RST 20 CURVED sliding doors can be integrated into passage widths between 1,000 and 2,400mm and are available in a 20mm thick profile for 10mm thick single glazed leaves or 30mm thick profile suitable for 19mm thick insulating glass to allow the greatest tranparency. Both profiles and drive units can be anodized or powder-coated.

Teknisk specifikation

Unik ref.RST-CURVED-01
ProduktfamilieSliding Door
Produktgruppeby Record
TypeObjekt (enkelt objekt)
Udgivelsesdato2026-09-30
Udgavenummer1
Højde (mm)2400
Bredde (mm)2320

Links

Relateret

Materiale primærtAluminium
Materiale sekundærtGlas
Designet iTyskland
Fremstillet iTyskland

Klassifikation

BIMobject-kategoriDøre - Glaseret
IFC-klassifikationDør
Uniclass 2015-kodePr_30_59_24_37
Uniclass 2015-beskrivelseHigh security doorsets
