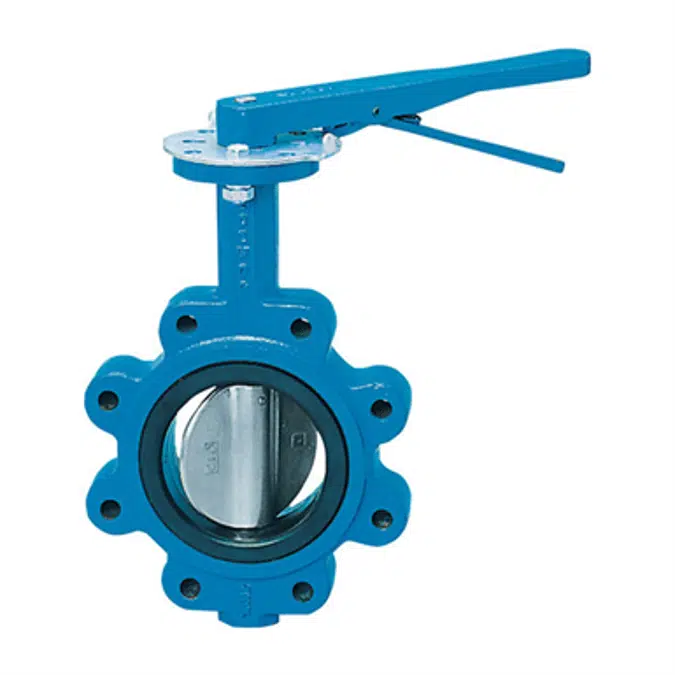

Full Lug Style Butterfly Valves - Import - BF-03

Full Lug Style Butterfly Valves - Import - BF-03

Full Lug Style Butterfly Valves - Import - BF-03

4.6(8 anmeldelser)

Series BF-03 Full Lug Style Butterfly Valves are used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required to control the flow of liquids, gases, and slurries. It features iron body construction, a stainless steel shaft, mounting pad for 10-position lever, gear operator or actuator. Available with ductile iron, aluminum bronze, or stainless steel discs and EPDM, Buna, or Viton seats. Pressure Rating for 2 in. ‒ 12 in. (50 ‒ 300mm) is 200psi WOG. 14 in. ‒ 24 in. (350 ‒ 600mm) is 150psi WOG.

Specifikation

Keywords: assembly, backflow, bonnet, bypass, check, cover, kit, releif, repair, rubber, seat, valve, watts, watts regulator, plumbing, draings, valves, pipes, drainage, automatic control valves, control valves, reducing valves, pressure reducing valves, ball valves, control valves, liquid control valves, water safety
- Choice of either ductile iron, aluminum bronze, or 316 stainless steel discs
- Controls the flow of liquids, gases, and slurries
- Used in HVAC, irrigation, OEM, commercial, and institutional applications and wherever positive shutoff is required
- Complies with API 609 and MSS-SP 67 standards .

Teknisk specifikation

Unik ref.Butterfly-Valve-BF-03
ProduktfamiliePlumbing & Flow Control Solutions
ProduktgruppeShutoff Valves > Butterfly Valves
TypeObjekt (enkelt objekt)
Udgivelsesdato2019-02-14
Udgavenummer1

Links

Produkt-URLhttps://www.watts.com/products/plumbing-flow-control-solutions/shutoff-valves/butterfly-valves/bf-03
Monteringsvejledninghttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/11934-source
Teknisk beskrivelsehttps://www.watts.com/dfsmedia/0533dbba17714b1ab581ab07a4cbb521/12233-source

Relateret

Materiale primærtMessing
Designet iUSA
Fremstillet iUSA

Klassifikation

BIMobject-kategoriVVS - Ventiler
IFC-klassifikationVentil
UNSPSC-navnButterfly lug pattern valves
UNSPSC-kode40141619
Uniclass 2015-kodePr_65_54_95_08
Uniclass 2015-beskrivelseButterfly valves
CSI MasterFormat 2014-kode40 05 64
CSI MasterFormat 2014-titelButterfly Valves
OmniClass-nummer23-27 31 17
OmniClass-betegnelseButterfly Valves

Tilgængelighed i region

Nordamerika
Canada
USA
