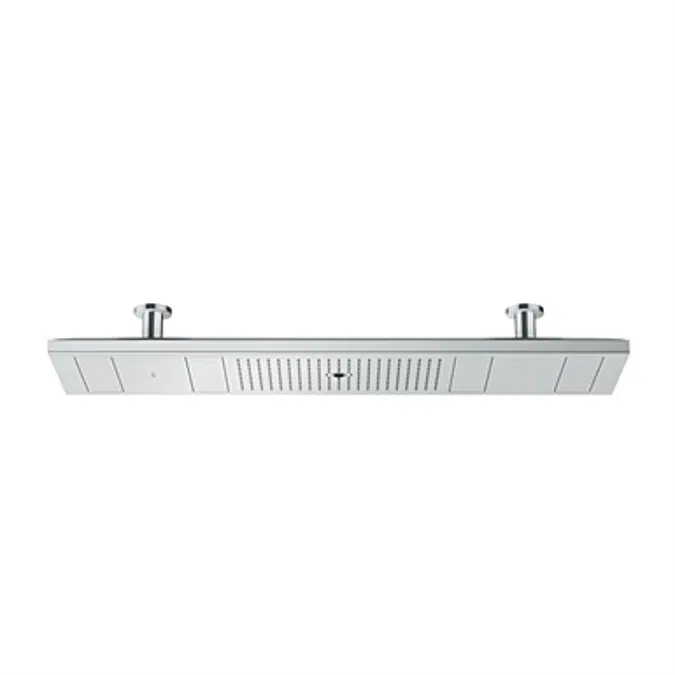

AXOR ShowerSolutions ShowerHeaven 1200/300 4jet with lighting 3500 K 10629000
| Unique ref.: | 10629000 |
|---|---|
| Marke: | AXOR |
| Produkt Familie: | AXOR ShowerSolutions |
| Produkt Gruppe: | Overhead showers |
| Breite (mm): | 1200 |
| Höhe (mm): | 163 |
| Tiefe (mm): | 302 |
| Publishing Datum: | 2017-11-01 |
| Versionsnummer: | 1 |
| Typ: | Objekt (Einzelobjekt) |
Downloadbereich
AXOR ShowerSolutions ShowerHeaven 1200/300 4jet with lighting 3500 K

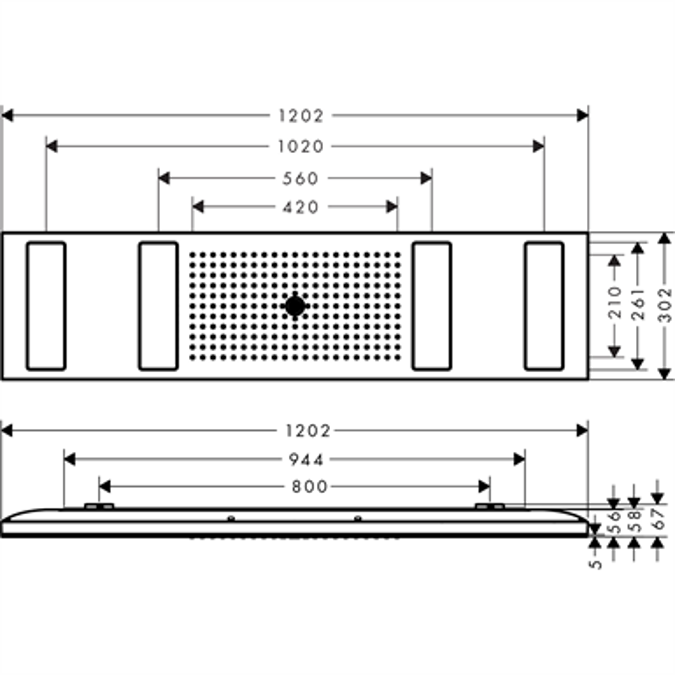

· shower head size: 1200 x 300 mm
· spray type: Rain, MonoRain, PowderRain
· maximum flow rate at 0.3 MPa: 30 l/min
· flow rate Rain spray (at 0.3 MPa): 16 l/min
· flow rate Mono spray (at 0.3 MPa): 15 l/min
· Durchflussmenge PowderRain outer (bei 3 bar): 12 l/min
· Durchflussmenge PowderRain inner (bei 3 bar): 12 l/min
· can be activated individually or in combination
· Select button on thermostat
· fully chrome-plated spray disc
· material spray disc: metal
· overhead shower for cleaning removable
· extendable flaps can be opened manually
· brass ceilling connector
· ceiling connection length: 100 mm
· installation: ceiling, extendable claps can be pre-set to the user
size
· connection dimension: DN15
· with integrated lighting
· illuminant: LED
· power supply: 24 V
· transformer power supply, 24 V, 60 W, EuP II
· input voltage: 100 - 240 V AC / 50 / 60 Hz
· output voltage: 24 V - DC
· colour temperature: 3500 K
· not suitable for continuous flow water heaters
· spray type: Rain, MonoRain, PowderRain
· maximum flow rate at 0.3 MPa: 30 l/min
· flow rate Rain spray (at 0.3 MPa): 16 l/min
· flow rate Mono spray (at 0.3 MPa): 15 l/min
· Durchflussmenge PowderRain outer (bei 3 bar): 12 l/min
· Durchflussmenge PowderRain inner (bei 3 bar): 12 l/min
· can be activated individually or in combination
· Select button on thermostat
· fully chrome-plated spray disc
· material spray disc: metal
· overhead shower for cleaning removable
· extendable flaps can be opened manually
· brass ceilling connector
· ceiling connection length: 100 mm
· installation: ceiling, extendable claps can be pre-set to the user
size
· connection dimension: DN15
· with integrated lighting
· illuminant: LED
· power supply: 24 V
· transformer power supply, 24 V, 60 W, EuP II
· input voltage: 100 - 240 V AC / 50 / 60 Hz
· output voltage: 24 V - DC
· colour temperature: 3500 K
· not suitable for continuous flow water heaters
| Produktbeschreibung: | https://www.axor-design.com/de-de/articledetail--10629000.html |
|---|---|
| Installationsanleitung: | https://www.axor-design.com/de-de/articledetail--10629000.html |
| Ausschreibungstexte: | |
| Produkt Zertifizierung: | |
| Technische Beschreibung: | https://www.axor-design.com/de-de/articledetail--10629000.html |
| Anleitungsvideo: | |
| GTIN Code: | 4059625030196 |
Der QR Code enthält die nachfolgende statische URL und er erlaubt es somit durch Scannen mit einem Iphone oder Smartphone auf die Produktseite des Portals zurück zu kehren.
https://www.bimobject.com/de/axor/product/10629000
| Material 1: | Chrome |
|---|---|
| Material 2: | |
| Designed in: | Germany |
| Hergestellt in: | Germany |
| Gewicht (kg): | 21.54 |
| BIMobject Kategorie: | Sanitär und Bad - Wasserhahn und Mischbatterie |
|---|---|
| IFC Klassifikation: | Sanitary Terminal |
| UNSPSC Name: | Showers |
| UNSPSC Code: | 30181503 |
| Uniclass 1.4 Code: | L721 |
| Uniclass 1.4 Beschreibung: | Sanitary equipment |
| Uniclass 2.0 Code: | PR-35-06-82 |
| Uniclass 2.0 Beschreibung: | Shower Mixers |
| Uniclass 2015 Code: | Pr_40_20_87_81 |
| Uniclass 2015 Beschreibung: | Shower thermostatic water supply sets |
| NBS Reference Code: | 35-06-82 |
| NBS Reference Beschreibung: | Shower Mixers |
| CSI MasterFormat 2014 Code: | 22 41 39 |
| CSI MasterFormat 2014 Title: | Residential Faucets, Supplies, and Trim |
| OmniClass-Nummer: | 23-31 15 11 |
| OmniClass-Bezeichnung: | Bath Shower Units |
| CSI UniFormat II Code: | D2010 |
| CSI UniFormat II Title: | Plumbing Fixtures |
