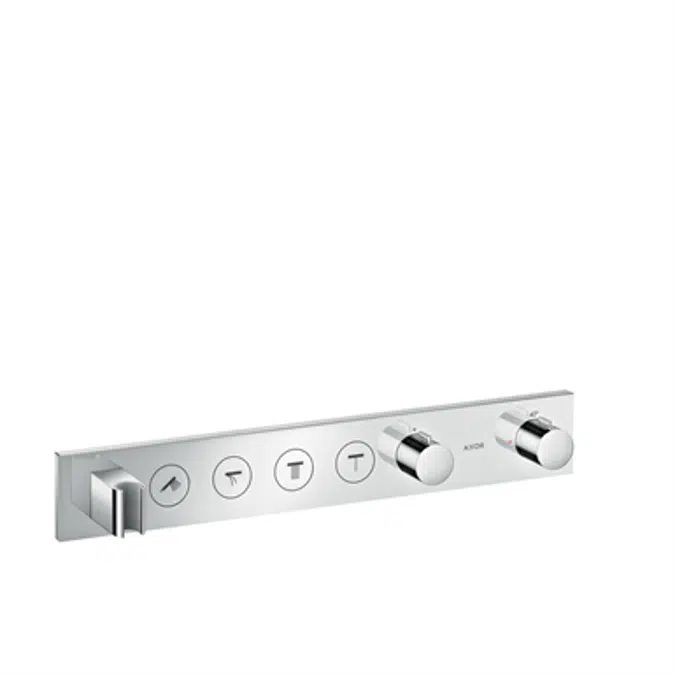

AXOR therm.modul Select FS 4 funct.chrome

Spezifikation

Spezifikation

• Surfaces: - 18357000 Chrome - 18357020 Polished Chrome - 18357130 Polished Bronze - 18357140 Brushed Bronze - 18357250 Brushed Gold Optic - 18357260 Brushed Chrome - 18357300 Polished Red Gold - 18357310 Brushed Red Gold - 18357330 Polished Black Chrome - 18357340 Brushed Black Chrome - 18357350 Satin Black - 18357800 Stainless Steel Optic - 18357820 Brushed Nickel - 18357830 Polished Nickel - 18357930 Polished Brass - 18357950 Brushed Brass - 18357990 Polished Gold Optic Specification: • consists of: Thermostatic module, shower holder • 4 functions • depending on volume flow and installation situation approx. 50% flow rate reduction and integrated shut off function • Select push-button on/off control for 4 outlets • simultaneous use of several outlets • maximum flow rate at 3 bar: 26 l/min • thermostat cartridge, Start/stop valve to operate the functions • safety lock at 40 °C • temperature limitation adjustable • hose nut: for shower hoses with conical or cylindrical nut on both sides • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar • Thermostat is delivered with buttons Waterfall, Rain large, Mono, hand shower

Technische Spezifikation

Technische Spezifikation

• Referenznummer18357000
• ProduktfamilieAXOR ShowerSolutions
• ProduktgruppeShower thermostat
• TypObjekt (Einzelobjekt)
• Veröffentlichungsdatum2018-01-15
• Editionsnummer1

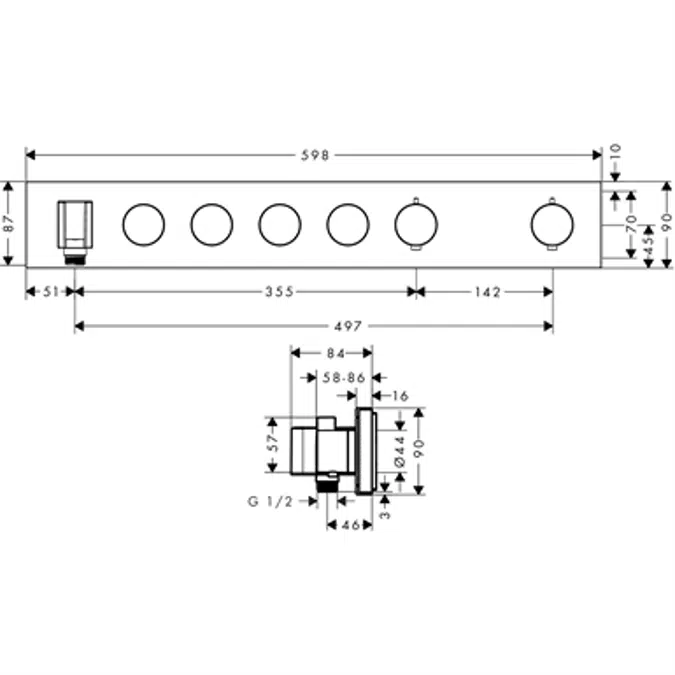

• Höhe (mm)90
• Breite (mm)598
• Tiefe (mm)85

Links

Links

• Produkt urlhttps://www.axor-design.com/articledetail--18357000
• Technische Beschreibunghttps://www.axor-design.com/de-de/articledetail--18357000.html

Verwandt

Verwandt

• Entwickelt inDeutschland
• Hergestellt inDeutschland
• Nettogewicht (kg)4.9

Klassifikation

Klassifikation

• BIMobject KategorieSanitär und Bad - Duschen
• IFCClassificationSanitäranschluss
• ETIM CodeEC011329
• ETIM NameShower mixing tap
• UNSPSCNameShowers
• UNSPSCCode30181503
• Classifications.Uniclass2015CodePr_40_20_87_76
• Classifications.Uniclass2015BeschreibungShower heads
• Klassifizierung22 41 23
• Format2014TitelResidential Showers
• OmniClassNummer23-31 17 00
• OmniClassTitelShowers
• CSIUniFormatIICodeD2010
• CSIUniFormatIITitlePlumbing Fixtures
