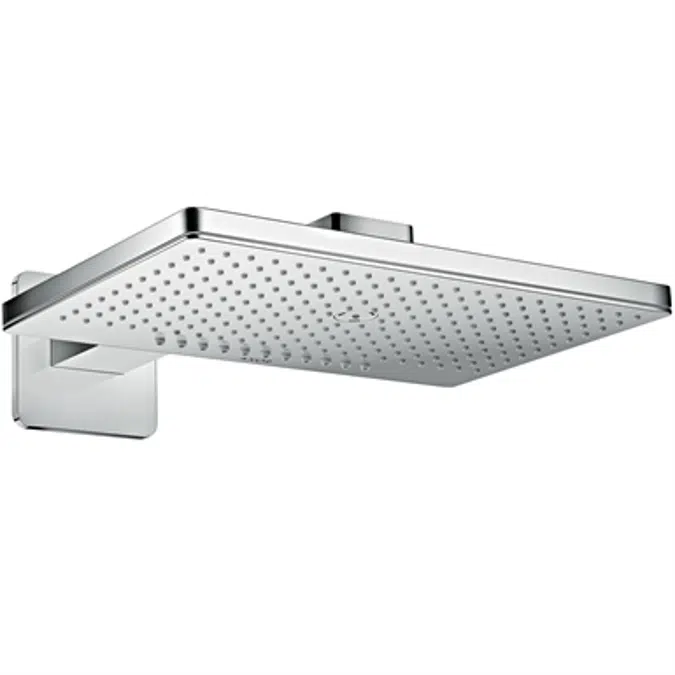

AXOR ShowerSolution 460 2jet wall SoftCube chrome

Spezifikation

Spezifikation

• Surfaces: - 35275000 Chrome - 35275020 Polished Chrome - 35275130 Polished Bronze - 35275140 Brushed Bronze - 35275250 Brushed Gold Optic - 35275260 Brushed Chrome - 35275300 Polished Red Gold - 35275310 Brushed Red Gold - 35275330 Polished Black Chrome - 35275340 Brushed Black Chrome - 35275800 Stainless Steel Optic - 35275820 Brushed Nickel - 35275830 Polished Nickel - 35275930 Polished Brass - 35275950 Brushed Brass - 35275990 Polished Gold Optic Specification: • consists of: overhead shower, shower arm, escutcheon • shower head size: 460 x 300 mm • spray type: Rain, RainStream • material spray disc: metal • shower arm length 460 mm • maximum flow rate at 3 bar: 18 l/min • flow rate Rain spray (at 3 bar): 18 l/min • flow rate RainStream spray (at 3 bar): 15 l/min • minimum flow pressure: 1,5 bar • spray disc removable for cleaning • overhead shower removable for cleaning • installation: wall-mounted - for installation on iBox • connection dimension: DN15 • suitable for continous flow water heaters

Technische Spezifikation

Technische Spezifikation

• Referenznummer35275000
• ProduktfamilieAXOR ShowerSolutions
• ProduktgruppeOverhead showers
• TypObjekt (Einzelobjekt)
• Veröffentlichungsdatum2017-05-08
• Editionsnummer1

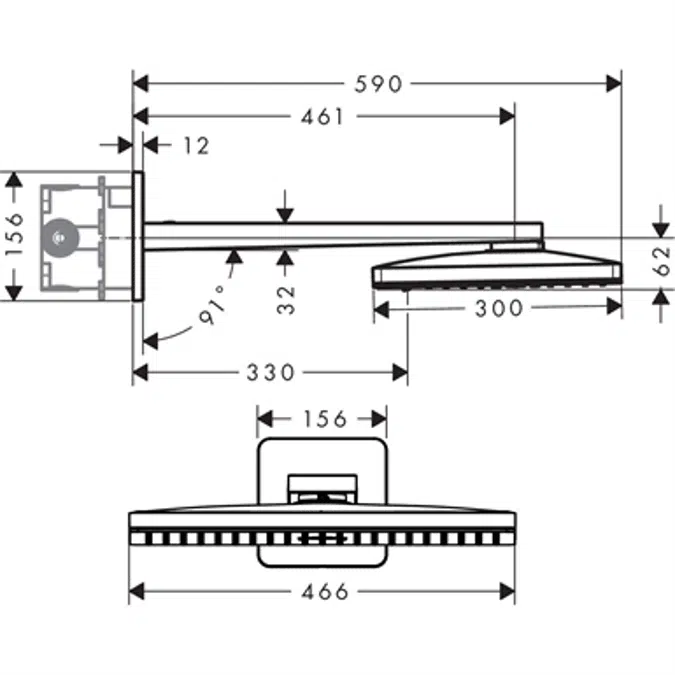

• Höhe (mm)156
• Breite (mm)466
• Tiefe (mm)590

Links

Links

• Produkt urlhttps://www.axor-design.com/articledetail--35275000
• Technische Beschreibunghttps://www.axor-design.com/de-de/articledetail--35275000.html

Verwandt

Verwandt

• Entwickelt inDeutschland
• Hergestellt inDeutschland
• Nettogewicht (kg)8.7

Klassifikation

Klassifikation

• BIMobject KategorieSanitär und Bad - Duschen
• IFCClassificationSanitäranschluss
• ETIM CodeEC011383
• ETIM NameShower head
• UNSPSCNameShowers
• UNSPSCCode30181503
• Classifications.Uniclass2015CodePr_40_20_87_76
• Classifications.Uniclass2015BeschreibungShower heads
• Klassifizierung22 41 23
• Format2014TitelResidential Showers
• OmniClassNummer23-31 17 00
• OmniClassTitelShowers
• CSIUniFormatIICodeD2010
• CSIUniFormatIITitlePlumbing Fixtures
