AXOR ShowerSolution 580 3jet wall chrome

Spezifikation

Spezifikation

• Surfaces: - 35283000 Chrome - 35283020 Polished Chrome - 35283130 Polished Bronze - 35283140 Brushed Bronze - 35283250 Brushed Gold Optic - 35283260 Brushed Chrome - 35283300 Polished Red Gold - 35283310 Brushed Red Gold - 35283330 Polished Black Chrome - 35283340 Brushed Black Chrome - 35283350 Satin Black - 35283800 Stainless Steel Optic - 35283820 Brushed Nickel - 35283830 Polished Nickel - 35283930 Polished Brass - 35283950 Brushed Brass - 35283990 Polished Gold Optic Specification: • consists of: overhead shower, wall connector • shower head size: 580 x 260 mm • spray type: Rain, RainFlow, Mono • material spray disc: metal • maximum flow rate at 3 bar: 20 l/min • flow rate Rain spray (at 3 bar): 17 l/min • flow rate RainFlow spray (at 3 bar): 17 l/min • flow rate Mono spray (at 3 bar): 20 l/min • minimum flow pressure: 1,7 bar • spray disc removable for cleaning • installation: wall-mounted - for installation on iBox • connection dimension: DN15 • suitable for continous flow water heaters

Technische Spezifikation

Technische Spezifikation

• Referenznummer35283000
• ProduktfamilieAXOR ShowerSolutions
• ProduktgruppeOverhead showers
• TypObjekt (Einzelobjekt)
• Veröffentlichungsdatum2017-05-08
• Editionsnummer1

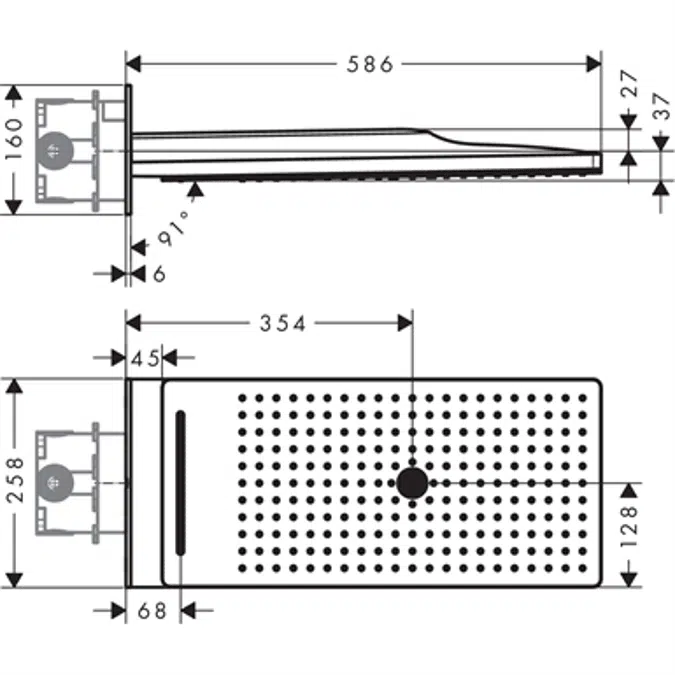

• Höhe (mm)160
• Breite (mm)258
• Tiefe (mm)586

Links

Links

• Produkt urlhttps://www.axor-design.com/articledetail--35283000
• Technische Beschreibunghttps://www.axor-design.com/de-de/articledetail--35283000.html

Verwandt

Verwandt

• Entwickelt inDeutschland
• Hergestellt inDeutschland
• Nettogewicht (kg)10.2

Klassifikation

Klassifikation

• BIMobject KategorieSanitär und Bad - Duschen
• IFCClassificationSanitäranschluss
• ETIM CodeEC011383
• ETIM NameShower head
• UNSPSCNameShowers
• UNSPSCCode30181503
• Classifications.Uniclass2015CodePr_40_20_87_76
• Classifications.Uniclass2015BeschreibungShower heads
• Klassifizierung22 41 23
• Format2014TitelResidential Showers
• OmniClassNummer23-31 17 00
• OmniClassTitelShowers
• CSIUniFormatIICodeD2010
• CSIUniFormatIITitlePlumbing Fixtures
