AXOR Uno bath mix.freestand.zero chrome

Spezifikation

Spezifikation

• Surfaces: - 45416000 Chrome - 45416020 Polished Chrome - 45416130 Polished Bronze - 45416140 Brushed Bronze - 45416250 Brushed Gold Optic - 45416260 Brushed Chrome - 45416300 Polished Red Gold - 45416310 Brushed Red Gold - 45416330 Polished Black Chrome - 45416340 Brushed Black Chrome - 45416800 Stainless Steel Optic - 45416820 Brushed Nickel - 45416830 Polished Nickel - 45416930 Polished Brass - 45416950 Brushed Brass - 45416990 Polished Gold Optic Specification: • consists of: single lever bath mixer floor standing, baton hand shower, shower hose, shower holder • 2 functions • projection: 244 mm • spray type mixer: normal spray • spray type hand shower: Rain, Mono • maximum flow rate at 3 bar: 18 l/min • flow rate for bath spout at 3 bar: 18 l/min • flow rate of hand shower at 3 bar: 13 l/min • ceramic cartridge • temperature limitation adjustable • diverter with automatic resetting • non-return valve • connection dimension: DN15 • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar

Technische Spezifikation

Technische Spezifikation

• Referenznummer45416000
• ProduktfamilieAXOR Uno
• ProduktgruppeBath mixers
• TypObjekt (Einzelobjekt)
• Veröffentlichungsdatum2017-03-14
• Editionsnummer1

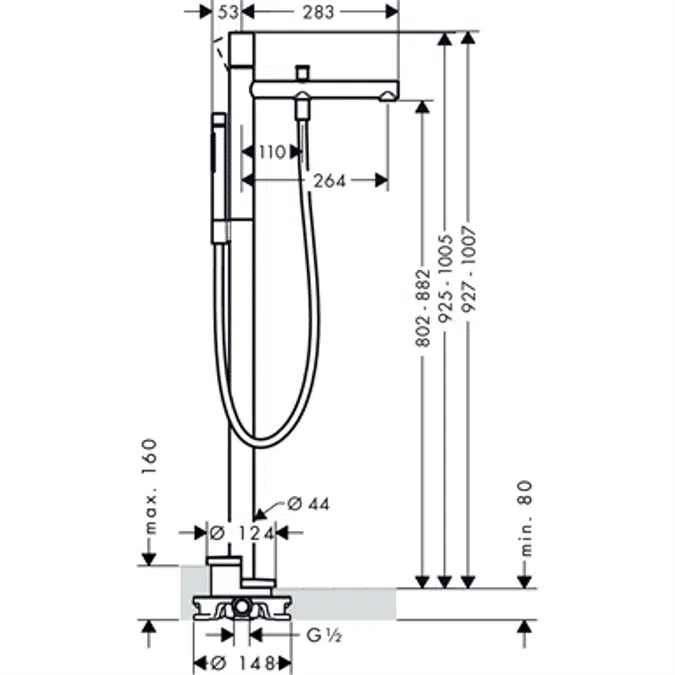

• Höhe (mm)1007
• Breite (mm)124
• Tiefe (mm)345

Links

Links

• Produkt urlhttps://www.axor-design.com/articledetail--45416000
• Technische Beschreibunghttps://www.axor-design.com/de-de/articledetail--45416000.html

Verwandt

Verwandt

• Entwickelt inDeutschland
• Hergestellt inDeutschland
• Nettogewicht (kg)9

Klassifikation

Klassifikation

• BIMobject KategorieSanitär und Bad - Wasserhahn und Mischbatterie
• IFCClassificationVentil
• ETIM CodeEC010862
• ETIM NameBath mixing tap
• UNSPSCNameSanitary ware
• UNSPSCCode301815
• Classifications.Uniclass2015CodePr_40_20_76
• Classifications.Uniclass2015BeschreibungSanitary accessories
• Klassifizierung22 41 39
• Format2014TitelResidential Faucets, Supplies, and Trim
• OmniClassNummer23-31 11 00
• OmniClassTitelFaucets
• CSIUniFormatIICodeD2010
• CSIUniFormatIITitlePlumbing Fixtures
