Microcold Coldstore wall panel
Microcold Coldstore wall panel
    Archiviert

    Microcold Coldstore wall panel

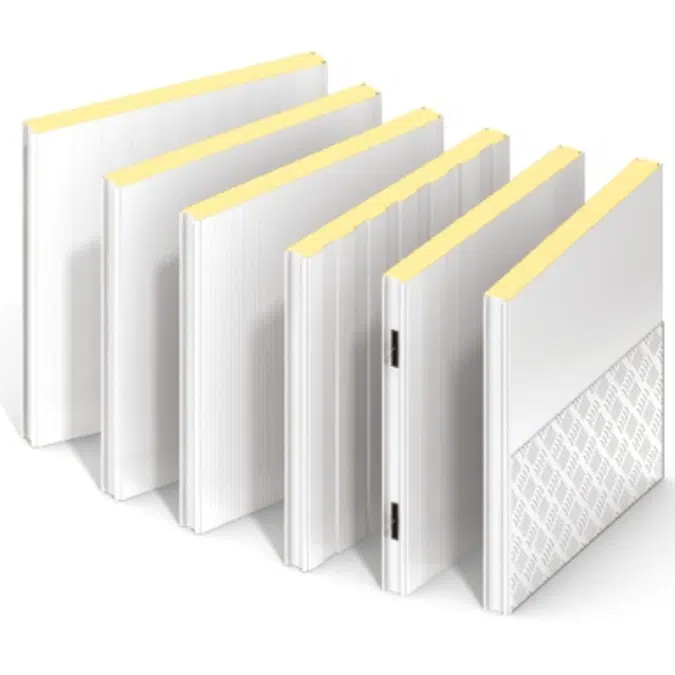

    Kingspan Controlled Environment panels are designed for use within temperature controlled and hygiene safe environments, such as food processing, freezers, pharmaceutical, cold/chill store and clean rooms. These Firesafe, hygenic and fibre free insulated wall panel systems are suitable for internal and external walls and ceilings, including "box within a box" applications. - Designed to withstand internal /external temperature differences of up to 80 degrees C - Internal temperature range of -50 degrees C to +60 degrees C - Incorporates a joint panel that achieves excellent thermal performance and can accomodate vapour and hygiene safe seals - Large range of profiles, coatings and inulation core thicknesss to meet project specific demands - Hygiene safe, resting moisture ingress and any risk of toxic mould and bacterial growth
    Spezifikation
    • Cover width 1100mm Thickness: 45,60,80,100,120,140,150,170mm Standard Lengths: 2-11,9m Longer lengths: 11,9 -19m Shorter lengths: <2m U values for Quadcore (W/m² K) 45mm: 0,40 60mm: 0,30 80mm: 0,22 100mm: 0,18 120mm: 0,15 140mm: 0,13 150mm: 0,12 170mm: 0,11 200mm: 0,09
    Technische Spezifikation
    • ReferenznummerKingspan_Microcold_Wall_Panel
    • ProduktfamilieColdstore panel
    • Produktgruppeinsulated coldstore panels
    • TypObjekt (Einzelobjekt)
    • Veröffentlichungsdatum2018-01-01
    • Editionsnummer1
    • Breite (mm)1100
    Verwandt
    • HauptmaterialPolyisocyanorate PIR
    • Sekundär MaterialStahl
    • Entwickelt inTürkei
    • Hergestellt inTürkei
    Klassifikation
    • BIMobject KategorieWände - Sandwichpaneele
    • IFCClassificationWand
    • UNSPSCNameWall finishing materials
    • UNSPSCCode301615
    • Classifications.Uniclass2015CodeSs_60_60_15
    • Classifications.Uniclass2015BeschreibungCold room systems
    • Klassifizierung13 21 26
    • Format2014TitelCold Storage Rooms
    • OmniClassNummer23-19 31 19 13 11
    • OmniClassTitelCold Storage Rooms
    • CSIUniFormatIICodeC3010
    • CSIUniFormatIITitleWall Finishes
