Main Control Board
Main Control Board
    Airzone

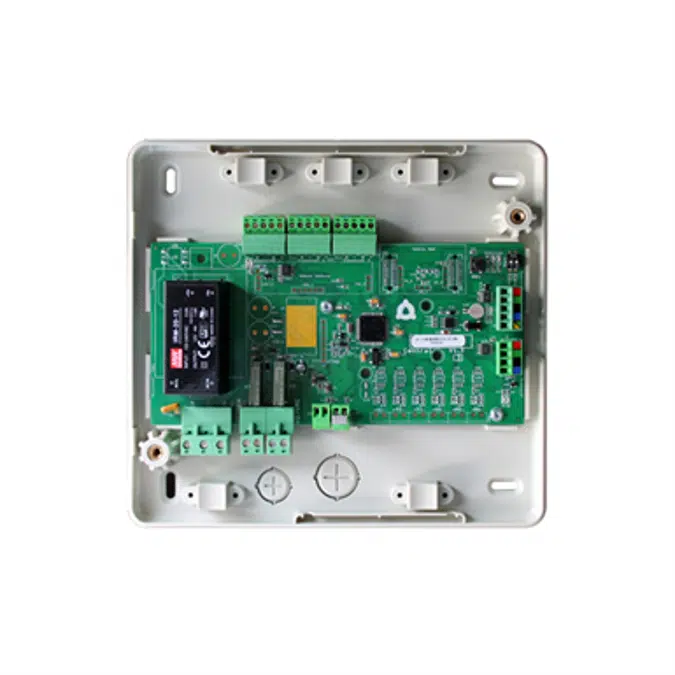

    Main Control Board

    Configurable electronic board that controls the system through wired and wireless devices. Externally powered at 230 Vac. Wall mounted.

    Specification

    • Features you can have depending on the type of board :

      • Control and management of the thermostats (up to 8 zones )

      • Power supply outputs for motorised elements.

      • Relay outlet configurable as CMV (Controlled Mechanical Ventilation) or boiler.

      • Control gateway management.

      • Communication with units of integral control of the installation.

      • Communication with control units of the installation.

      • Communication with other external control systems through integration bus.

      • Certified System by Eubac european norm.

      • Controls the proportionality and the minimum air supply of the dampers.

      • Relay outputs for start-stop of AC unit and boiler.

    Technical specification
    • Unique ref.AZControl_AZ6CONTROLBOARD
    • Product familyAZControl
    • Product groupAirzone Control
    • TypeObject (single object)
    • Date of publishing2017-11-17
    • Edition number1
    • Height (mm)180
    • Width (mm)195
    • Depth (mm)55.5
    Links
    Related
    • Designed inSpain
    • Manufactured inSpain
    • Weight Net (Kg)616
    Classification
    • BIMobject CategoryHVAC - Air Conditioning
    • IFC classificationController
    • ETIM CodeEC010216
    • ETIM NameFixed-application controller
    • UNSPSC nameDistribution and Conditioning Systems and Equipment and Components
    • UNSPSC code40
    • Uniclass 2015 CodeSs_65_80
    • Uniclass 2015 DescriptionAir conditioning systems
    • CSI MasterFormat 2014 Code23 09 33
    • CSI MasterFormat 2014 TitleElectric and Electronic Control System for HVAC
    • OmniClass Number23-27 15 23
    • OmniClass TitleHVAC Controls
    • CSI UniFormat II CodeD3090
    • CSI UniFormat II TitleOther HVAC Systems & Equipment
