Model 1211SV Vandal Resistant Bottle Filling Station and Single Drinking Fountain Non-Filtered Chilled

Vandal Resistant Bottle Filling Station and Single Drinking Fountain Non-Filtered Chilled

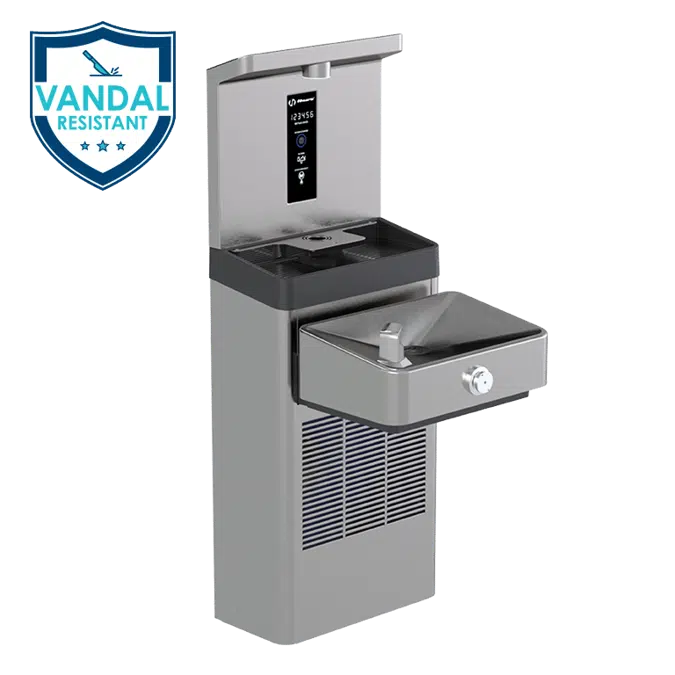

The Haws 1211SV vandal-resistant bottle filling station with single ADA fountain provides chilled water through a durable, tamper-resistant design built for indoor spaces. This single station unit meets ADA accessibility standards and includes concealed fasteners and impact-resistant components for long-lasting security. Certified to ANSI/NSF standards, the 1211SV is ideal for schools, office buildings, and other high-use indoor facilities. Sensor activated bottle filler allows for hands free operation, and intuitive LED electronic display keeps the user informed with how many plastic bottles have been saved.

Vandal Resistant Features

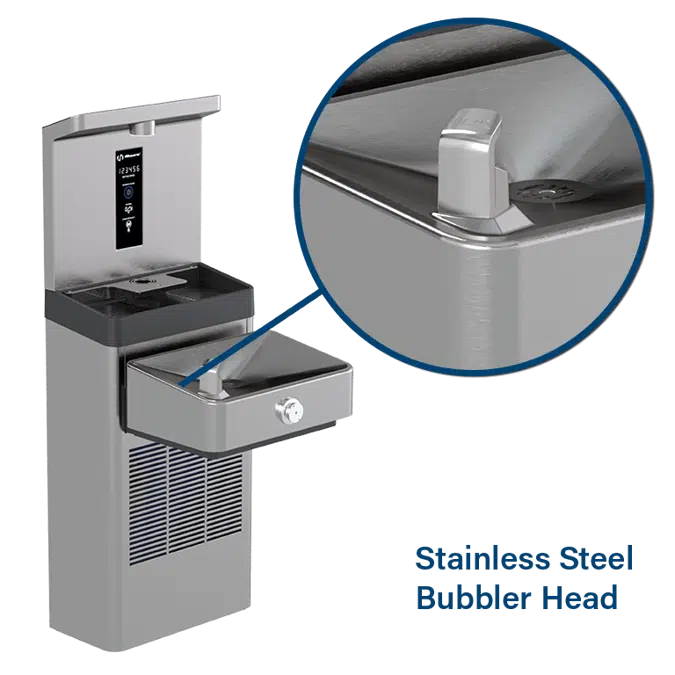

Stainless Steel Bubbler Head
- Industry leading Vandal Resistant Anti-Rotational Bubbler Head

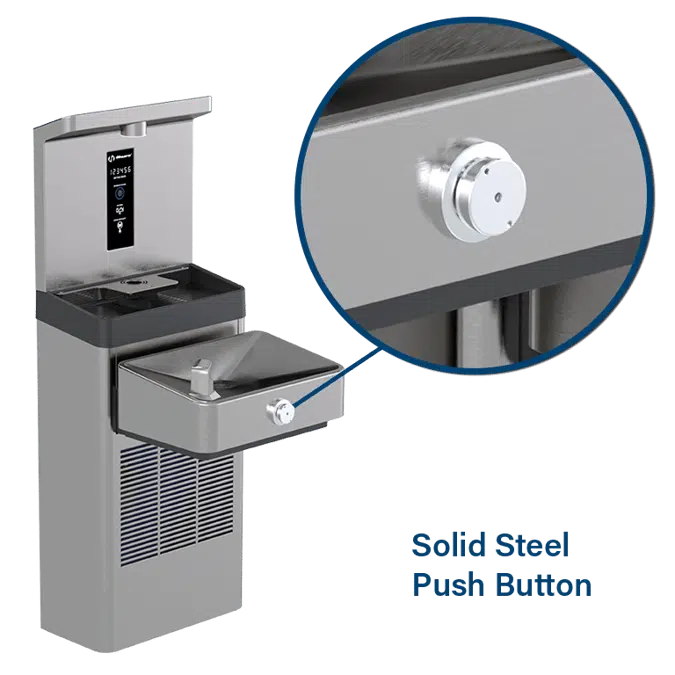

Push Button Operation
- Features our industry leading 5874PB, an all-stainless steel valve body machined out of solid stainless steel bar stock

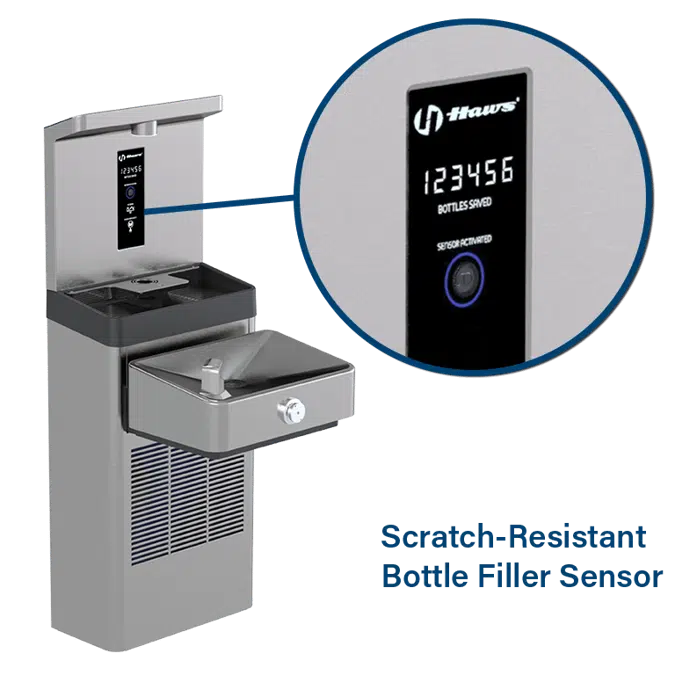

Best-in-Class Bottle Filler Sensor
- Resistant to scratching from knives or razors, abrasion, dirt and regular use buildup

Product Features

Hands-free sensor operated bottle filler
LED illuminated bottle fill area
Quick 1.1 GPM fill rate (depending on incoming pressure) for bottle filler
Auto purge feature automatically cycles once every 24 hours to assure a fresh water supply as well as trap integrity
Energy-saving mode powers down unit after 2 hours of inactivity.
Durable, easy to clean 304 stainless steel skin
Retrofit installation compatibility over many existing water coolers
100% lead free waterways
Unique basin design reduces water splashing and simplifies cleaning
Galvanized steel frame
Rated for indoor use
Designed and assembled in the USA

CSA certified to comply with NSF/ANSI/CAN 61: Q ≤ 1, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UL 399 and CSA C22.2 No. 120. ADA compliant to ICC A117.1, CSA B651, DOJ’s 2010 ADA Standards for Accessible Design when properly installed. ASHRAE 18 compliant chilling capacity of 8.0 gallon per hour of 50 degree drinking water, based on 80 degree inlet water and 90 degree ambient temperature. FCC and CAN ICES - 3(A)/NMB-3(A). Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine), and failure to heed these conditions may void warranty.

Certifications

CSA Certified
ADA Compliant
NSF/ANSI/CAN 61-2020 with Q ≤ 1

Specification

Model 1211SV vandal resistant, non-filtered, wall-mounted chilled indoor wall-mount indoor unit with single fountain design in 304 satin-finish stainless steel. Features include vandal-resistant stainless steel anti-rotational bubbler head, model 5874 solid bar stock steel push button, and scratch resistant LED-illuminated bottle filler. The 3000-gallon (11,356 L) filter with Electronic Lifecycle Control turns filter indicator light off when capacity is reached. Light will illuminate when new filter is installed. Energy-saving mode powers down unit and lights after 2 hours of inactivity; programmable for specific days of the week. Digital LED interface displays status and error codes. Bottle filler drains to waste and auto-purges after 24 hours of non-use.

Technical specification

Unique ref.1211sv-vandal-resistant-bottle-filling-station-and-single-ada-drinking-fountain-non-filtered-chilled
Product familyDrinking Fountains/Coolers
Product groupWall Mounted Drinking Fountains
TypeObject (single object)
Date of publishing2026-04-22
Edition number1
