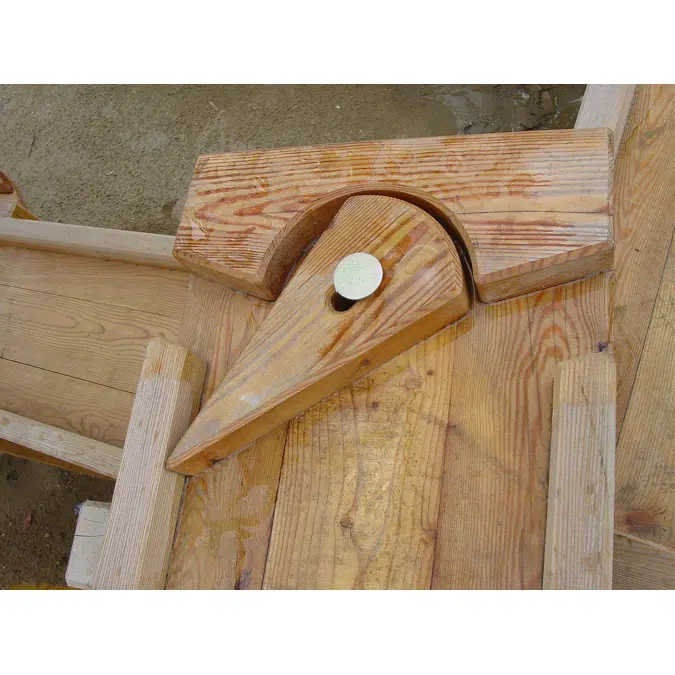

Channel with wedge seal | Playground Equipment | Water Channel

Technical information

Equipment made of non-impregnated mountain larch

Core-free
Sawn-timbers core-free, thus decreasing occurrences of cracking and undesired changes in shape

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel.

Tongue and groove
Tongue and groove planks made of 4 cm solid wood, highly resilient, no trickling of dust / sand, protection against direct rain. Sealed with microcellular rubber. For more detailed explanation of the quality characteristics see our website.

Plywood
Plywood made of mountain larch, three-layer (3 cm) or five-layer (4 cm). High dimensional stability, waterproof, glued according to DIN EN 13353:2011. Sealed with microcellular rubber.

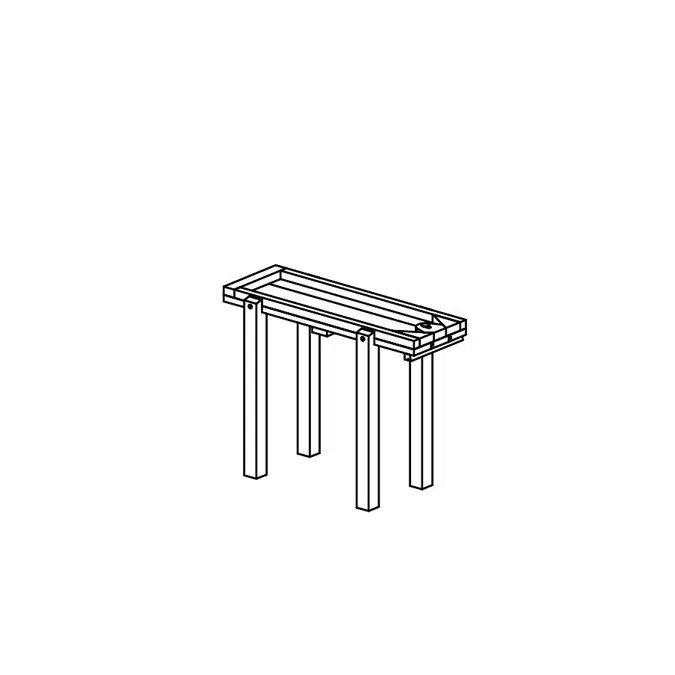

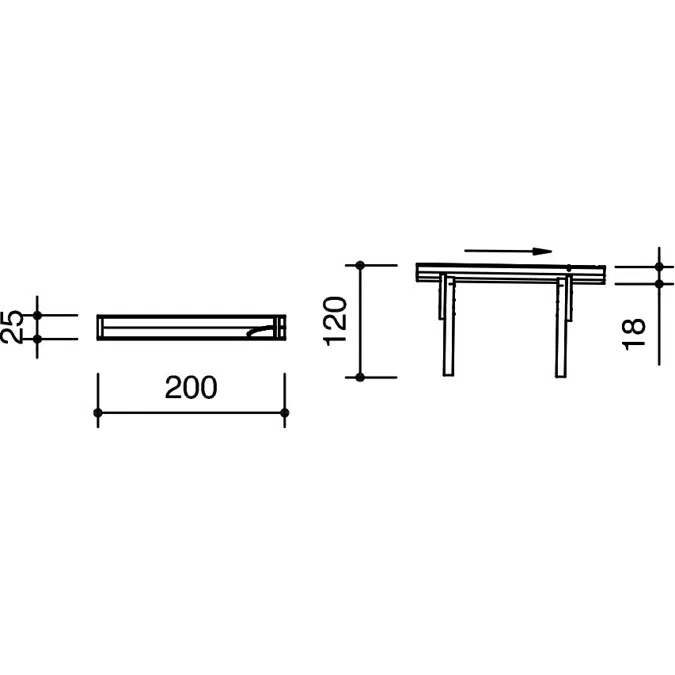

Dimensions (see sketches)
(small deviations possible)

• Floor made of planks: 10 / 30 cm
• Weight: 30 - 90 kg

Planning information
Equipment marked with a pointing arrow needs to be installed with a gradient of approx. 2% (= 2 cm on 1 m). This means that for planning not only the height of the equipment but also the gradient needs to be taken into consideration.

The lengths of the support posts must be checked for the planned installation heights. The required lengths of the support posts need to be calculated by the customer, taking into consideration the installation depth (depending on the surface) and the intended height (above ground).

If several elements are installed in a line, this might make necessary a corresponding modelling of the ground.
