Wobbly Wild Boar | Playground Equipment | Spring Rocker

Technical information

Part of a group of wobbly animals made of solid wood (Order No. 4.24270 Wobbly Sheep, 4.24273 Wobbly Wild Boar, 4.24276 Wobbly Calf).

Wobbly Wild Boar
Equipment made of solid poplar wood, worked on by hand, boiler pressure impregnated according to DIN 68800-3, use class 4.

Richter Hercules type rope
Richter Hercules type rope, a combination of galvanised six-strand steel cables and polyester yarn, diameter > 20 mm, laid and glued with very good abrasion resistance, strong sheathing even in the case of damage by puncturing

Ground anchor
All parts used for anchoring to the ground are made of hot-dip galvanised steel or stainless steel

Bearing: rubber-metal connection, only intended for gentle movement. Standard colour rope (ears): natural.

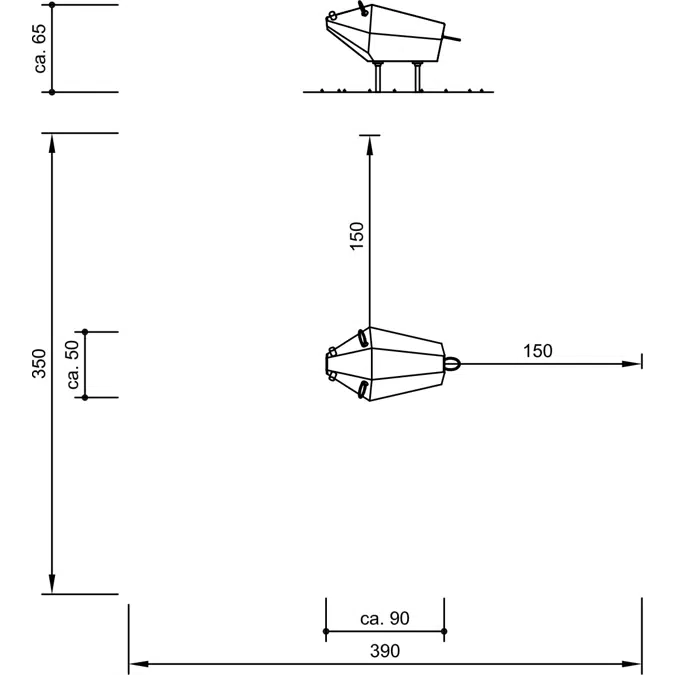

• Wobbly Wild Boar: Length 0.90 m, Height 0.65 m, Width 0.50 m, Weight 140 kg

Every animal is unique, therefore the indications of the measurements may vary.

Installation information

Surfacing requirements
Corresponding to a fall height of ≤ 1.00 m

Foundations

Excavation depth for ground anchor: 85 x 70 x 40 cm

Attention:
Exact measurements may vary. For all installation dimensions, please refer to the current installation instructions.

Technical changes reserved.
