Recessed front-loading horizontal mailboxes HR-1000-LP-6X8

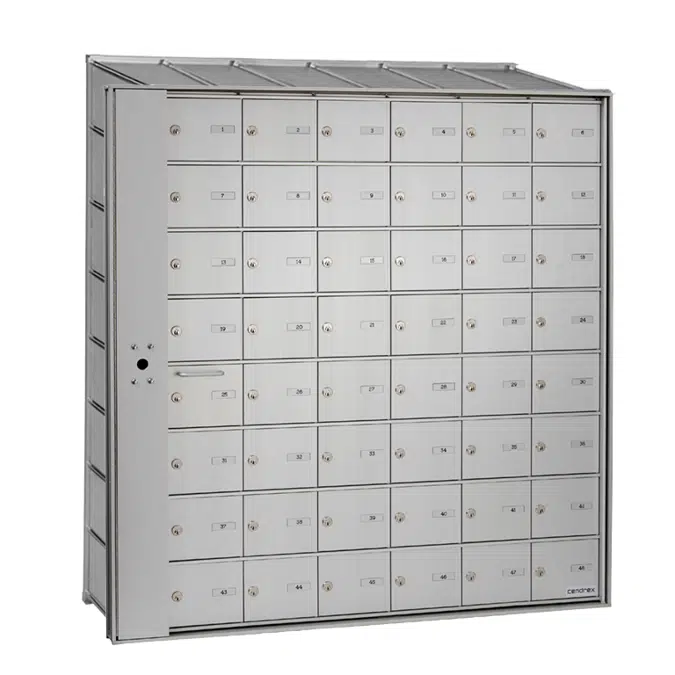

The HR-1000-LP-6X8 model is a recessed front-loading horizontal mailbox system with 48 compartments designed for the secure distribution of mail in multi-residential buildings, condominiums, student residences, institutional facilities, and commercial buildings.

Delivery personnel can access the compartments using a high-security locking panel located at the front of the mailbox. Its compartments are individually keyed and locked to ensure independent security for each user.

Standardized modular dimensions simplify design, coordination and BIM integration, while the interior configuration can be fully adapted to meet the specific requirements of each project—without additional cost or increased manufacturing lead times.

Cendrex mailbox systems are designed to meet Canada Post requirements. Cendrex supports building professionals with comprehensive technical assistance, including online product selection tools, specification resources and technical documentation to simplify project design, product selection and Canada Post compliance.

Why Choose Cendrex

Canadian manufacturer of mailbox systems since 1985
Standard and custom-configured mailbox systems manufactured in 10 to 20 business days, with no lead-time impact from customization
Guidance for projects designed to meet Canada Post requirements
Online product selection tools, technical support and design assistance
BIM objects, Revit families, technical drawings, technical documentation and specification resources
Complete range of mailbox systems for residential, commercial and institutional projects

Key Features

Recessed front-loading horizontal mailbox system
High-security locking panel
48 individually keyed and locked compartments
High-security locking panel designed to accommodate a master lock provided by Canada Post
Standardized modular dimensions
For indoor use only
Designed for high-traffic multi-residential and institutional environments
Hinges located on the right side
Natural anodized aluminum finish #628

Configuration Options

Standard modules with fully configurable interior layouts including mailbox compartments, parcel lockers, locking systems and identification options
Number and size of compartments
Parcel compartments
Master key systems and locking options
Lock cylinders
Doorbells
Engraved identification plates
Trim and finish options

Specification

Mailbox dimensions
44 3/8" X 45 3/4" X 17" (112,7 cm X 116,2 cm X 43,2 cm)
Installation
For interior use
Material
Reinforced extruded aluminum | 20 gauge galvanneal steel
Compartment Dimensions
6 3/8" X 5 1/2" X 15" (16.2 cm X 14 cm X 38.4 cm)
Compartment Locking Mechanism
Cylinder lock with 2 keys. Keyed differently.
Unit Locking Mechanism
High-security locking panel designed to accommodate a master lock provided by Canada Post. The locking panel eliminates the need to dedicate an individual compartment for the master lock installation.
Rough Opening
Mailbox width and height dimensions + 1/4" (6 mm) and minimum wall opening depth of 17 1/2" (44.5 cm).
Hinges
Hinges located on the right side
Finish
Natural anodized aluminum finish #628
Plate Holder
Each mailbox features an engraved identification plate associated with an apartment, office or any other number specified by the customer. Plate size: 2" × 5/8" (5.1 × 1.6 cm)
Packaging
1 per box
