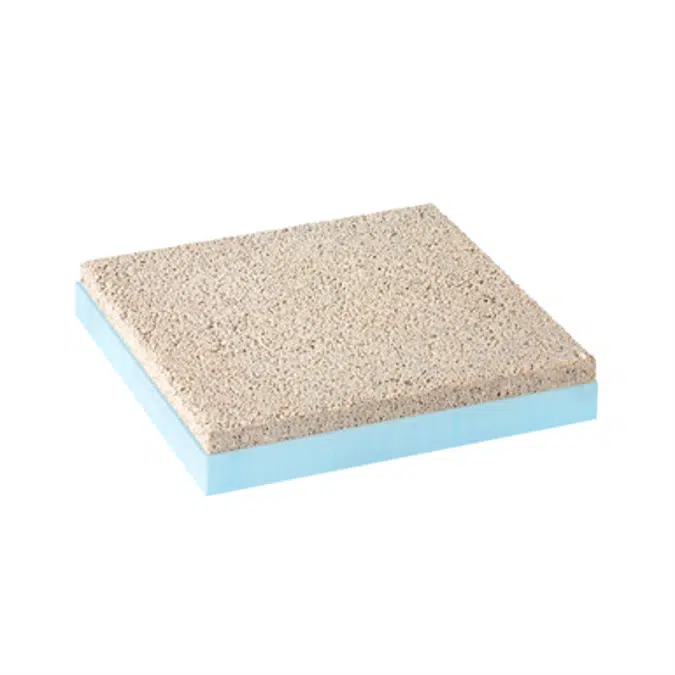

DANOLOSA 95 White

DANOLOSA 95 is an insulating slab consisting of porous concrete, which acts as a mechanical protection over an extruded polystyrene base, resulting in a durable and practical insulated surface. SCOPE: - Insulating and filtering slab all in one for accessible roofs. - Rehabilitation and conversion of non-walking roofs. - Technical paths in non walking gravel finished roofs. - Support for equipment in non walking roofs and facilities in general. - Technical decks over supports pads as per DANOSA System.

Specification

TECHNICAL DATA: - Dimensions: 500x500 (±2) mm - Mass: 15 (±1) Kg - Total thickness: 95 (±4%) mm - Bending Tensile Strength: ≥ 3.5 kN (UNE-EN 1339) Tensile Strength Compression to 28 days (concentrated load on Ø 20 cm): ≥ 30 KN (UNE-EN 12390-3) - Compression behavior of a 5%: ≥ 0.30 MPa (UNE-EN 1339) - Compression behavior of a 25%: ≥ 0.31 MPa (UNE-EN 1339) - External fire behavior: Broof (t1) (UNE-EN 1339) - Resistance to 10 J impact: ≤ 13 Ømm (DIT 550/10; DIT 551/10) - Point load strength to 250N: Flawless (DIT 550/10; DIT 551/10) ADDITIONAL TECHNICAL DATA: - Insulation thickness: 60 (±1) mm - Dimensions XPS: 500x500(±2) mm - Density of insulating: 35 Kg/m³ (EN-1602) - Reaction to fire insulation: E Euroclase (UNE-EN 13501-1) - Thermal conductivity: 0.034 W/m K (EN 12667 - EN 12939) - Dimensional Stability: ≤ 5 KPa (EN 12667 - EN 12939) - Minimum resistance to compression of XPS: ≥ 300 KPa - Deformation under load of 40 KPa: less than 5 % - Water absorption by immersion: ≤ 0.7 % - Water absorption by diffusion 50 %: ≤ 3 % - Water absorption by diffusion 60 %: ≤ 2.7 % - Water absorption by diffusion 80 %: 1.5 % - Thickness of concrete: 35 (±3) mm - Dimensions of concrete: 490 x 490 (±1) mm (UNE-EN 1339) - Fire performance of concrete: A Euroclase - Breaking load of concrete: ≥ 1.6 kN (UNE-EN 1339) - Concrete flexural strength: ≥ 1.3 MPa (UNE-EN 1339) - Compressive strength of concrete 3d: MPa (UNE-EN 12390-3: 2009) - Compressive strength of concrete 21d: 11.6 MPa (UNE-EN 12390-3: 2009) - Compressive strength of concrete 28d: 12.5 MPa (UNE-EN 12390-3: 2009) - Porosity interconnected pores: 20 ENVIROMENTAL INFORMATION: - Pre-consumer recycled content: 0 % - Post-consumer recycled content: 0 % - Manufacturing Location: Fontanar, Guadalajara (España) - Volatile organic compounds: 56 (ASTM E1980-11) PRESENTATION: - Length: 50 cm - Width: 50 cm - Total thickness: 95 (±4%) mm - Slabs per pallet: 52 ud - m²/pallet: 13 m² - Colour: White - Product Code: 711011

Technical specification

Unique ref.danolosa_95_blanca
Product familyInsulating Slab
Product groupPolystyrene
TypeObject (single object)
Date of publishing2019-03-08
Edition number1
Height (mm)500
Width (mm)500
Depth (mm)95

Links

Product urlhttp://portal.danosa.com/danosa/CMSServlet?node=711011&lng=2&site=4

Material mainAerated concrete
Designed inSpain
Manufactured inSpain
Weight Net (Kg)15

Classification

BIMobject CategoryBuilding Materials - Pavers & Stones
IFC classificationSlab
Uniclass 2015 CodeSs_30_14_15_17
Uniclass 2015 DescriptionConcrete porous paving systems
CSI MasterFormat 2014 Code03 41 16
CSI MasterFormat 2014 TitlePrecast Concrete Slabs
OmniClass Number23-13 25 19 11 11
OmniClass TitlePolystyrene Slab and Board Thermal Insulation
CSI UniFormat II CodeB3010
CSI UniFormat II TitleRoof Coverings
