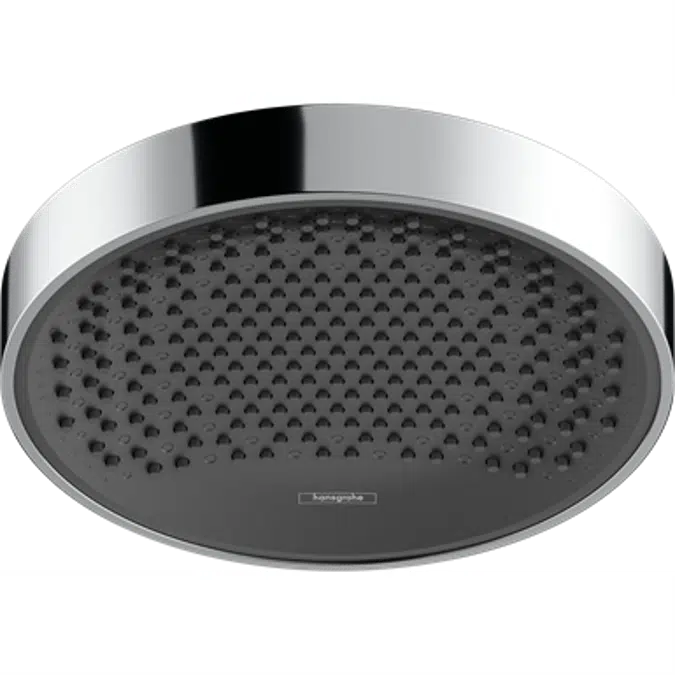

Rainfinity Overhead shower 250 1jet 2.5 GPM

Specification

Specification

• Surfaces: - 26228671 Matt Black - 26228001 Chrome - 26228701 Matt White - 26228821 Brushed Nickel Specification: • shower head size: 250 mm • spray type: PowderRain • ball-joint: overhead shower angle (2 x 5°) adjustable • frame: metal • material spray disc: aluminium • spray disc surface: graphite • maximum flow rate at 3 bar: 9,5 l/min • overhead shower removable for cleaning • installation: ceiling or wall • connection thread G ½ • connection dimension: DN15 • not suitable for continuous flow water heaters

Technical specification

Technical specification

• Unique ref.26228001
• Product familyOverhead showers
• Product groupRainfinity
• TypeObject (single object)
• Date of publishing2022-11-23
• Edition number1
• Height (mm)2.75
• Width (mm)9.88
• Depth (mm)9.88

Links

Links

• Product urlhttps://www.hansgrohe-usa.com/articledetail--26228671

Related

Related

• Material mainChrome
• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)1.8

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011383
• ETIM NameShower head
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
