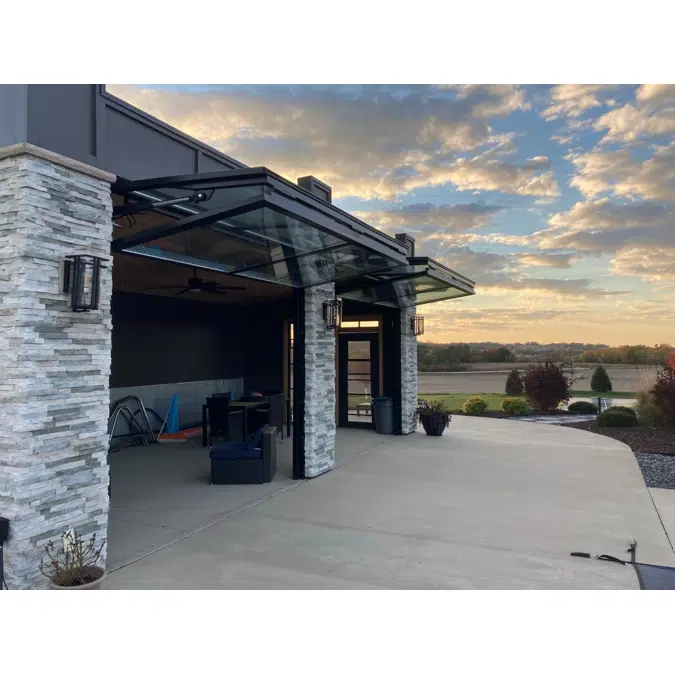

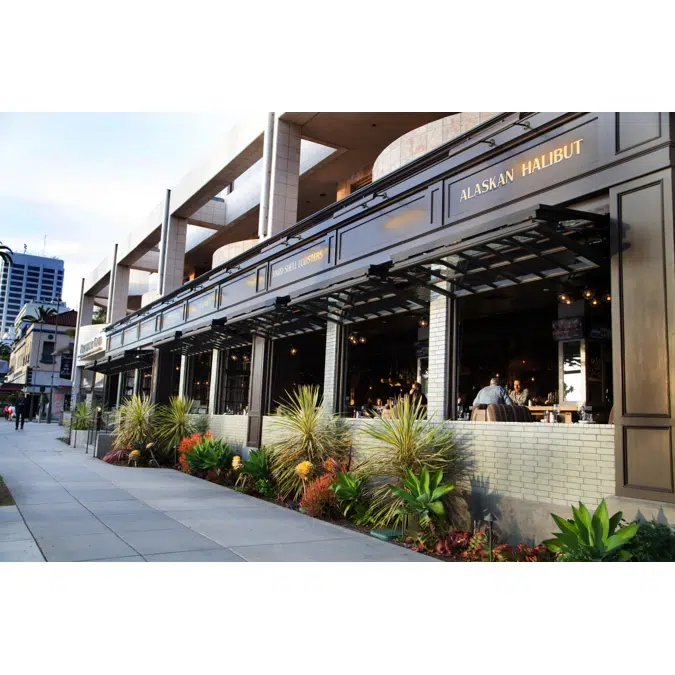

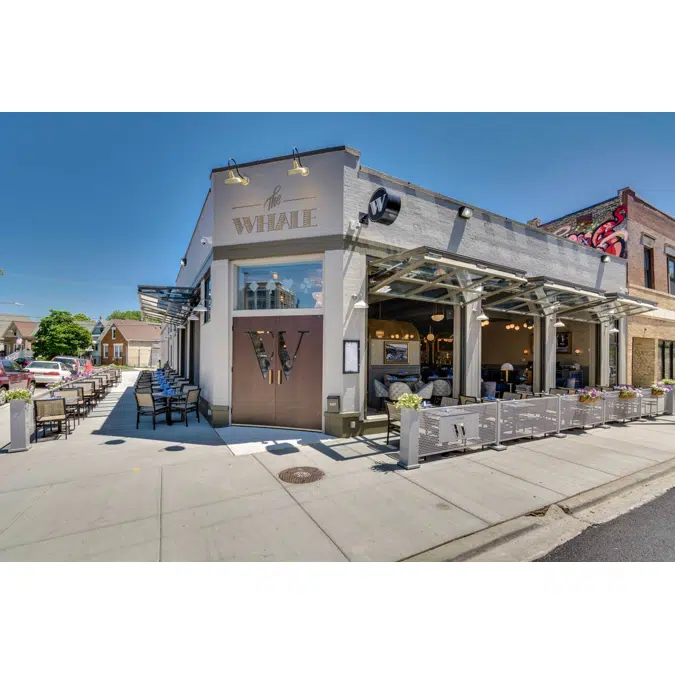

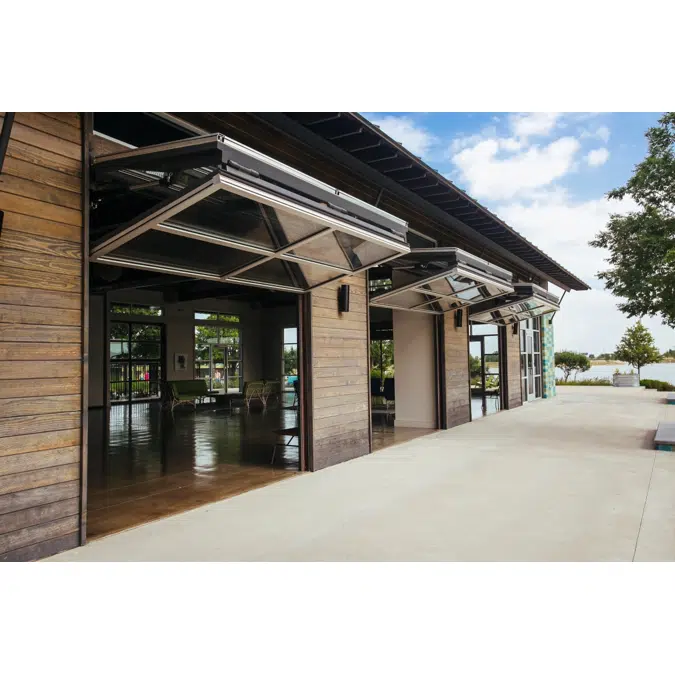

Bi-Fold Hydraulic Door & Window System

The patented Bi-Fold Hydraulic System opens vertically, allowing smooth, quiet access between environments with just the press of a button. By incorporating the Bi-Fold Door or Window System, the barrier between interior and exterior vanishes, letting the ambience of the outdoors flow in.

The Bi-Fold Hydraulic System utilizes hydraulic cylinders allowing for larger openings and heavier cladding/covering materials, and remains totally secure without the use of a locking mechanism. This system is offered in custom sizes, designed to fit your specific needs and is well suited for everything from private residential to large commercial storefront entry.

Specification

- Shipped powder-coat finished. A full array of standard, non-standard, and custom colors are available, with few exceptions.
- Total security without the use of locking mechanisms – The hydraulic cylinders draw the system panels tightly closed, without the use of aux. locking mechanisms, providing a safe, secure closure.
- Full perimeter weather seals
- Integral mounting frame to limit loads on the structure
- No floor/sill track is required – Nothing to impair movement through the opening

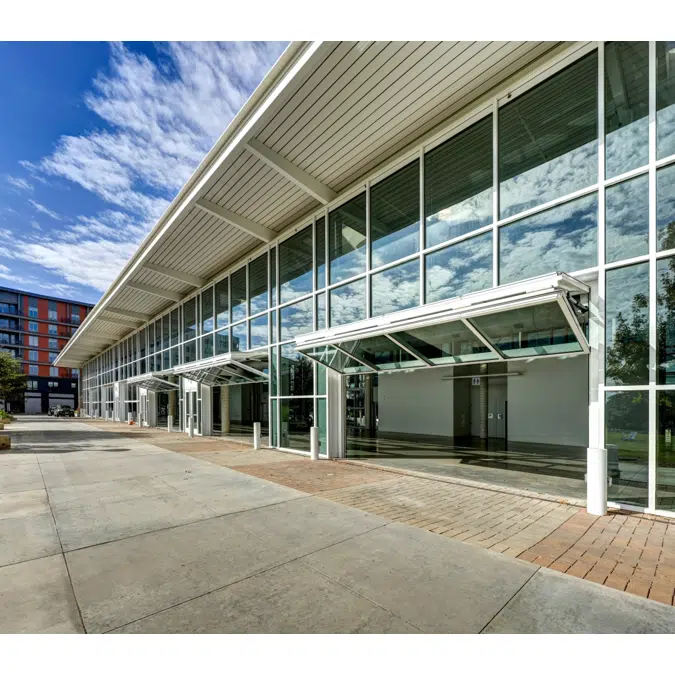

- When open the system forms an awning providing protection from the weather and sun
- Max. ranges 24' x 20′ high

Technical specification

Unique ref.hydraulically-operated-bi-fold-door-system
Product familyHydraulic
Product groupBI-Fold System
TypeObject (single object)
Date of publishing2026-08-14
Edition number1

Links

Product urlhttps://www.crowndoors.com/products/bi-fold/
Instruction videohttps://www.youtube.com/watch?v=BdnS8M6_oto&t=1695s

Material mainSteel
Material secondaryAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryDoors - Swing Doors
IFC classificationDoor
ETIM CodeEC001521
ETIM NameDoor sliding contact
Uniclass 2015 CodePr_30_59_24
Uniclass 2015 DescriptionDoorsets
CSI MasterFormat 2014 Code08 36 00
CSI MasterFormat 2014 TitlePanel Doors
OmniClass Number23-17 11 00
OmniClass TitleDoors
