BIM objects - Free download! Cisco Webex Room 70 Panorama

Cisco Webex Room 70 Panorama

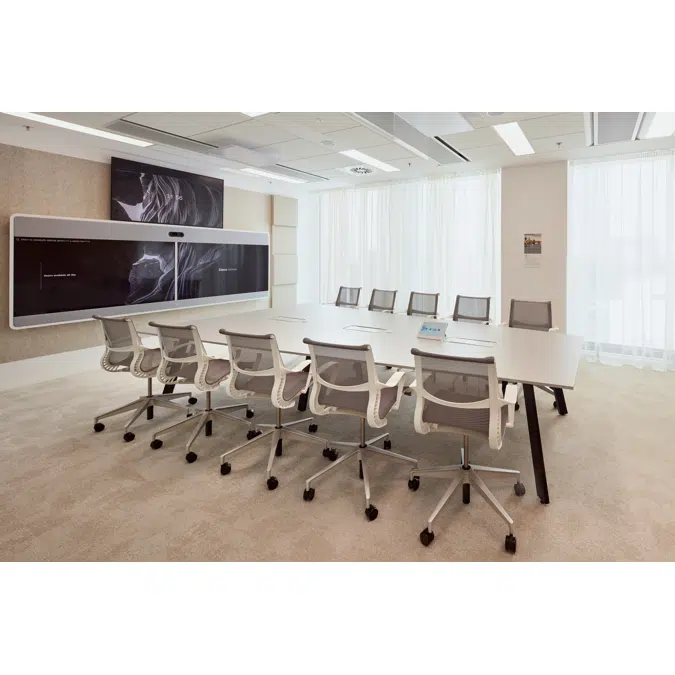

Cisco Webex Room 70 Panorama is a high-end video collaboration product within the Cisco Webex Room Series portfolio. These fully integrated systems combine beautiful design and powerful functionality into an all-in-one solution for medium to large rooms. The Room 70 Panorama features a powerful engine to build more complex and specialized video scenarios. Room 70 Panorama transforms your meeting spaces into a video collaboration hub, whether connecting teams across the world or in local meetings.

The Cisco Webex^® Room 70 Panorama is based on the Room 70D G2 and will be shipped as a complete technology package from Cisco. It includes everything you need to make it operational, including:

● Cisco^® Room 70 Panorama (70P) with two 70-inch LED displays and one 65-inch or 55-inch Samsung 4K display for presentations

● Cisco Webex Room Navigator controller

● Table microphones

● Presentation cables

● Wall-mount, wall-secured floor-standing or free-standing mounting kit

◦ 65-inch presentation display above system - wall mount or wall-secured floor standing only

◦ 55-inch presentation display below system – wall-secured floor standing or free standing only

Specification

Feature	Benefits
Design features	● One of the most powerful and feature-rich video systems available with the ultimate in video and audio quality● Panorama main video● Next-generation UHD (4K) video collaboration codec● Next-generation HD fully automatic camera● Includes 3 displays. Two 70-inch displays for video and one 65-inch or 55-inch display for presentation● Everything you need in one unit (displays, speakers, codec, camera, touch user interface, microphones, mounting accessories)● Wall-mount, wall-secured floor standing or free-standing mounting kit ◦ 65-inch presentation display above system - wall mount or wall-secured floor standing only ◦ 55-inch presentation display below system – wall-secured floor standing or free standing only ● Standards-compliant 1080p and 2160p solution - compatible with standards-based video without losing features
Smart meetings	● Brings intelligent views to medium- to large-sized rooms with discreet, integrated cameras ◦ Panorama video - using multiple camera lenses together to create a wide panorama view ◦ Best overview - automatically detects meeting participants and provides ideal framing ◦ Speaker tracking - detects and switches between active speakers and provides ideal framing ● Great audio experience with integrated speakers and external microphones● Automatic wake-up - system “wakes up” when someone walks into the room, and recognizes them through their mobile device● Easily controlled by the Cisco Webex Room Navigator or with a Cisco Webex ^™ app-enabled device● Supports switched conferencing for enhanced layouts and enabling video on multiple displays● Participate in Webex whiteboarding sessions from the Webex app; receive on-screen notification of shared whiteboard content (supported on cloud-registered devices)● HD collaboration with 1080p60 video and 2160p15 content● Simplified meeting-join experience with One Button To Push (OBTP)● End-to-end security
Smart presentations	● Utilizes three displays for video and content● Supports triple content sources for local meetings● 4K content sharing (local 30 fps; remote 15 fps)● Wired or wireless content sharing (supports Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from Macs and PCs)
Smart integrations	● Metrics - counts people in the room, enabling analytics for better resource planning● Supports Wi-Fi● Easily control room peripherals such as lights, room dividers, and curtains directly from the Cisco Webex Room Navigator control unit through customizable APIs (requires external third-party control system processor)
Performance features	● Optimal definition up to 1080p60● H.323/SIP up to 16 Mbps point to point● 6 simultaneous video inputs - three 4K and three full HD● Connect up to 8 microphones directly to the codec● Full duplex audio with high-quality stereo sound● Full Application Programming Interfaces (APIs)● Cisco Media Assure packet loss protection (Cisco ClearPath also supported)
Built for cloud and premises	● Flexibility to register on the premises or to the cloud through Webex● Hardware is optimized to run on a cloud platform for great experiences in shared rooms and spaces with easy access to hosted conferences

Technical specification

Unique ref.cisco-webex-room-panorama-business-class
Product familyVideo Conferencing
Product groupTelePresence
TypeObject (single object)
Date of publishing2021-11-13
Edition number1

Links

Product urlhttps://www.cisco.com/c/en/us/products/collaboration-endpoints/webex-room-panorama/index.html#~featured-content

Material mainPlastic
Material secondaryGlass
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryElectronics - Communication
IFC classificationObject
UNSPSC nameVideoconferencing systems
UNSPSC code45111902
Uniclass 2015 CodeSs_75_10_21_88
Uniclass 2015 DescriptionTelecommunications systems
CSI MasterFormat 2014 Code27 41 16.29
CSI MasterFormat 2014 TitleIntegrated Audio-Video Systems and Equipment for Board Rooms
OmniClass Number23-37 00 00
OmniClass TitleInformation and Communication Specific Products and Equipment
