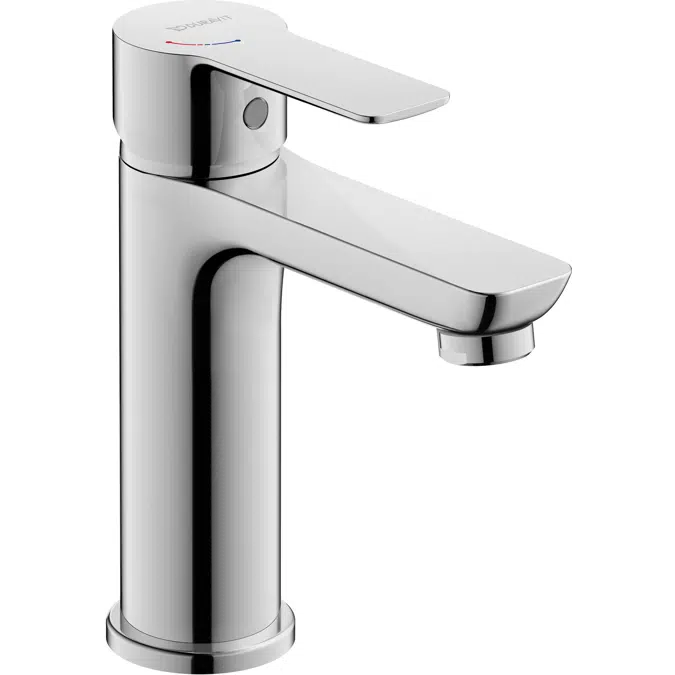

D-Code Single lever basin mixer M FreshStart und MinusFlow Chrome High Gloss - DC1023002

Easy-care and durable chrome surface
Energy-saving FreshStart function: In the middle position, only cold water flows initially. Only when you consciously move to the left is hot water mixed in, for reduced hot water consumption.
Flexible connecting hoses
Ideal for single bore faucets
One handle
Suitable for operation with a continuous-flow heater
Sustainable and hygienic: smooth and durable ceramic cartridge
The temperature limit can be individually adjusted to protect against excessively high temperatures
Well-formed and pleasantly soft water jet thanks to the addition of air (air function)
Without pull rod and drain assembly. Please order flush valve separately.

Specification

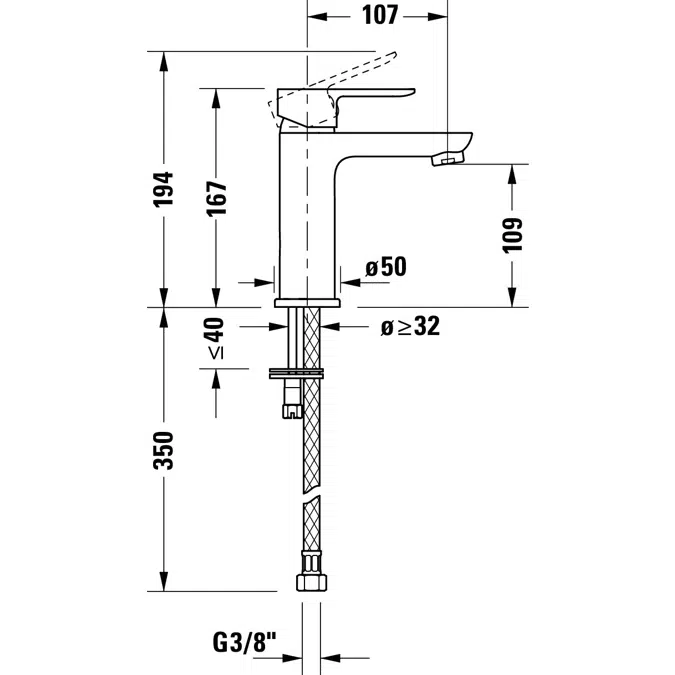

Duravit D-Code Single lever basin mixer M FreshStart und MinusFlow, FreshStart, MinusFlow, Chrome, Ceramic cartridge, Height: 167 mm, Spout reach: 107 mm, Connection type for water supply connection: Flexible connecting hoses, Dimension of connection hose: 3/8", Spray mode: Normal spray, Aerator, Temperature limit adjustable, Flow rate (3 bar): 4 l/min, recommended operating pressure: 1 - 5 bar, Handle version: - DC1023002010 Duravit D-Code Single lever basin mixer M FreshStart und MinusFlow, FreshStart, MinusFlow, Black Matt, Ceramic cartridge, Height: 167 mm, Spout reach: 107 mm, Connection type for water supply connection: Flexible connecting hoses, Dimension of connection hose: 3/8", Spray mode: Normal spray, Aerator, Temperature limit adjustable, Flow rate (3 bar): 4 l/min, recommended operating pressure: 1 - 5 bar, Handle version: - DC1023002046

Technical specification

Unique ref.d-code-single-lever-basin-mixer-m-freshstart-und-minusflow-chrome-high-gloss-dc1023002
Product familyFaucets & Showers
Product groupBasin mixers
Date of publishing2025-03-16
Edition number1
Height (mm)167
Width (mm)149
Depth (mm)43
