Vernis Blend Showerpipe 200 1jet Reno

Specification

Specification

• Surfaces: - 26272007 Chrome - 26272677 Matt Black Specification: • consists of: overhead shower, hand shower, shower hose, hand shower holder • overhead shower Vernis Blend 200 1jet • shower head size overhead shower: 205 mm • spray type overhead shower: Rain • ball-joint: overhead shower angle adjustable • spray type hand shower: Rain, IntenseRain • maximum flow rate at 3 bar: 15,3 l/min • flow rate of hand shower at 3 bar: 8,2 l/min • minimum flow pressure: 1 bar • mounting type: exposed installation • shower bar diameter: 19 mm • height-adjustable slider with locking push-button slider • shower arm length: 400 mm • water connection: Metaflex shower hose 80 cm and 160 cm • connection dimension: DN15 • connection thread G ½ • suitable for continuous flow water heaters with an output of 18 kW • min. operating pressure: 1 bar • max. operating pressure: 10 bar

Technical specification

Technical specification

• Unique ref.26272007
• Product familyShower pipes universal
• Product groupVernis Blend
• TypeObject (single object)
• Date of publishing2022-11-23
• Edition number1

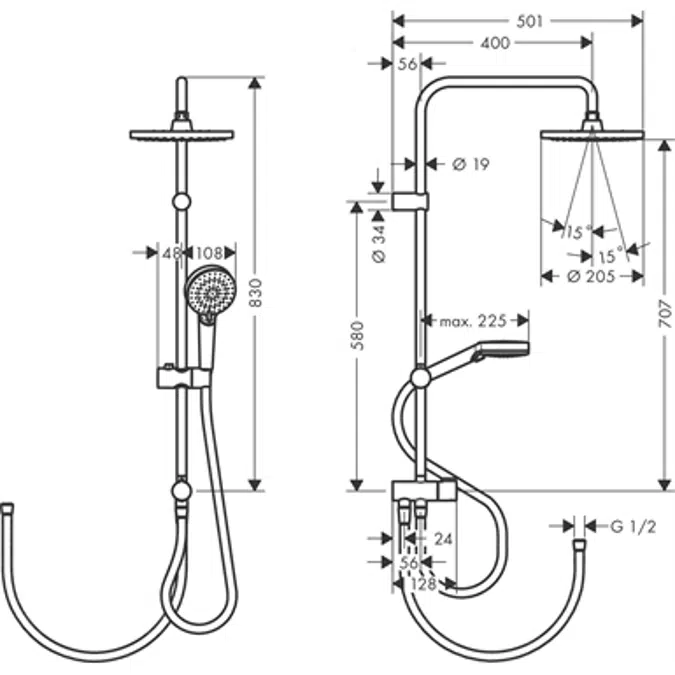

• Height (mm)1130
• Width (mm)205
• Depth (mm)501

Links

Links

• Product urlhttps://www.hansgrohe.com.cn/articledetail--26272007

Related

Related

• Material mainChrome
• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)2.6

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011613
• ETIM NameShower column/panel
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
