Vernis Blend Single lever bath mixer for concealed installation

Specification

Specification

• Surfaces: - 71449007 Chrome - 71449677 Matt Black Specification: • 2 functions • maximum flow rate at 3 bar: 14,5 l/min • flow rate for bath spout at 3 bar: 14,5 l/min • flow rate of hand shower at 3 bar: 10 l/min • ceramic cartridge • temperature limitation adjustable • diverter with automatic resetting • connection type: basic set • min. operating pressure: 1 bar • max. operating pressure: 10 bar

Technical specification

Technical specification

• Unique ref.71449007
• Product familyBath mixers
• Product groupVernis Blend
• TypeObject (single object)
• Date of publishing2022-11-23
• Edition number1

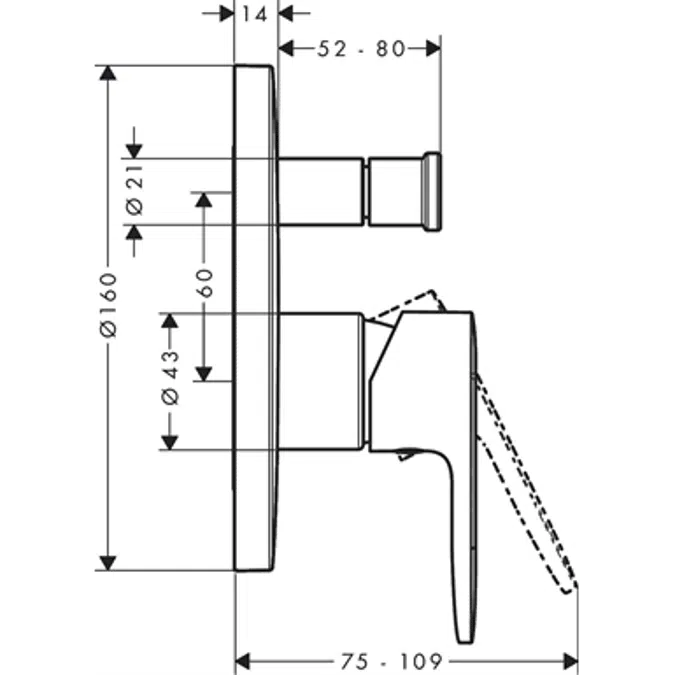

• Height (mm)183
• Width (mm)160
• Depth (mm)81

Links

Links

• Product urlhttps://www.hansgrohe.com.cn/articledetail--71449007

Related

Related

• Material mainChrome
• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)0.4

Classification

Classification

• BIMobject CategorySanitary - Taps & Mixers
• IFC classificationValve
• ETIM CodeEC010862
• ETIM NameBath mixing tap
• UNSPSC nameSanitary ware
• UNSPSC code301815
• Uniclass 2015 CodePr_40_20_87
• Uniclass 2015 DescriptionTaps and water supply outlet fittings
• CSI MasterFormat 2014 Code22 41 39
• CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
• OmniClass Number23-31 11 00
• OmniClass TitleFaucets
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
