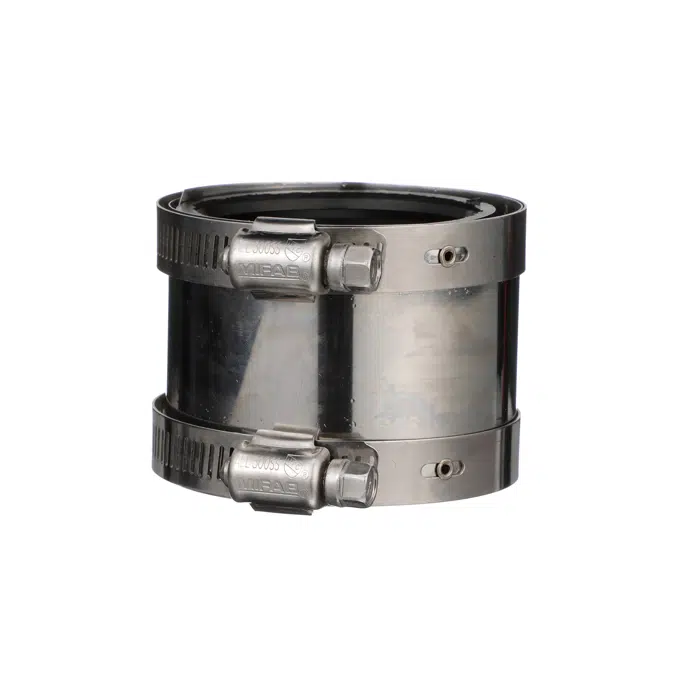

MI-HUB-TRP Transition No Hub Coupling

MI-HUB-TRP Transition No Hub Coupling

MIFAB® Series MI-HUB-TRP shielded transition couplings are manufactured with gaskets made from neoprene compound that meets the requirements of ASTM C-564 housed inside a Type 300 stainless steel shield. Two Type 300 stainless steel clamps tightened with 5/16” Type 300 stainless steel hex head screws surround the shield to provide the sealing force. The MI-HUB-TRP Series of shielded transition couplings are tested and certified to ASTM Standard 1460-2012 and CSA Standard B602-2016 and listed with I.A.P.M.O. All models are listed to the National Plumbing Code of Canada and relevant Canadian Standard(s) and bear the cUPC mark of conformity. Non constant temperature rating is 140 F.

Specification

SKUs: MI-HUB-TRP-330, MI-HUB-TRP-430, MI-HUB-TRP-440, MI-HUB-TRP-660

Technical specification

Unique ref.mi-hub-trp-330-transition-no-hub-coupling
Product familyCouplings
Product groupTransition Couplings
TypeObject (single object)
Date of publishing2021-02-26
Edition number1

Links

Product urlhttps://www.mifab.com/products/mi-hub-trp-330/
Installation instructionshttps://www.mifab.com/products/mi-hub-trp-330/
Technical descriptionhttps://www.mifab.com/Catalog/Library/MI-HUB-TRP.pdf

Related

Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryPlumbing - Joints
UNSPSC namePlumbing fixtures
UNSPSC code3018
Uniclass 2015 CodeAc_10_40_67
Uniclass 2015 DescriptionPlumbing
OmniClass Number23-27 43 00
OmniClass TitlePipe Fittings
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
United States
