URBINO

URBINO

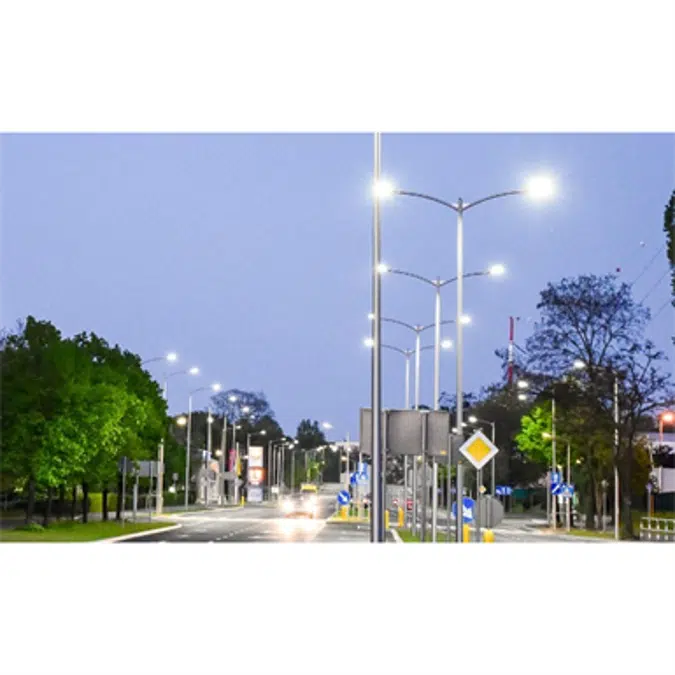

Street light fixture with a modern and functional design.

Street light fixture with lens optics and flat tempered glass. Powder coated aluminium housing. Mounting bracket for mast top.

Comes with extra 10kV overload protection.

2DIM 1-10V driver supplied as standard. On request, 4DIM DALI driver is supplied.

Mounted cable 2x1.5mm to different mast heights in relation to the lumen effect (5.5m - 7.5m - 9.5m). This gives quick installation and you do not have to open the luminaire housing.

Custom versions for pedestrian crossing.

Specification

Material: Aluminium
Light source: LED (included)
Mounting: Top of Pole
Dimensions L x W.: 550 x 250
Dimensions H: 100
IP-Rating: IP66
Voltage: 230V
(Dimensions in mm)

Technical specification

Unique ref.SolarLight_URBINO
Product familySolar Light
Product groupRoad
TypeObject (single object)
Date of publishing2019-11-21
Edition number1
Height (mm)100
Width (mm)250
Depth (mm)550

Links

Product urlhttps://solarlight.no/produkter/eksterioer-armaturer/vei--gate/urbino-led
Installation instructionshttps://solarlight.no/produkter/eksterioer-armaturer/vei--gate/urbino-led
Instruction videohttps://www.bimobject.com/solar/product/solarlight-modellingguide
Product certificationhttps://solarlight.no/produkter/eksterioer-armaturer/vei--gate/urbino-led
Technical descriptionhttps://solarlight.no/produkter/eksterioer-armaturer/vei--gate/urbino-led

Related

Material mainAluminium

Classification

BIMobject CategoryLighting - Outside
IFC classificationLight Fixture
ETIM CodeEC000062
ETIM NameLuminaire for streets and places
Uniclass 2015 CodePr_70_70_48_73
Uniclass 2015 DescriptionRoad lighting luminaires
CSI MasterFormat 2014 Code26 56 19
CSI MasterFormat 2014 TitleRoadway Lighting
OmniClass Number23-35 47 11
OmniClass TitleLighting Fixtures
