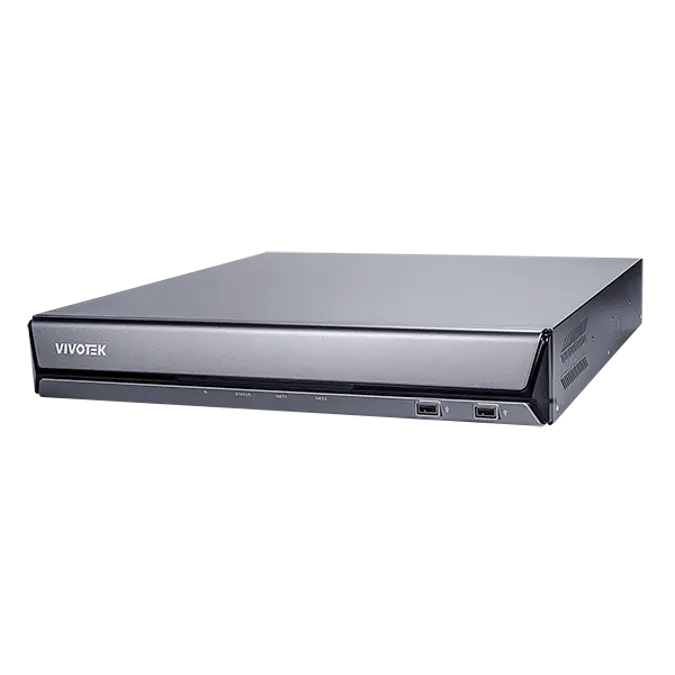

ND9542P Core+ AI H.265 32-CH Embedded PoE NVR

Technical Specifications

• Descriptions: 32-CH Embedded PoE NVR

Device

• OS: Embedded Linux
• Watchdog: Hardware + Software
• Power Restoration: System Restart Automatically after Power Recovery

Display

• LiveView Display: 32 Channels
• Multi Layout Display: 1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4, 1M+31
• Video Output: HDMI x1, VGA x1
• Display Resolution: 3840x2160, 1920x1080, 1280x720
• Dual Monitor: Supported
• Stream Application: Constant\Auto Adaptive Stream
• Fisheye Dewarp:
  • Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R
  • Web: 1O, 1R, 1P
• PTZ Operation: Direction Control, Home, Iris, Preset, Patrol (Group)

Video

• Video Format: MJPEG, H.264, H.265
• Graphic Decoder: Hardware decoding
• Decoding Resolution: Up to 7680x2560
• Decoding Capability:
  • H.265/H.264:
    • 3840x2160 @ 90 fps
    • 1920x1080 @ 360 fps

Audio

• Audio Format: G.711, G.726, MPEG-2 AAC-LC

Record

• Recording Time (sec.):
  • Pre-Record: 5 (Max. 10)
  • Post-Record: 20 (Max. 300)
• Recording Stream: Dual
• Recording Throughput: 192 Mbps
• Recording Mode: Continuous, Schedule, Manual, Event, Activity Adaptive Streaming
• Recording Setting: Recycle (unit: Day)
• Watermark: Supported
• Seamless Recording: Supported

Storage & Backup

• DISK Devices: Internal x4 (3.5") (HDD is purchased separately)
• HDD Max. Capacity: Please refer to HDD supported list on VIVOTEK website
• RAID: RAID 0, 1, 5
• Disk Management: Create, Format and Remove Disk
• HDD S.M.A.R.T
• External Storage: USB Storage (USB 3.0)
• Video Clip Export: USB pen drive (FAT Format)
• Schedule Backup: FTP

Playback

• Playback Display: 4 Channels
• Multi Layout Display: 1x1, 2x2, 1P+3, 3V
• Playback Control: Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
• Video Search: By Calendar, Date/Time, and Alarm
• Thumbnail Explorer (Storyboard): Listing the thumbnail of recorded video (Max. 2 CH)
• Snapshot: JPEG
• Video Clip Export: EXE

Network

• Ethernet: 10/100/1000Mbps Ethernet (RJ-45) x 2
• Network Throughput in total: 224 Mbps
• PoE: 802.3at/af Compliant PoE Ports x 16 (Total Max. 200W)
  • DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.
• PoE Management: Supported
• Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS

External Interface

• USB:
  • Front: 2 (USB 2.0)
  • Back: 1 (USB 3.0)
• Alarm In: 16
• Alarm Out: 8
• Audio In: 3.5 Phone Jack Audio Input x1 (HW available, FW feature not supported yet)
• Audio Out: 3.5 Phone Jack Audio Output x1
• RS485: 1 (HW available, FW feature not supported yet)

System

• Camera Integration: ONVIF Profile S
• Event: Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Video loss
• Event Action: Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, APP Notification by cloud service
• User Management: User level: administrator, regular user
• Log: System, Recording, User, Error
• Date&Time: Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
• Language: Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, Arabic

Deep Search

• Object search: People, Vehicle
• Scene search: Line crossing, Intrusion, Loitering
• Attribute search:
  • People: Gender, Age, Clothing Color, Accessories
  • Vehicles: Type, Color
• Note: "Up to 20-CH metadata recording supported when using Extended mode"

Advance Features

• VCA Counting Solution: Supported
• VCA Event Search: Smart VCA, Smart 360 VCA
• Smart Search II: Supported
• Trend Micro IoT Security: Supported (3-year free trial)
• Cybersecurity Management: Supported

Remote Client

• Software AP: Shepherd, VSS
• Mobile/Tablet App: iViewer (Android & iOS)
• Web Browser: Chrome
• Cloud service: VORTEX Connect

General

• Power Input: 100-240V AC, 50/60Hz
• Power Consumption: Max. 300 W
• Dimensions: 432 (W) x 421 (D) x 66 (H) mm
• Weight: 4.6 kg (without HDD)
• Operating Temperature: -10°C ~ 55°C (14°F ~ 131°F)
• Humidity: 0 ~ 95%
• Safety Certifications: CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
