|Product group:||Cable Transmission and Reception Control Equipment|
|Date of publishing:||2019-06-21|
|Type:||Object (single object)|
The N3000 Video over IP Series extends the reach of SVSI's Networked AV solutions to the WAN for streaming, video to desktop, digital signage, set-top boxes, or mobile devices applications. Fully integrated with existing Networked AV control options, the N3000 Series delivers the highest quality HD video content at the lowest bandwidth for the most demanding applications. Moving video to or from the Cloud just became a lot easier with the N3000.
The N3000 Series' H.264 compression engine delivers low-latency 1080p60 video at half the bandwidth of comparable encoders. High profile H.264 encoders output unicast or multicast to one or more N3000 Series decoders. Multiple selectable streaming protocols (RTP, RTSP, and more) allow for software endpoints during video to the desktop applications or third-party hardware endpoints like Roku, Amino, or Google TV. Adjustable bit-rates from 32-Kbps to 10-Mbps give the highest video fidelity at the lowest bandwidths on the market in keeping with SVSI's commitment to provide unsurpassed Networked AV quality.

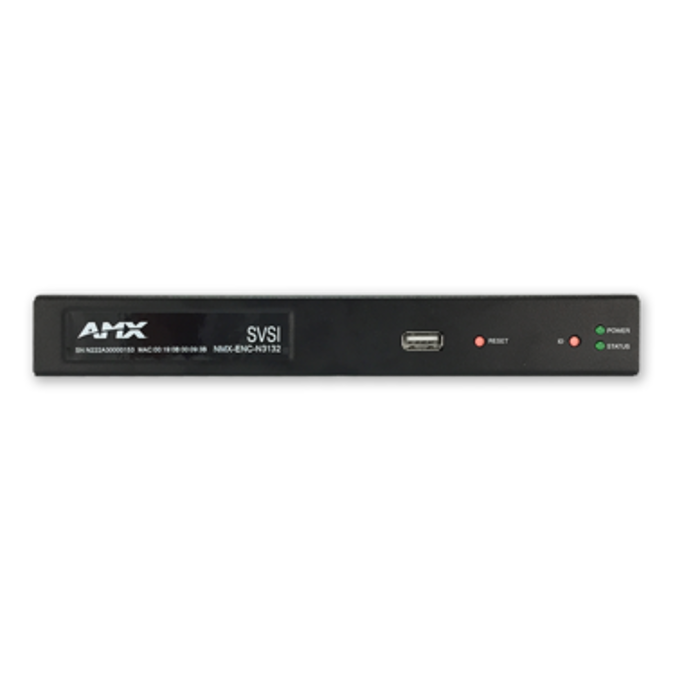

H.264 encoder includes IR, serial, balanced audio, RJ45 and 1GB SFP (fiber or copper) network connections, digital HDMI and analog VGA video input. H.264 encoder card requires NMXACC-N9206 cage.
The NMX-ENC-N3132 is the perfect solution for quality streaming over low bit rate WAN. Common applications include distance education, Multi-Site Enterprise, and IPTV Streaming.
|COBie Product Data Sheet:|
The Qr code includes the static URL below and will bring you back to this page if scanned by a device like iPhone or smartphone
|Designed in:||United States|
|Manufactured in:||United States|
|BIMobject Category:||Electronics - Communication|
|IFC classification:||Electric Distribution|
|UNSPSC name:||Electrical controls and accessories|
|Uniclass 1.4 Code:||JY65|
|Uniclass 1.4 Description:||Electrical accessories|
|Uniclass 2.0 Code:||PR-26-27-27|
|Uniclass 2.0 Description:||Electrical Accessories|
|Uniclass 2015 Code:||Pr_70_75_04|
|Uniclass 2015 Description:||Audio, data and visual outlet plates and controllers|
|NBS Reference Code:||26-27-27|
|NBS Reference Description:||Electrical Accessories|
|CSI MasterFormat 2014 Code:||11 52 00|
|CSI MasterFormat 2014 Title:||Audio-Visual Equipment|
|OmniClass Number:||23-37 15 00|
|OmniClass Title:||Audio Visual Equipment|
All BIM objects are real products from real manufacturers confirmed and approved
