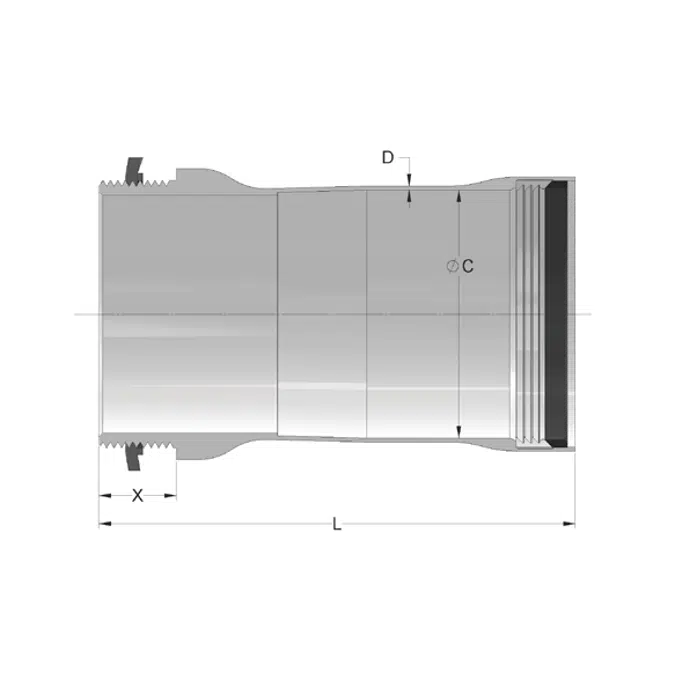

FRE Composites - Above Ground - Standard Wall (SW) - ID SW Box Connector

FRE Composites Above Ground Fiberglass Conduit system consists of conduits, fittings, conduit bodies and adaptors. It is designed to provide power, telecommunications and transit utilities as well as commercial and industrial markets with a reliable, easily installed carrier for exposed applications. UL Listed and CSA Certified, this system is designed for use above ground as described in the National Electrical Code (NEC) for non-hazardous locations and Canadian Electrical Code (CEC) Part 1. FRE_® Above Ground Conduit system is a better, safer, more economical, and longerlasting than PVC, Coated Steel and Rigid Galvanized Steel conduit.

Specification

ADVANTAGES
- Best corrosion protection of any conduit material
- Nonmetallic. Will not rust or corrode
- Fire resistant and non-toxic
- Non-conductive, assuring a safe system
- Thermal expansion rate is similar to RMC
- Simple push-fit assembly (TriSeal^TM one piece injection moulded gasket) – no threading of joints required
- Low coefficient of friction. Smooth inner wall results in longer cable pulls with no burn-through
- A much more economical installation compared to PVC coated steel and RMC
- Lightweight: A 19.68 ft. (6 m) section of 4" (102 mm) conduit weighs less than15 lbs. (7 kg.)
FEATURES
- Suitable for indoor use (non-hazardous locations)
- Available in 3/4" (19 mm) through 8" (203 mm) diameters
- Complete line of elbows, fittings and conduit bodies
- Field bendable with hot box
- Special colors available upon request
- UL2515/CSA C22.2 No.2515
ENGINEERING
- Chemical Inertness. Impervious to a wide spectrum of chemicals and fuels
- Contains no chlorine, halogen or other toxic materials
- Temperature range from -40°F to +230°F (-40°C to +110°C)

Technical specification

Unique ref.FRE-Composites-Above-Ground-SW-ID-Box-Connector
Product familyFRE Composites
Product groupAbove Ground SW IPS Fiberglass Conduit System
TypeObject (single object)
Date of publishing2022-03-09
Edition number1

Links

Product urlhttps://frecompositesinc.com/products/epoxies/above-ground.html
Instruction videohttps://youtu.be/wImyJPjdPyo
Technical descriptionhttps://frecompositesinc.com/docs/Elbows/FRE-Fiberglass-Elbows.pdf

Material mainFiberglass

Classification

BIMobject CategoryElectrical - Distribution
Uniclass 2015 CodePr_65_70_11_20
Uniclass 2015 DescriptionConduit fittings
CSI MasterFormat 2014 Code26 05 33.13
CSI MasterFormat 2014 TitleConduit for Electrical Systems
OmniClass Number23-35 33 17
OmniClass TitleElectrical Conduits
