W**AA & W**LA Series Wall-Mount Air Conditioner, Left and Right-Hand Configurable

Unique ref.: bard-1025
Brand: Bard Manufacturing
Product family: Packaged Air Conditioners
Product group: W**AA Series | W**LA Series
Date of publishing: 2016-09-09
Edition number: 1
Type: Object (single object)
Download (4)

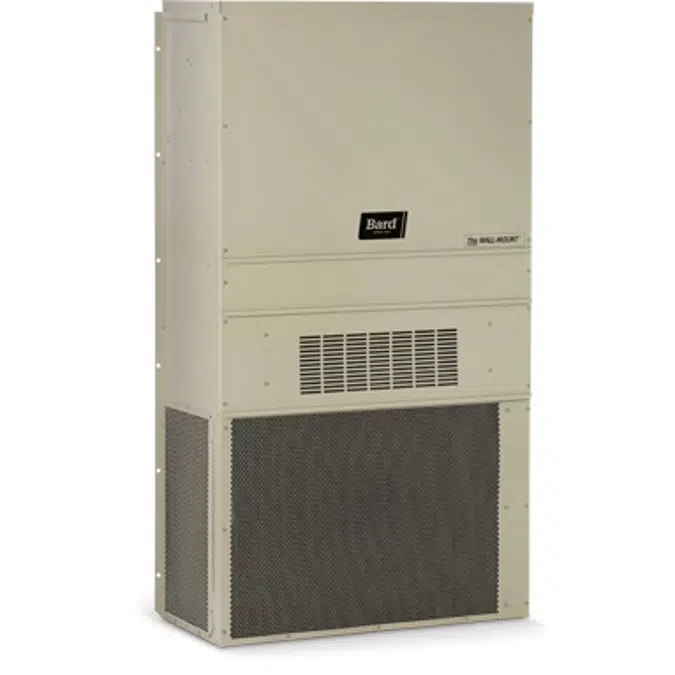

The Bard Wall-Mount Air Conditioner is a self-contained energy efficient system, which is designed to offer maximum indoor comfort at a minimal cost without using valuable indoor floor space or outside ground space. This unit is the ideal product for versatile applications such as: new construction, modular offices, school modernization, telecommunication structures, portable structures or correctional facilities. Factory or field installed accessories are available to meet specific job requirements.

Bard Manufacturing is a fourth-generation family-owned business that has been a leading provider of SPVU climate control solutions for over 100 years. We are recognized for designing, manufacturing and servicing high-quality products that you can trust to deliver performance, innovative technology and reliability. Here at Bard we provide customized climate control solutions that tailor to the unique needs and challenges of each individual market that we serve, which include schools, modular buildings, light commercial applications, telecommunications and international. Whatever the need, application or market, Bard manufacturing has a product that will exceed your expectations and deliver true quality and innovation backed by the best service in the business. That's the Bard difference.

Material main:
Material secondary:
Designed in:
Manufactured in:

BIMobject Category: HVAC - Air Conditioning
This product is available in:
North America
  • United States

BIMobject SEEK Properties

HVAC - Air Conditioning

Name Value
Cabinet Material Galvanized 20 ga Zinc Coated Steel
Cooling Capacity 17000 ; 24600 ; 30000 ; 36400 ; 41500 ; 48000 ; 59000 ; 71000
Energy Efficiency Rating - EER Up to 10.3
Refrigerant Type R-410A
Voltage 208/230 V | 460 V

Bard Manufacturing


Name Value
Nominal Cooling Capacity 1.5 ton - 6.0 ton
Nominal Heating Capacity 13,600 Btuh - 56,500 Btuh
Voltage-Phase-Hertz 230/208 V - 1 Phase - 60 Hz | 230/208 V - 3 Phase - 60 Hz | 460 V - 3 Phase - 60 Hz
Nominal Airflow - CFM 600 CFM | 800 CFM | 1000 CFM | 1100 CFM | 1350 CFM | 1550 CFM | 1800 CFM | 1900 CFM
Electric Heat Option Available Option
Cabinet Finish Baked On Textured Enamel
Compliant Vent Options Barometric Fresh Air Damper (BFAD) | Commercial Room Ventilator (CRV) | Economizer | Energy Recovery Ventilator (ERV)
Cabinet Finish - Standard Color Beige
Application Schools | Equipment Shelters & Telecom | Modular | Light Commercial & Mobile
Compressor W24 - W48 & W72: Scroll Compressor | W60: Recip Compressor
Dehumidification W30AAD-W60AAD
Indoor Blower Motor W72AA-ECM Variable Speed | W18-W60-PSC
Configuration and Location Vertical Exterior Wall-Mount
Cabinet Finish - Optional Colors White | Buckeye Gray | Desert Brown | Dark Bronze | Aluminum | Stainless Steel
Manufactured In USA Yes
