COMAX® P Reinforcement Continuity System

COMAX® P Reinforcement Continuity System

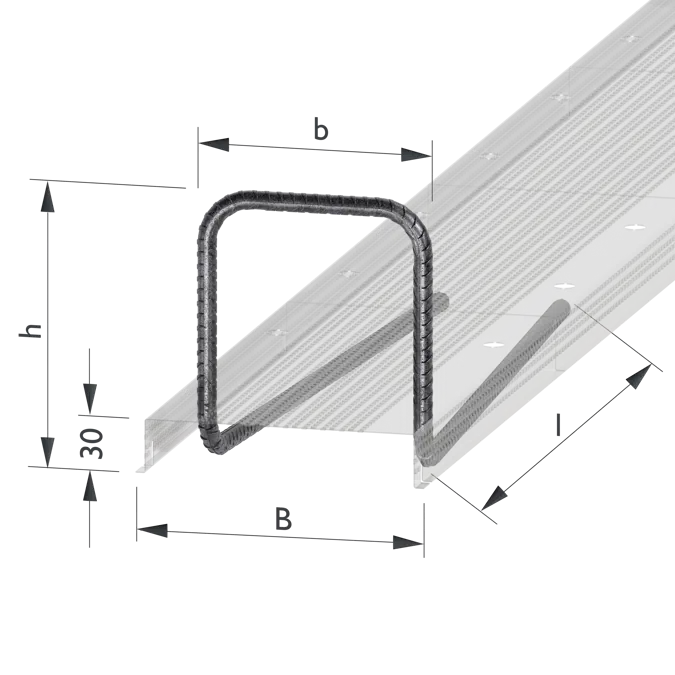

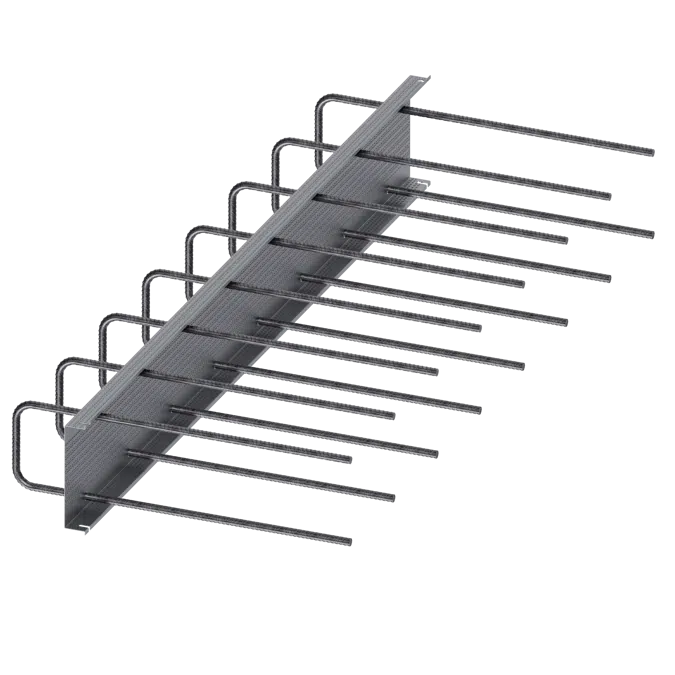

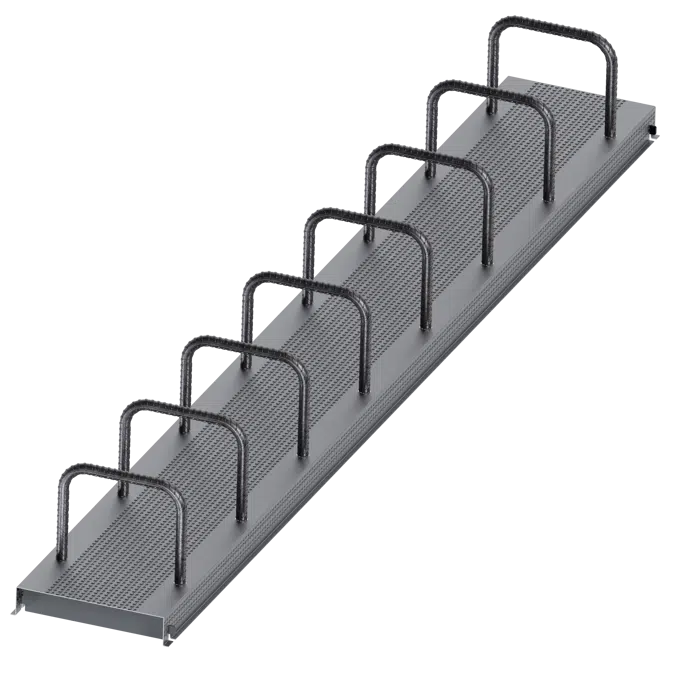

The COMAX® P Reinforcement Continuity System is designed to provide a force-transmitting and structurally engineered connection between reinforced concrete components cast in separate concreting stages. The prefabricated reinforcement continuity bars are housed in a galvanized, perforated protective box with a zipper cover. The perforated design of the protective box promotes mechanical interlock at the construction joint and ensures reliable load transfer between the concreting stages.

The zipper cover allows the protective box to be opened easily and provides quick access to the reinforcement continuity bars for connection to the subsequent concreting stage.

Specification

COMAX® P Reinforcement Continuity System with prefabricated reinforcement continuity bars housed in a galvanized, perforated protective box with zipper cover, for forming reinforcement connections between reinforced concrete components cast in separate concreting stages.
Design in accordance with General Building Approval / General Type Approval No. Z-21.8-2056. Roughness coefficient c in accordance with the approval: 0.4 longitudinally / 0.5 transversely. The protective box enables a defined formation of the construction joint and protects the reinforcement continuity bars until the subsequent concreting stage. The zipper cover can be removed without additional tools.
Supply and installation in accordance with the manufacturer's installation and application instructions. Various configurations are available with regard to reinforcing steel diameter, element width and stirrup spacing.

Technical specification

Unique ref.comax-p
Product familyReinforcement Systems
Product groupReinforcement Continuity Systems
TypeBuilding Materials
Date of publishing2026-10-12
Edition number1

Links

Material mainGalvanized steel
Material secondaryReinforcement
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryConstruction Materials - Reinforcement
IFC classificationReinforcing Bar
Uniclass 2015 CodePr_20_96_71_14
Uniclass 2015 DescriptionCarbon steel ribbed bar reinforcement
CSI MasterFormat 2014 Code03 21 00
CSI MasterFormat 2014 TitleReinforcement Bars
OmniClass Number23-13 31 21 11
OmniClass TitleReinforcement Components
