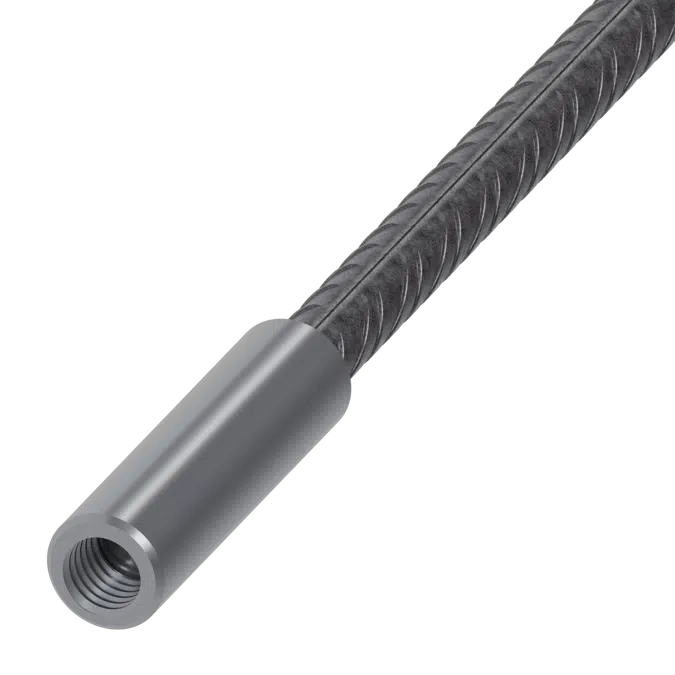

GripTec GTB screw connections

BETOMAX® GripTec GTB screw connections provide form-fit flow-press couplings for reinforcing steel under static and dynamic loading. The system enables force-transmitting connections of reinforcing steel and allows the load-bearing capacity of the connected bars to be transferred in tension and/or compression.

With a wide range of connection types, GripTec GTB is suitable for various applications in reinforced concrete and precast construction, as well as for specific connection and joining requirements.

Product benefits:

High load-bearing capacity in tension and compression
Suitable for static and dynamic loading
Various connection types for different applications
Suitable for B 500 B and B 500 C reinforcing steel as well as suitable stainless reinforcing steels
Factory-tested components
Colour-coded accessories for clear identification
Site-friendly installation using specified tightening torques

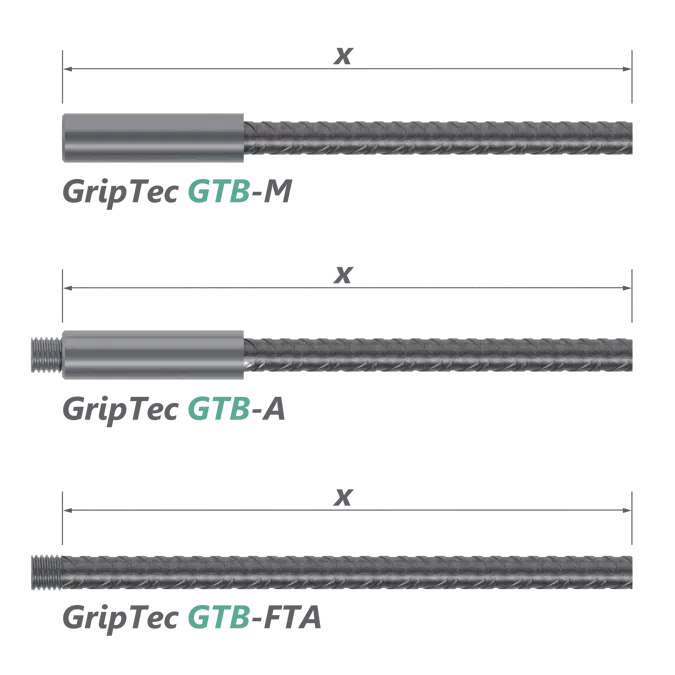

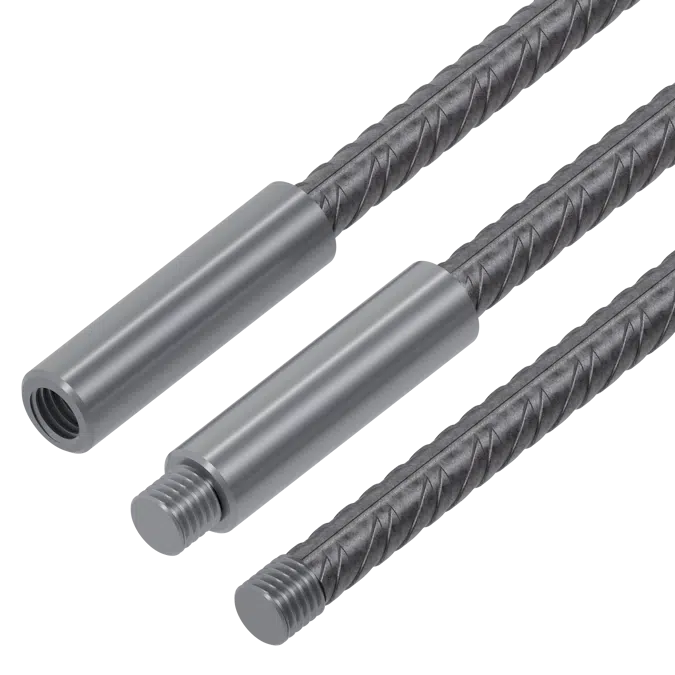

Available types: GTB-A + GTB-M, GTB-FTA, GTB-R, GTB-P, GTB-EV, GTB-AN, GTB-EK and GTB-STB.

Specification

Mechanical flow-press coupling BETOMAX® GripTec GTB for the force-transmitting connection of reinforcing steel under static and dynamic loading. The connection is designed to transfer the load-bearing capacity of the connected reinforcing steel in tension and/or compression in accordance with German general building authority approval No. Z-1.5-133 and the applicable approvals for the respective connection types.
The connection is made using a metric thread and installed with the specified tightening torque. The system is suitable for B 500 B reinforcing steel and, in accordance with the respective approval, for additional reinforcing steel grades and stainless reinforcing steels.
Suitable for applications in cast-in-place and precast concrete construction as well as for corresponding connection and joining applications.
Manufacturer: BETOMAX Systems GmbH & Co. KG
Product: BETOMAX® GripTec GTB
Type: GTB-A + GTB-M, GTB-FTA, GTB-R, GTB-P, GTB-EV, GTB-AN, GTB-EK or GTB-STB
Reinforcing bar diameter: According to the selected connection type and applicable approval
Quantity: pcs.

Technical specification

Unique ref.griptec-gtb
Product familyReinforcement Systems
Product groupMechanical Rebar Connections
TypeBuilding Materials
Date of publishing2026-10-12
Edition number1

Links

Product urlhttps://www.betomax.com/en/products/reinforcement-technology/griptec-gtb-screw-connections

Material mainSteel
Material secondaryReinforcement
Designed inGermany
Manufactured inGermany

Classification

BIMobject CategoryConstruction Materials - Reinforcement
IFC classificationReinforcing Bar
Uniclass 2015 CodePr_20_96_71_14
Uniclass 2015 DescriptionCarbon steel ribbed bar reinforcement
CSI MasterFormat 2014 Code03 21 00
CSI MasterFormat 2014 TitleReinforcement Bars
OmniClass Number23-13 31 21 11
OmniClass TitleReinforcement Components
