MEGAPACK

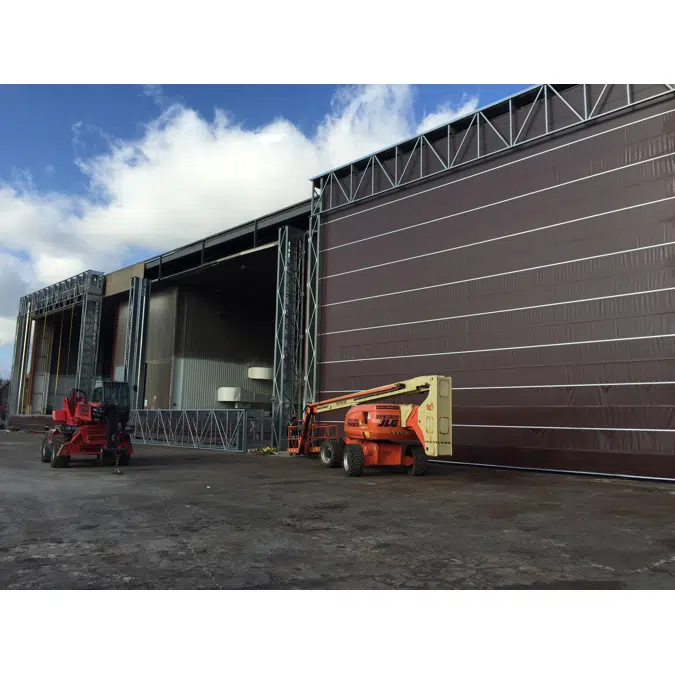

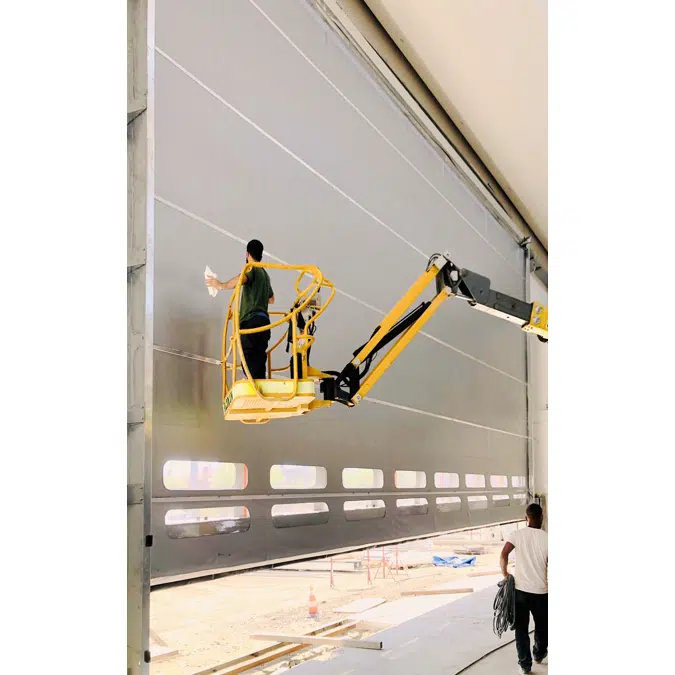

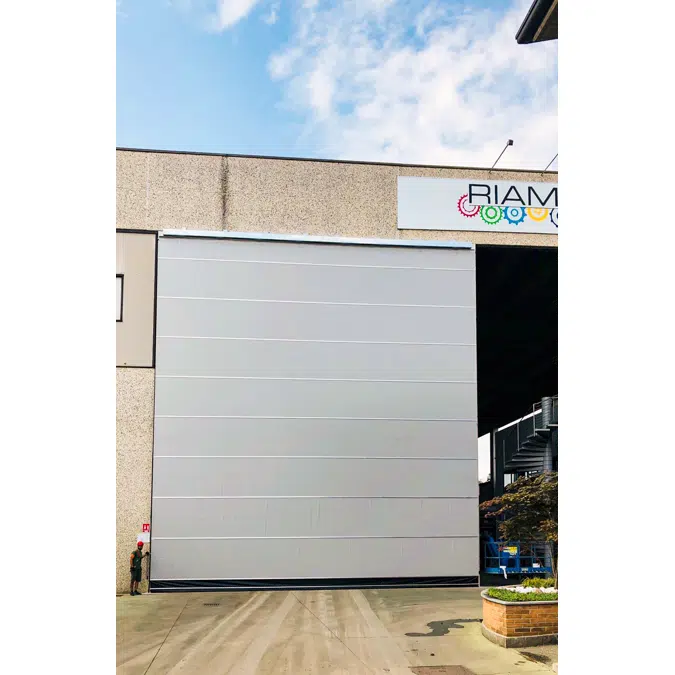

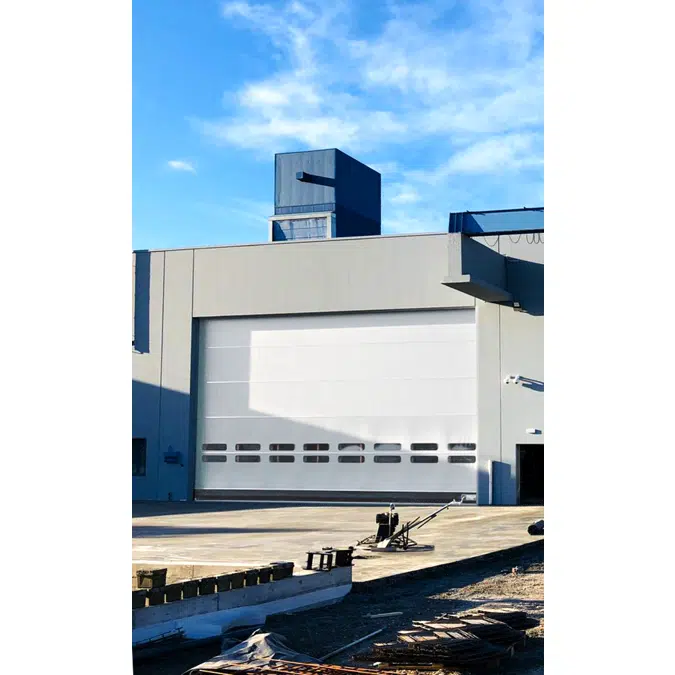

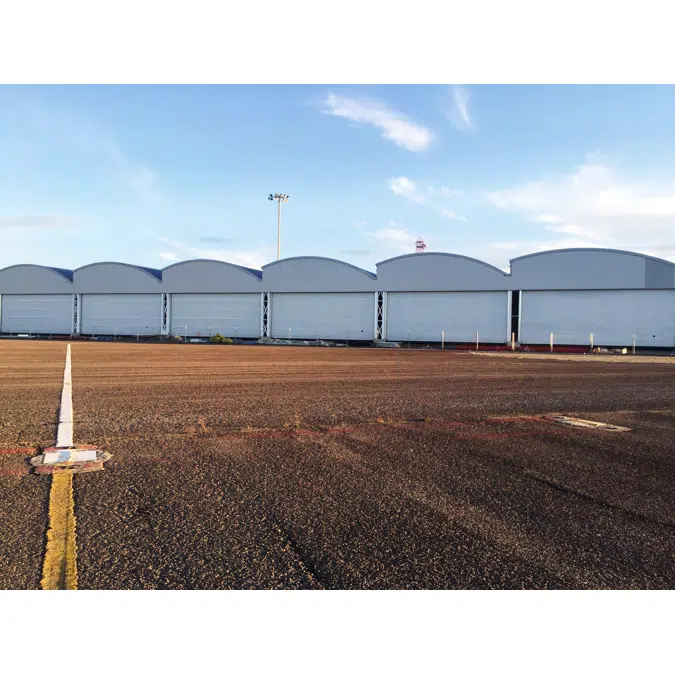

MEGAPACK fold up door has been designed for outdoor industrial environments, where there are large openings for hangars and shipyards. MEGAPACK industrial door guarantees long durability, energy saving and reliability with minimum maintenance. Each industrial door is individually designed to adapt to the building on which it is to be installed and guarantees excellent wind resistance thanks to the mantle formed by two polyester fabrics connected by horizontal aluminium trusses.

Specification

FEATURES
Maximum dimensions:
W 20.000 mm x H 15.000 mm
Speed:
Max opening speed up to 0,3 m/s
Closing speed 0,3 m/s
Wind resistance:
Up to Class 4 / higher classes on a project basis
Structure:
Not self-supporting
Frame / motor cover hood:
Standard:
Galvanized Steel
Curtain:
Standard:
PVC curtain fabric 900 gr/m²
Optional:
Insulated curtain PVC 1350 gr/m²
Control panel:
Standard:
Powder coated Steel box IP54 (400 x 500 x 2000 mm)
Optional:
the cabinet may be equipped with electro-mechanical system with possibility to be controlled by a PLC system
Contactors (50 Hz)
Power supply 3-ph, 400V
Power supply 24VAC for auxiliary accessories
Safeties:
Standard:
WiFi safety edge IP65
Emergency opening:
Standard: Mechanical
Advising operative temperature:
-30°C +70°C
Cycles (EN 12604):
1.000.000 (tested)
