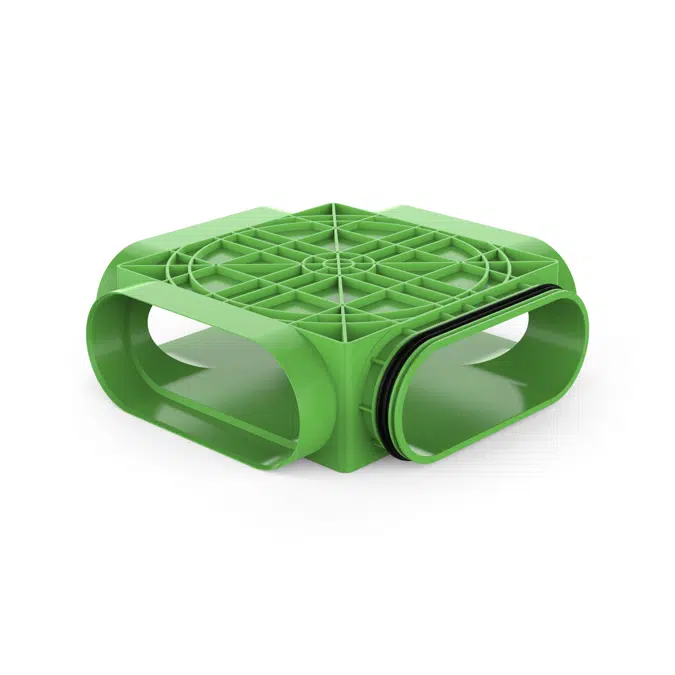

DucoFlex Manifold box (floor and ceiling) 3x oval

DucoFlex Manifold box (floor and ceiling) 3x oval

"The ceiling and floor manifold box can be used multifunctionally with 3 oval connexions (F) and 1 oval connection (M). This offers the possibility to connect it to the ceiling and floor manifold box 4x oval (F) and so expand to 6x oval connections (F)."

Specification

Compatible with DucoFlex D63 round and DucoFlex B163 x H68 oval air ducting
• “Click & Go” system ensures quick and airtight coupling
• Connections:
- 4 x oval
- 12x DucoFlex D63 round
- 2x DucoFlex B163 x H68oval
- 1 x DIN180 (Female)

Technical specification

Unique ref.ducoflex-vloer-en-plafondplenium-3x-oval
Product familyMechanical Ventilation
Product groupAccessories
TypeBuilding Materials
Date of publishing2022-05-18
Edition number1
Height (mm)68
Width (mm)225
Depth (mm)225

Links

Product urlhttps://www.duco.eu/uk-ie/products/mechanical-ventilation/ducoflex-ventilation-ducting
Instruction videohttps://www.youtube.com/watch?v=Lr94z8bo3bc
Technical descriptionhttps://www.duco.eu/Wes/CDN/1/Attachments/standard%20components_638288135489655318.zip

Related

Material mainABS
Material secondaryABS
Designed inBelgium
Manufactured inBelgium
Weight Net (Kg)0.39

Classification

BIMobject CategoryHVAC - Mechanical Ventilation
ETIM CodeEG015560
ETIM NameAccessories for flue gases and air

Region availability

Europe
Belgium
Netherlands
United Kingdom
