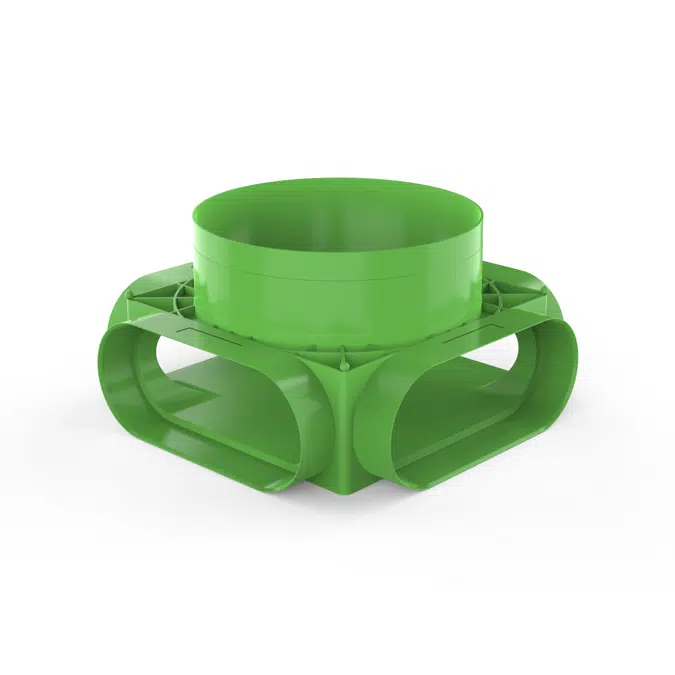

DucoFlex Manifold box (floor and ceiling) 4x oval D160

DucoFlex Manifold box (floor and ceiling) 4x oval D160

"The ceiling and floor manifold box can be used multifunctionally with 4 oval connexions (F) and a D160 riser duct. Combined with 3x DucoFlex D63, 2x DucoFlex D75 or 2x DucoFlex D90, it makes a floor/ceiling manifold box with up to a maximum of 12x DucoFlex D63 or 8x DucoFlex D90/ D75."

Specification

Compatible with DucoFlex D63, D75, D90 round and DucoFlex B163 x H68 oval air ducting
• “Click & Go” system ensures quick and airtight coupling
• Connections:
- 4 x oval
- 1 x DN 160

Technical specification

Unique ref.ducoflex-vloer-en-plafondplenium-4x-oval-d160
Product familyMechanical Ventilation
Product groupAccessories
TypeBuilding Materials
Date of publishing2022-05-18
Edition number1
Height (mm)118
Width (mm)225
Depth (mm)25

Links

Product urlhttps://www.duco.eu/uk-ie/products/mechanical-ventilation/ducoflex-ventilation-ducting
Instruction videohttps://www.youtube.com/watch?v=Lr94z8bo3bc
Technical descriptionhttps://www.duco.eu/Wes/CDN/1/Attachments/standard%20components_638288135489655318.zip

Related

Material mainPolyethylene
Material secondaryPolyethylene
Designed inBelgium
Manufactured inBelgium
Weight Net (Kg)0.41

Classification

BIMobject CategoryHVAC - Mechanical Ventilation
IFC classificationBuilding Element
ETIM CodeEG015560
ETIM NameAccessories for flue gases and air

Region availability

Europe
Belgium
Netherlands
United Kingdom
