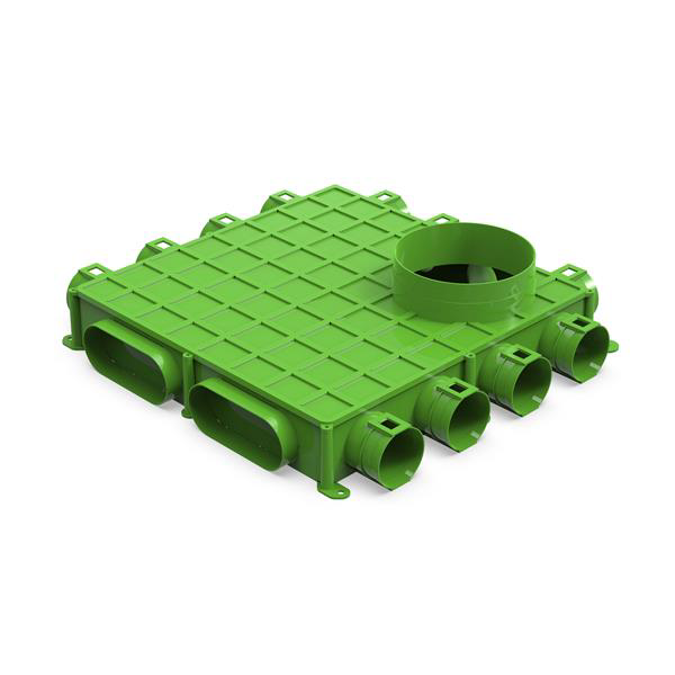

DucoFlex Manifold box (floor) 12x63 D180

DucoFlex Manifold box (floor) 12x63 D180

"The D180 floor manifold box is the adapter between a maximum of 12 DucoFlex D63 ducts and a direct connection to a D180 riser duct. The smart “Click & Go” system provides a quick and perfectly airtight joint between DucoFlex ducts."

Specification

Compatible with DucoFlex D63 round and DucoFlex B163 x H68 oval air ducting
• “Click & Go” system ensures quick and airtight joints
• Connections:
- 12x DucoFlex D63 round
- 2x DucoFlex B163 x H68 oval
- 1x DN180 (Female)

Technical specification

Unique ref.ducoflex-vloerplenum-12x63-d180
Product familyMechanical Ventilation
Product groupAccessories
TypeBuilding Materials
Date of publishing2022-05-18
Edition number1
Height (mm)133
Width (mm)560
Depth (mm)530

Links

Product urlhttps://www.duco.eu/uk-ie/products/mechanical-ventilation/ducoflex-ventilation-ducting
Instruction videohttps://www.youtube.com/watch?v=Lr94z8bo3bc
Technical descriptionhttps://www.duco.eu/Wes/CDN/1/Attachments/standard%20components_638288135489655318.zip

Related

Material mainABS
Material secondaryABS
Designed inBelgium
Manufactured inBelgium
Weight Net (Kg)3.25

Classification

BIMobject CategoryHVAC - Mechanical Ventilation
IFC classificationBuilding Element
ETIM CodeEG015560
ETIM NameAccessories for flue gases and air

Region availability

Europe
Belgium
Netherlands
United Kingdom
