EZSTLG8WSLK Elkay ezH2O® Bottle Filling Station & Versatile Bi-Level ADA Cooler High Efficiecny Non-Filtered Refrigerated Light Gray

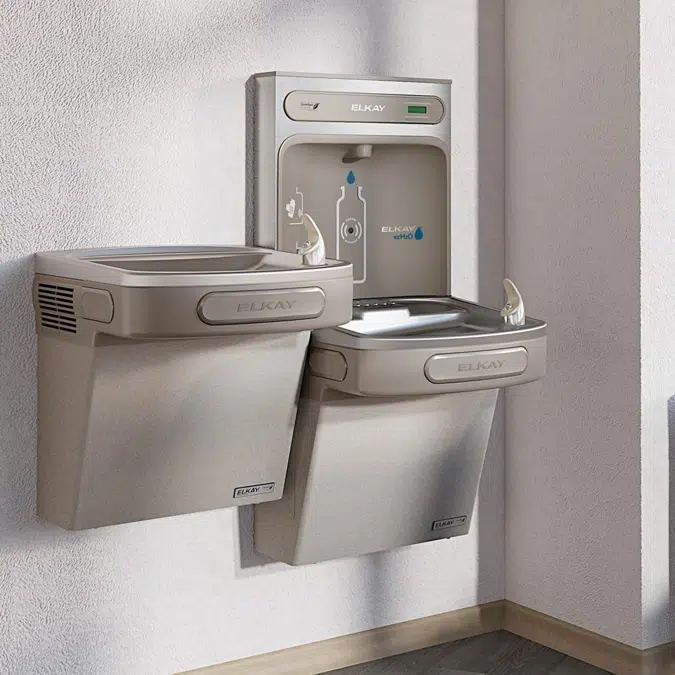

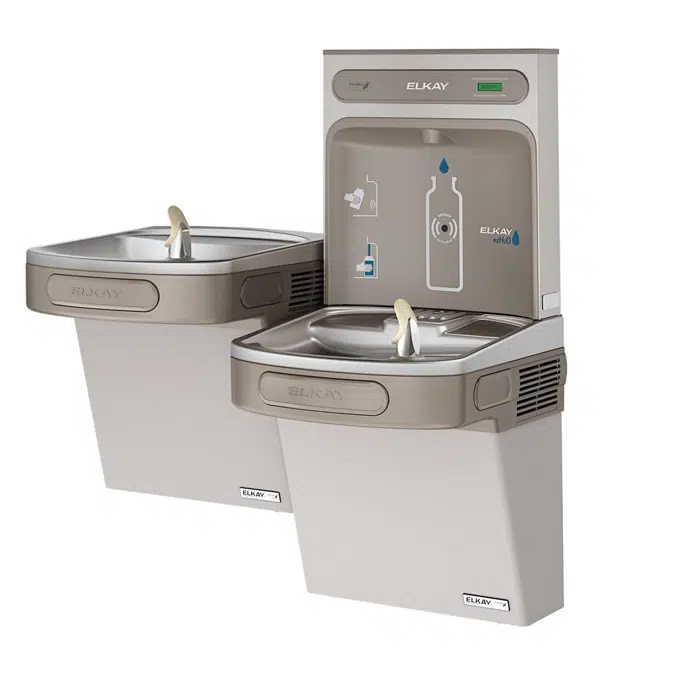

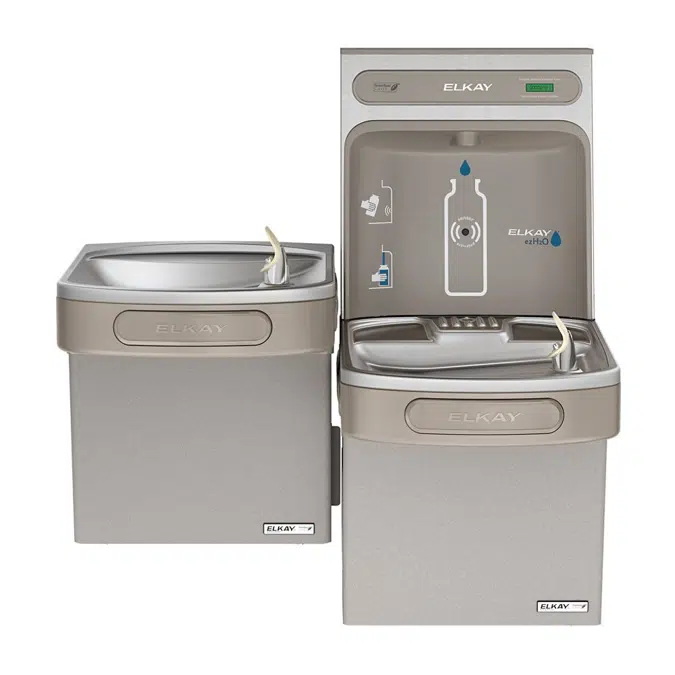

Elkay ezH2O Bottle Filling Station & Versatile Bi-Level ADA Cooler, High Efficiecny Non-Filtered Refrigerated Light Gray

Specification

Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).

Hermetically sealed refrigeration system provides chilled water to satisfy thirst.

Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.

High-performance compressor and insulation greatly reduce energy consumption.

Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.

Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.

Real drain system eliminates standing water.

Flexi-Guard StreamSaver bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms and reduce water waste.

GreenSpec listed and badged to demonstrate a commitment to sustainability.

Rated for indoor use.

Technical specification

Unique ref.EZSTLG8WSLK
Product familyBOTTLE FILLING STATION
Product groupEZ Family
TypeObject (single object)
Date of publishing2022-08-19
Edition number1
Height (inches)39.06
Width (inches)19

Links

Product urlhttps://www.elkay.com/products/details/ezstlg8wslk
Installation instructionshttps://www.elkayfiles.com/care-cleaning-install-warranty-sheets/1000001714.pdf
Instruction videohttps://www.youtube.com/embed/pWIbbglRjTo?rel=0
Technical descriptionhttps://www.elkayfiles.com/spec-sheets/ezstlg8wslk_spec.pdf

Related

Material mainStainless steel
Manufactured inUnited States

Classification

BIMobject CategorySanitary - Drinking fountains
CSI MasterFormat 2014 Code22 47 00
CSI MasterFormat 2014 TitleDrinking Fountains and Water Coolers
