Peak Design Booth

Unique ref.: A30_peak_design_booth_sound_absorbing_floor_screen
Brand: Götessons
Product family: Furniture
Product group: Office dividers
Height (mm): 1400
Depth (mm): 40
Date of publishing: 2019-02-05
Edition number: 1
Type: Object (single object)
Download (11)

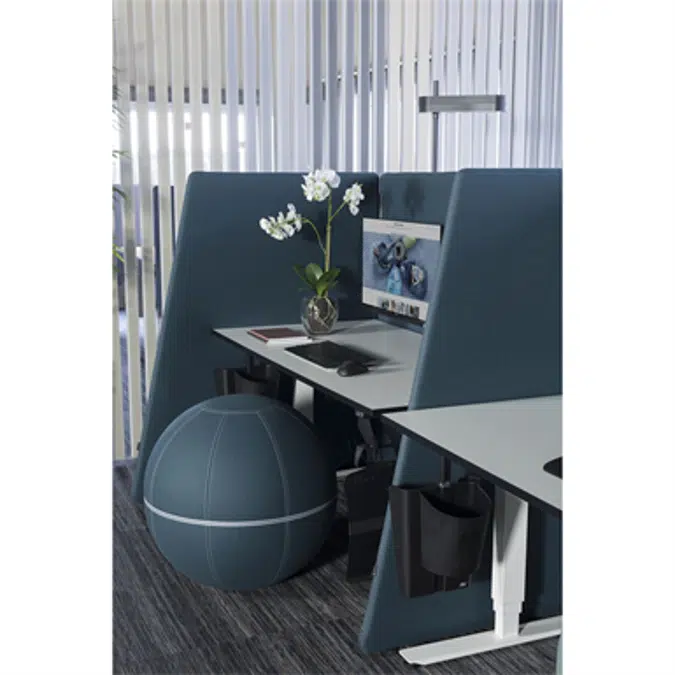

Peak Design Booth is a booth solution with a slight tilted side screen to create dynamics and openness. The booth is coupled with zipper and can therefore be built in infinity. The height is as standard 1400 mm and the side screens have two different depths either 850 mm or 1200 mm. Select screens in the same textile or in a color scale as below to create unique workplaces. Keep your desk clean and tidy both around and under by choosing a recessed cable grommet in the screens.
Available in more sizes. W:1400, W:1600, W: 1800

Available in more sizes. W:1400, W:1600, W: 1800

Specification text

Sound absorbing floor screen both made of wooden frame filled with 30 mm polyester sound absorbent and 5 mm foam laminated fabric on each side.

Total thickness: 40 mm. Measurements: (choose below). Rounded corners, radius 35. Feet in black included.

Dressed on both sides with: e.g. Lido 200 (132 toned). Seam round the whole screen in colour: e.g. red.



Certificate (valid 2019-06-03):

SS-EN 1023 Stability test, ISO 354 Absorption and SS 25269

Swan labeled with textiles (valid 2019-06-03): Event Screen +, Mica, Xpress, Cara, Rivet, Twist, Bond, Synergy, Remix 2

_______________________________________________________________________________________________

Standard measurements for front screens:

H: 1400 with W: 1200 || 1400 || 1600 || 1800

For customized measurements, contact Götessons.



Material main: Fabric
Material secondary: Fabric
Designed in: Sweden
Manufactured in: Sweden

BIMobject Category: Furniture - Acoustics
IFC classification: Furnishing Element
UNSPSC name: Furniture and Furnishings
UNSPSC code: 56
Uniclass 1.4 Code: L8211
Uniclass 1.4 Description: Furniture
Uniclass 2015 Code: Pr_40_50
Uniclass 2015 Description: Furnishings
CSI MasterFormat 2014 Code: 12 50 00
CSI MasterFormat 2014 Title: Furniture
CSI UniFormat II Code: E20
CSI UniFormat II Title: FURNISHINGS
This product is available in:
Europe
  • Sweden

BIMobject SEEK Properties

Furniture - Acoustics

Name Value
Material Fabric

COBie UK

UK.COBie.Type

UK.COBie.Type

This property set allows objects to be COBie UK BIM Level 2 classified

Name Value
Material Fabric
