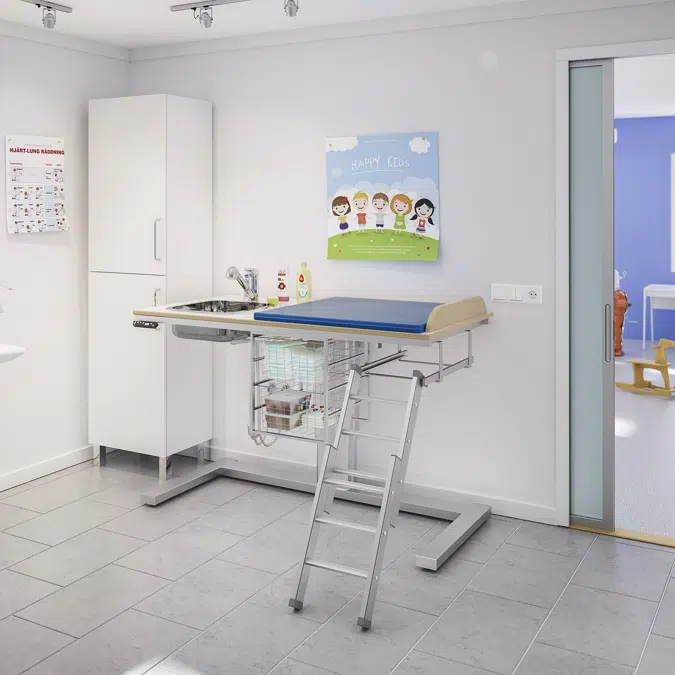

Changing table 332 laundry sink left - Ladder right, 140x80 cm

Baby changing table with an adjustable working height of 73 - 113 cm above the floor. The height can be adjusted quickly (3 cm/sec.) and is safe, because only the carer can set their working height. To lessen the heavy lifting required, there is an option to fit steps to the table so that the child can climb up themselves.

Functions and Advantages

Nursing table with laminate sheet 140 cm with mattress and laundry sink on left
Electrically height adjustable 73 - 113 cm above floor
Free-standing with adjustable feet
Easy-to-use programmable table control

Standard equipment

- Mattress
- 2 x storage baskets
- Extendable ladder
- Programmable table control
- Mixer with extendable hand shower
- Flexible water hoses
- Flexible drainage hose with water trap

Specification

Border height
55 mm

Width
1400 mm

Depth
800 mm

Installation
Freestanding

Height adjustment
730 - 1130 mm

Speed level
30 mm / sec.

Max. user weight
50 kg

Electrical connection
230 V ~ 50 Hz 230 VA (110 V available)

IP-class
IP20

Safety

Material
Motor unit: Anodised aluminium
Floor frame: Powder coated steel (Grey RAL 9006) with adjustable feet
Nursing table fittings: Sheet with white high-pressure laminate with solid birch moulding
Mattress: (WxDxH) 710x750x30 mm. Manufactured from phthalate-free artificial leather. Cover and cold foam certified as per Ökotex standard 100 class 1
Border: Solid clear varnished birch
Laundry sink: (WxD) 340x400 mm, 145 mm drawer Depth

Plumbing connections
Flexible water hoses and drain hose with water trap

Warranty
2 year

CE

Technical specification

Unique ref.k192
Product familyChanging tables
Product groupDaycare changing tables
TypeObject (single object)
Date of publishing2020-11-13
Edition number1
Width (mm)1400
Depth (mm)800

Links

Material mainSteel
Material secondaryLaminate
Designed inSweden
Manufactured inSweden

Classification

BIMobject CategoryFurniture - Furniture
IFC classificationFurnishing Element
UNSPSC nameFurniture and Furnishings
UNSPSC code56
OmniClass Number23-21 00 00
OmniClass TitleFurnishings, Fixtures and Equipment Products
CSI UniFormat II CodeE20
CSI UniFormat II TitleFURNISHINGS
