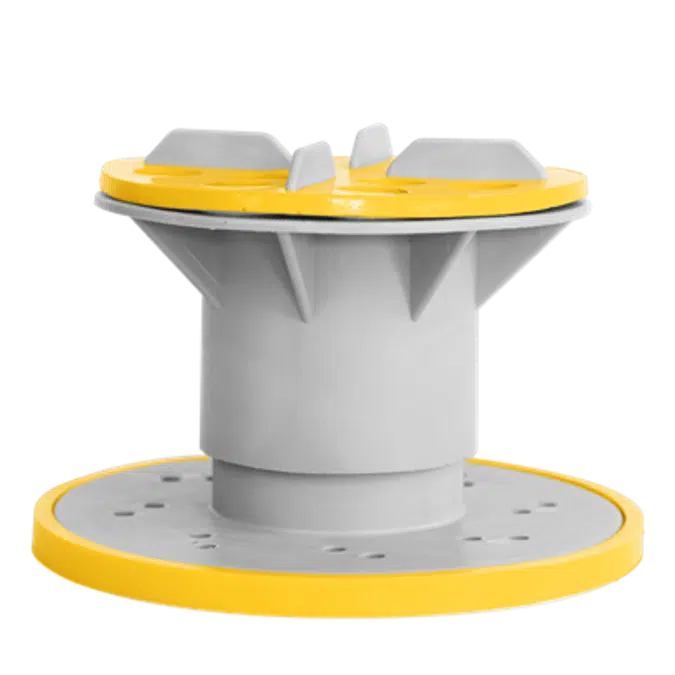

KnuckleHead Paver Support

Unique ref.: knucklehead-paver-support
Brand: Green Link Engineering
Product family: KnuckleHeads
Product group: Paver Support
Date of publishing: 2020-09-09
Edition number: 1
Type: Object (single object)
Download (2)

KnuckleHead Paver Supports are designed to support pavers, ballast stone and walkways. The KnuckleHead line is molded with glass-reinforced nylon which has aluminum like properties.  Glass-reinforced nylon is tough, weatherproof, UV stable, and impervious to freeze-thaw cycles.  Each KnuckleHead can support up to 600 pounds of weight.  The standard universal base is 7 inches in diameter, the optional Big Base is 12 inches in diameter and is recommended in free-standing applications over 12" in height.  The Paver KnuckleHead is height adjustable from 3.75- 4.85 inches in total height by rotating the head.  KnuckleHead extensions are available for applications exceeding this height.  The KnuckleHead line can free free-standing or mechanically attached using Green Link Adhesive/Sealant and/or fasteners.


Material main: Glass-Reinforced Nylon
Material secondary: Stainless steel
Designed in: United States
Manufactured in: United States

BIMobject Category: Construction - Roof Accessories
IFC classification: Roof
UNSPSC name: Roofing accessories
UNSPSC code: 301516
Uniclass 1.4 Code: L7815
Uniclass 1.4 Description: Pipe/duct supports
Uniclass 2.0 Code: PR-90-26-73
Uniclass 2.0 Description: Roof Equipment Supports
Uniclass 2015 Code: Pr_80_77_27_73
Uniclass 2015 Description: Roof equipment supports
NBS Reference Code: 90-26-73
NBS Reference Description: Roof Equipment Supports
CSI MasterFormat 2014 Code: 23 05 29
CSI MasterFormat 2014 Title: Hangers and Supports for HVAC Piping and Equipment
OmniClass Number: 23-13 41 19 11 13
OmniClass Title: Pedestals Roof Pavers
