hansgroheFollow

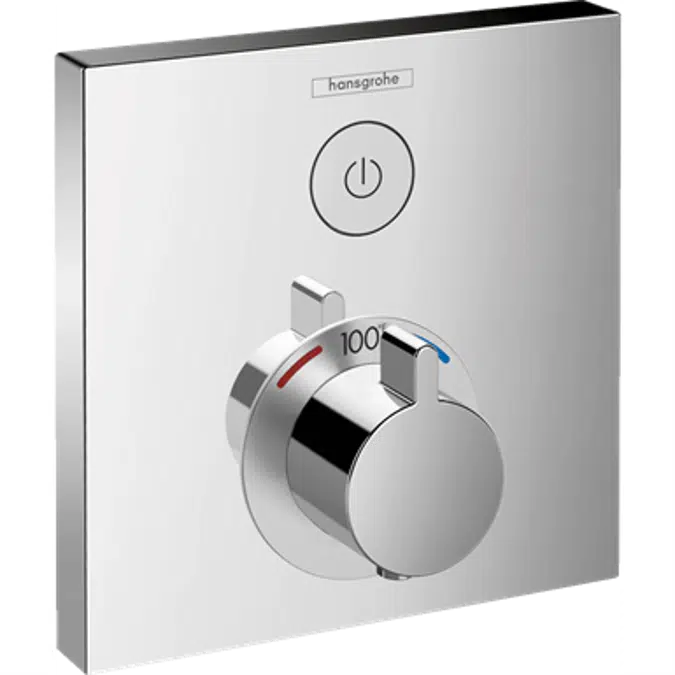

ShowerSelect Thermostat for concealed installation for 1 function

Specification

Specification

• Surfaces: - 15762141 Brushed Bronze - 15762671 Matt Black - 15762701 Matt White - 15762001 Chrome - 15762821 Brushed Nickel - 15762341 Brushed Black Chrome Specification: • Select push-button on/off control for 1 outlet • maximum flow rate at 3 bar: 26,5 l/min • thermostat cartridge, Start/stop valve to operate the functions • safety lock at 40 °C • temperature limitation adjustable • non-return valve • with silencer • suitable for continous flow water heaters • optimized for water-efficient shower products • connection type: basic set • dirt filter included • Thermostat is delivered with button On/Off

Technical specification

Technical specification

• Unique ref.15762001
• Product familyShower thermostat
• Product groupShowerSelect
• TypeObject (single object)
• Date of publishing2022-11-23
• Edition number1
• Height (mm)155
• Width (mm)155
• Depth (mm)162

Links

Links

• Product urlhttps://www.hansgrohe.com/articledetail--15762141

Related

Related

• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)1.4

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011329
• ETIM NameShower mixing tap
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
