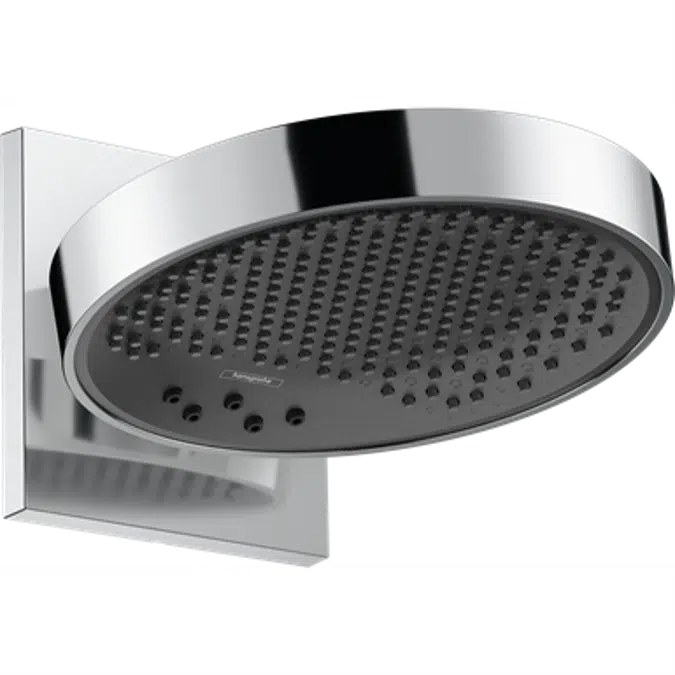

Rainfinity Overhead shower 250 3jet 2.5 GPM with wall connector and green diverter bundle

Specification

Specification

• Surfaces: - 26232671 Matt Black - 26232001 Chrome - 26232701 Matt White - 26232821 Brushed Nickel Specification: • consists of: overhead shower, wall connector, green diverter • shower head size: 250 mm • spray type: PowderRain, Intense PowderRain, RainStream • Select button on thermostat • projection 273 mm • middle spray disc: 151 mm • frame: metal • material spray disc: aluminium • spray disc surface: graphite • shower arm vertically inclinable by 10-30° • maximum flow rate at 3 bar: 9,5 l/min • the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets • overhead shower removable for cleaning • installation: wall-mounted - for installation on iBox • not suitable for continuous flow water heaters

Technical specification

Technical specification

• Unique ref.26232001
• Product familyOverhead showers
• Product groupRainfinity
• TypeObject (single object)
• Date of publishing2022-11-23
• Edition number1
• Height (mm)6.6
• Width (mm)9.88
• Depth (mm)10.75

Links

Links

• Product urlhttps://www.hansgrohe-usa.com/articledetail--26232671

Related

Related

• Material mainChrome
• Designed inGermany
• Manufactured inGermany
• Weight Net (Kg)5.1

Classification

Classification

• BIMobject CategorySanitary - Showers
• IFC classificationSanitary Terminal
• ETIM CodeEC011383
• ETIM NameShower head
• UNSPSC nameShowers
• UNSPSC code30181503
• Uniclass 2015 CodePr_40_20_87_76
• Uniclass 2015 DescriptionShower heads
• CSI MasterFormat 2014 Code22 41 23
• CSI MasterFormat 2014 TitleResidential Showers
• OmniClass Number23-31 17 00
• OmniClass TitleShowers
• CSI UniFormat II CodeD2010
• CSI UniFormat II TitlePlumbing Fixtures
