CERAPLAN SHOWER MIXER EXPOSED SWISS

CERAPLAN SHOWER MIXER EXPOSED SWISS

CERAPLAN SHOWER MIXER EXPOSED SWISS

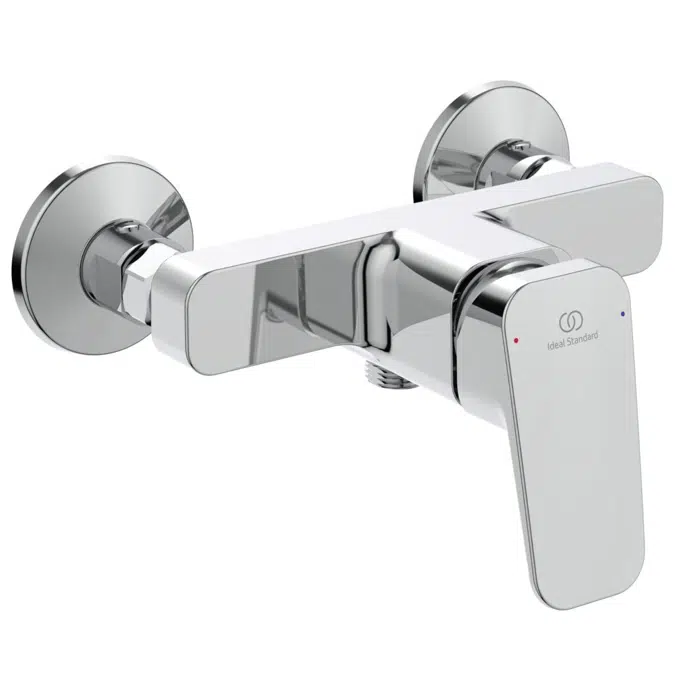

Exposed sinlge lever shower mixer wall, surface-mounted.

Specification

Single lever handel 12 litres per minute 3 bars Comply with DIN EN 817, DIN EN 200, DIN 4109 group 1

Technical specification

Unique ref.BD271
Product familySanitary
Product groupMixer taps
TypeObject (single object)
Date of publishing2021-09-21
Edition number1

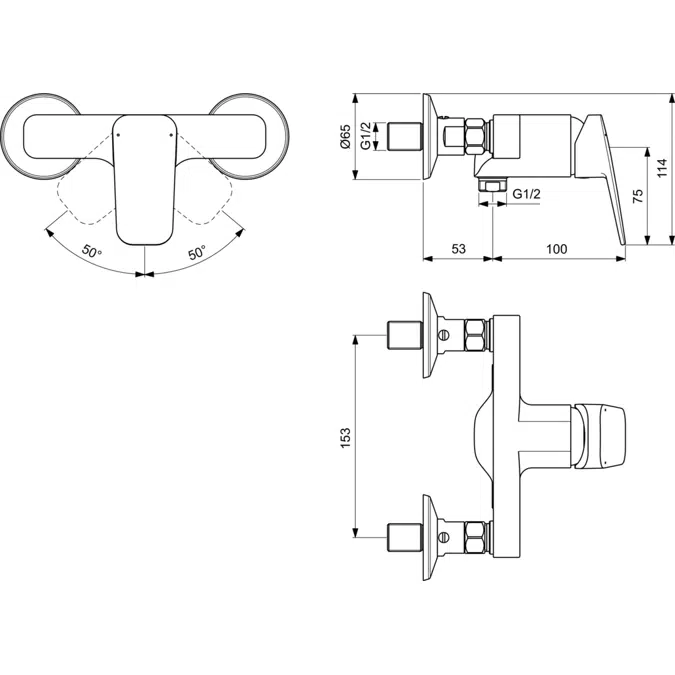

Height (mm)150
Width (mm)185
Depth (mm)190

Links

Product urlhttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/shower-mixers
Installation instructionshttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/shower-mixers
Instruction videohttps://www.youtube.com/channel/UCvNSaQtCSTKdF6hNa_Cs8eQ
Product certificationhttps://www.idealstandard.co.uk/about-us/contact-service
Technical descriptionhttps://www.idealstandard.co.uk/products/catalog/taps-and-mixers/shower-mixers

Related

Material mainBrass
Weight Net (Kg)1.71

Classification

BIMobject CategorySanitary - Taps/Faucets/Brassware
IFC classificationSanitary Terminal
ETIM CodeEG017610
ETIM NameSanitary taps
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87_78
Uniclass 2015 DescriptionShower manual water supply sets
OmniClass Number23-31 11 00
OmniClass TitleFaucets

Region availability

Europe
France
Germany
Italy
Netherlands
Poland
Russia
Spain
United Kingdom
