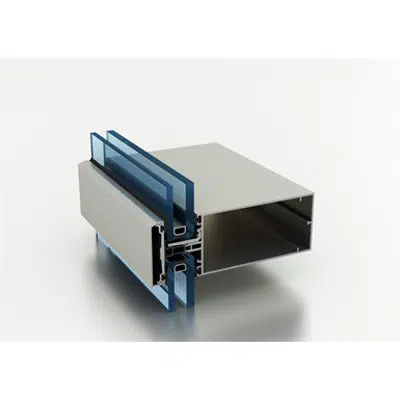

interal CURTAIN WALL MN50 MULLIONS
interal CURTAIN WALL MN50 MULLIONS
    Archived

    interal CURTAIN WALL MN50 MULLIONS

    MN50 curtain wall  system is a stick system that enhances visual appearance of your structure and never allows for water penetration into the structure thanks to its micro condensation characterictics and allows for wide openning applications with profile options having diverse depths. With 18 different mullion methods, customized cosf effective options could be offered for your project.

    Specification
      • Micro condensation channels,
      • High water insulation
      • High thermal insulation
      • Low consumption of aluminum,
      • Binned mounting option,
      • The flat mounting option,
      • Project-specific mullion/transom profile option  (18 units),
      • Hidden locking option,
      • Possibility to glass up to 20mm-50mm,
      • The water discharge tube system or direct discharge system option,
      • 50 mm body width,
      • EPDM air, water and dust sealing wicks,
      • Successfully completed performance tests,
      • Production of QUALANOD and QUALICOAT certified profiles in all RAL colors and anodized options,
      • Static and heat diagrams that facilitate all selection and ordering process
    Technical specification
    • Unique ref.interal_CW_MN50_MULLIONS
    • Product familyCurtain Wall Systems
    • Product groupMN50
    • TypeObject (single object)
    • Date of publishing2020-07-21
    • Edition number1
    • Height (mm)50
    • Width (mm)50
    Related
    • Material mainAluminum
    • Material secondaryGlass
    • Designed inTürkiye
    • Manufactured inTürkiye
    Classification
    • BIMobject CategoryWalls - Curtain wall
    • IFC classificationCurtain Wall
