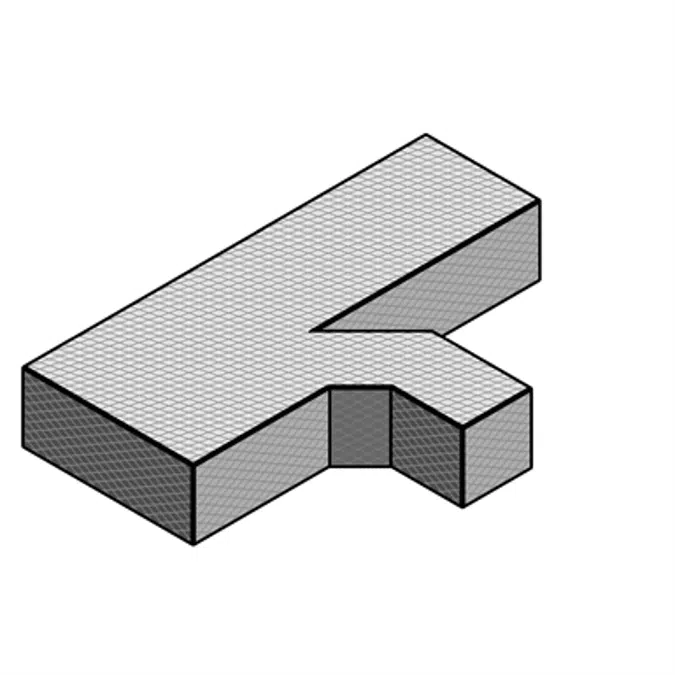

CLIMAVER Rectangular T Simple Ramification

CLIMAVER rectangular T simple ramification conformed by Straight Section Method with high-density, non-hydrophilic ISOVER glass wool panel coated on the outside with an aluminum foil reinforced with kraft paper and glass mesh, which acts as a steam barrier (Thickness: 40mm) and CLIMAVER NETO (Thickness: 25mm), with a reinforced fabric with black of high mechanical resistance. In the case of CLIMAVER PLUS R (Thickness: 25mm), the inner lining is an aluminum foil reinforced with kraft paper

Specification

CLIMAVER rectangular T simple ramification conformed by ISOVER CLIMAVER NETO, CLIMAVER APTA or CLIMAVER PLUS R Mineral Wool Method consisting of high density ISOVER glass wool rigid panels, coated on the outside with an aluminum foil reinforced with paper Kraft and glass mesh, which acts as a steam barrier, and on the inside face, in the case of CLIMAVER APTA (Thickness: 40mm) and CLIMAVER NETO (Thickness: 25mm), with a reinforced colored glass net fabric Black with high mechanical resistance. In the case of CLIMAVER PLUS R (Thickness: 25mm), the inner lining is an aluminum foil reinforced with kraft paper. Complying with the standard UNE EN 14303 Products Thermal insulation for building equipment and industrial installations with a thermal conductivity of 0.032 to 0.038 W / (m • K), fire reaction class B-s1, d0 and designation code MW-EN 14303 -T5-MV1

Technical specification

Unique ref.CLIMAVER_rectangular_T_simple_ramification
Collection setConductos Climatización
CollectionMineral Wool
TypeObject (single object)
Date of publishing2017-03-29
Edition number1

Links

Product urlhttps://www.isover.es/productos-isover/productos-climatizacion/conductos-autoportantes-climaver
Installation instructionshttps://www.isover.es/sites/isover.es/files/assets/documents/manual_montaje_climaver_2015.pdf
Instruction videohttps://www.youtube.com/watch?v=ree1B_xSpRE&t=82s
Product certificationhttps://www.isover.es/sites/isover.es/files/assets/documents/es0002_016esclimaver_neto_2017.pdf
Technical descriptionhttps://www.isover.es/sites/isover.es/files/assets/documents/climaver_neto_esp.pdf

Material mainMineral wool
Material secondaryAluminum
Designed inSpain
Manufactured inSpain

Classification

BIMobject CategoryHVAC - Ductwork
IFC classificationDuct Fitting
